Rittal 7979104 PDU basic - EN 62368-1 compliance
Part Number: 7979104
Manufacturer
Rittal
Part number
7979104
Category
Alt Part Number
DK 7979.104
Quick Summary
Rittal 7979104 PDU basic is a compact power distribution unit designed for IT racks in data centers and industrial IT cabinets. This solution addresses the challenge of packing reliable, standards-compliant power distribution into tight rack spaces. It carries critical safety and compliance marks, including EN 62368-1 and the EMC Directive, ensuring safe operation around sensitive IT equipment. The design supports CE conformity and integrates seamlessly with VX IT and TS IT enclosures, enabling efficient, scalable deployments. By pairing a robust aluminium chassis with flexible mounting options, it delivers dependable power distribution while helping you reduce installation time and total cost of ownership.
Product Information
Extended Description

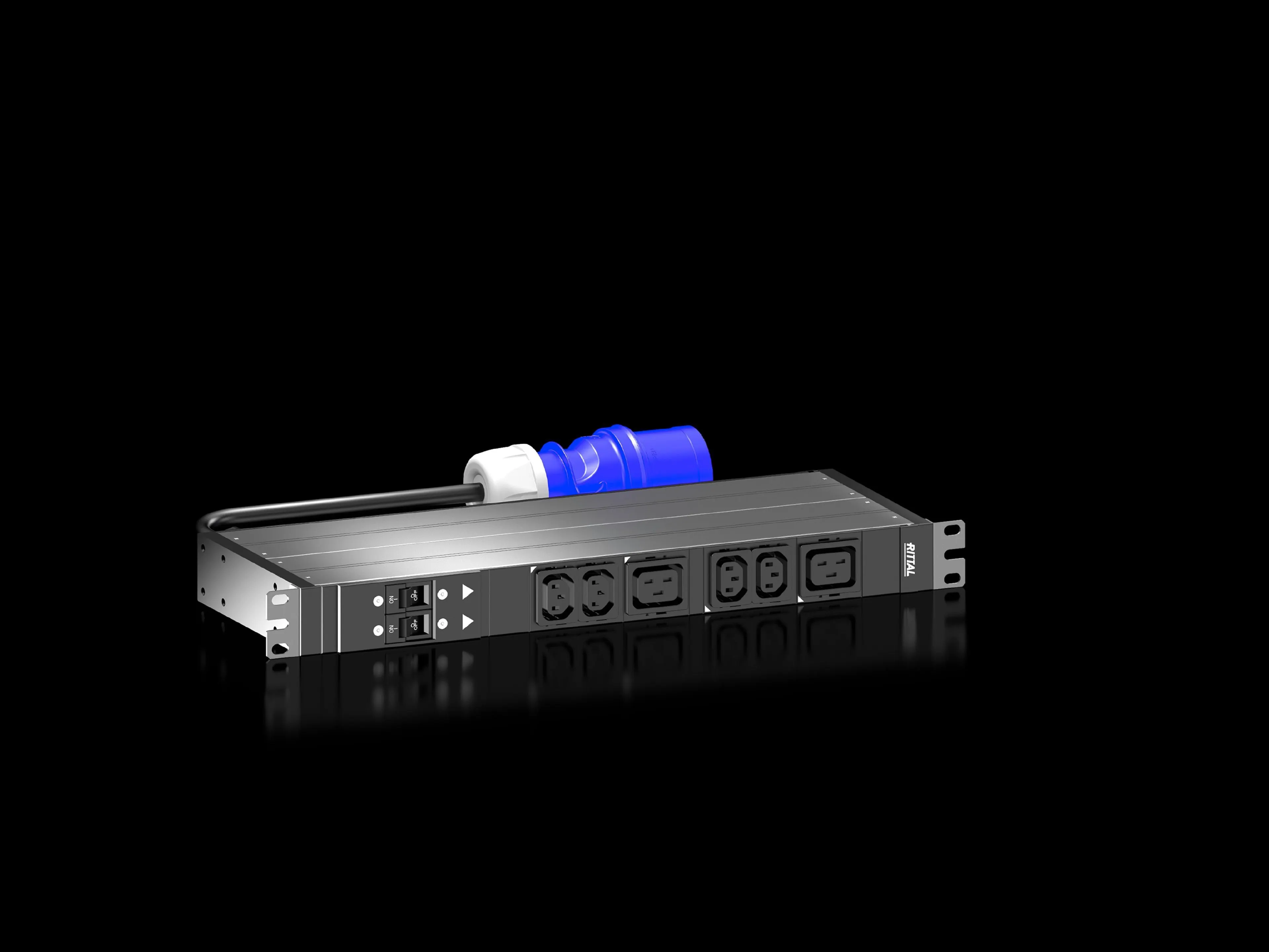

7979104 Rittal: DK PDU basic, compact basic power distribution, WHD: 44x450x144, IEC 60320: 4 x C13, 2 x C19, 230 V, 1~, 16 A
Article number
DK 7979.104
Design
482.6 mm (19") version
Product description
Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Material
Extruded aluminium section, anodised | Slots: Plastic
Supply includes
Connector lock for IEC C14 and C20 connectors | Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Other enclosure colours are available
Dimensions
Height: 44 mm | Depth: 144 mm | Length: 450 mm
No. of sockets and type
4 x C13 / 2 x C19
Rated operating voltage
230 V (AC)
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 800 mm | Enclosure type: TX CableNet: ≥ 800 mm
Packs of
1 pc(s).
Weight/pack
3.32 kg
Customs tariff number
85366990
EAN
4028177947375
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU basic, compact basic power distribution, WHD: 44x450x144, IEC 60320: 4 x C13, 2 x C19, 230 V, 1~, 16 A
Feature: Compact 482.6 mm (19") design supports 44x450x144 WHD. Business Impact: Maximizes rack density and simplifies integration in multi-rack environments. Application: Ideal for modern IT racks where space is at a premium and clean cable management is essential. The design reduces footprint while maintaining full 32 A capacity. Feature: 4 x C13 and 2 x C19 outlets with 230 V, 1~, 32 A. Business Impact: Enables flexible load distribution for mixed IT and network equipment with predictable power availability. Application: Suitable for data center row deployments and network closets requiring diverse outlet types. Feature: 3 m connection cable with CEE electrical connection. Business Impact: Simplifies room-to-rrack wiring, reducing installation time and potential wiring errors. Application: Fast deployment in VX IT or TX CableNet systems. Feature: Tool-free zero-U vertical mounting option in VX IT or TS IT racks. Business Impact: Saves space and accelerates upgrades by allowing installation in unused vertical space. Application: Data centers seeking rapid refresh cycles without chassis rework. Feature: Optional Type 3 overvoltage protection with interchangeable arresters. Business Impact: Enhances equipment safety and reduces risk of damage from surges. Application: Critical in environments with variable mains quality or long feeders. Feature: Robust aluminium extrusion with anodised finish and integrated connector lock. Business Impact: Delivers durable, vibration-resistant performance in rack cabinets with easy maintenance. Application: Industrial IT installations where ruggedness and longevity matter.
Get a Quick Quote for a Rittal 7979104
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979104?
Enquire Now
FAQs
The DK 7979.104 PDU basic is designed for VX IT enclosures and supports vertical mounting in zero-U spaces. It fits 19" racks, uses a 3 m CEE cable, and includes assembly parts with a connector lock, enabling tool-free alignment and secure integration into standard VX IT frames.
Key specs include 230 V (AC) operation, a rated current of 32 A, and a maximum power of 7.4 kW. It provides 4 x C13 and 2 x C19 outlets, with a 3 m connection lead and a single infeed. This combination supports mixed equipment loads while maintaining safe voltage and current margins.
Yes, there is an optional Type 3 overvoltage protection with interchangeable arresters, which can be integrated into the PDU enclosure to monitor and protect connected equipment during transient events, helping to reduce device failure risk in fluctuating mains conditions.
The product adheres to EMC Directive 2014/30/EU and EN 62368-1 safety standards, with CE marking for compliance. This combination provides assurance for both electrical safety and electromagnetic compatibility in professional IT environments.
Zero-U mounting allows the PDU to be attached within the vertical space of VX IT or TS IT racks without consuming rack face space, simplifying staggered upgrades and enabling higher density configurations while preserving rear access for cabling and maintenance.
