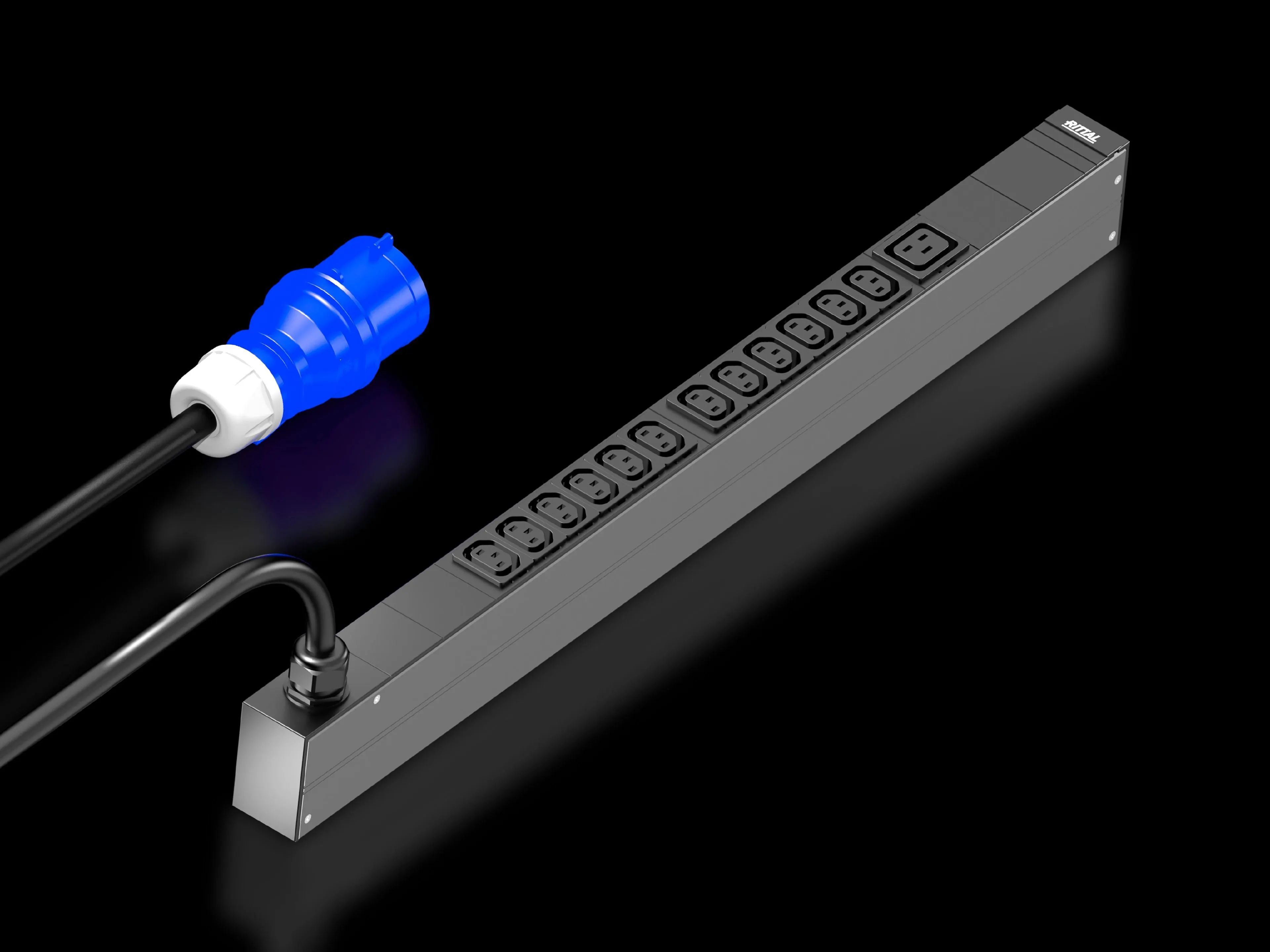

Rittal 7979110 PDU basic - 12xC13 + 1xC19
Part Number: 7979110
Manufacturer
Rittal
Part number
7979110
Category
Alt Part Number
DK 7979.110
Quick Summary
Rittal 7979110 PDU basic powers IT racks with compact, reliable distribution for data centers. In dense IT cabinets, limited space and mounting options can slow deployment and increase TCO. It complies with EMC Directive 2014/30/EU and EN 62368-1, delivering safety and interoperability across mixed equipment. Designed for VX IT and 19 inch racks, it provides easy horizontal or vertical mounting and scalable power distribution for growing IT deployments.
Product Information
Extended Description
7979110 Rittal: PDU basic 16A/1P CEE 12xC13+1xC19, DK PDU basic, Compact basic power distributor, WHD: 44x695x70, IEC 60320: 12 x C13, 1 x C19
Article number
DK 7979.110
Product description
Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Material
Extruded aluminium section, anodised | Slots: Plastic
Supply includes
Connector lock for IEC C14 and C20 connectors | Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Other enclosure colours are available
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 695 mm
No. of sockets and type
12 x C13 / 1 x C19
Rated operating voltage
230 V (AC)
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,200 mm | Enclosure type: TX CableNet: ≥ 1,200 mm
Packs of
1 pc(s).
Weight/pack
2.2 kg
Customs tariff number
85366990
EAN
4028177947382
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
PDU basic 16A/1P CEE 12xC13+1xC19, DK PDU basic, Compact basic power distributor, WHD: 44x695x70, IEC 60320: 12 x C13, 1 x C19
12 x C13 outlets plus 1 x C19 provide broad compatibility for mainstream IT gear, reducing the need for adapters and simplifying cable management. This arrangement supports servers, switches, and storage devices while keeping space tidy in crowded racks. A three meter connection cable and a single infeed on a 230 V supply minimize wiring complexity and voltage drop, supporting clean rack layouts and predictable power delivery. Horizontal mounting at the 19 inch level or vertical mounting in zero U spaces within VX IT and TS IT frames reduces footprint and speeds installation, with tool-free options for some configurations. Optional Type three overvoltage protection with interchangeable arresters enhances equipment safety while monitoring status supports proactive maintenance. The extruded aluminium housing and anodised finish provide durability in rack environments, with a weight of two point two kilograms per pack and compact WHD dimensions for tight data center spaces. Compliance with EMC directives and EN 62368-1, plus VX IT enclosure compatibility, ensures straightforward integration into existing IT ecosystems, improving reliability and total cost of ownership.
Get a Quick Quote for a Rittal 7979110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979110?
Enquire Now
FAQs
The PDU basic supports horizontal mounting at the standard 19 inch level and vertical mounting, including zero U space integration, allowing flexible placement inside VX IT frames for compact rack layouts.
It includes twelve C thirteen outlets and one C nineteen outlet, along with a connector lock for IEC C fourteen and C twenty connectors, plus a three meter connection cable for streamlined wiring.
Yes, vertical mounting in zero U spaces is supported in VX IT and TS IT racks, enabling use of the available space without tools in compatible enclosures.
The PDU basic complies with EMC Directive two thousand fourteen thirty EU and EN six two three six eight one, ensuring safety and interoperability in modern IT environments.
It is rated for sixteen amperes at two hundred thirty volts (maximum about three point seven kilowatts) and operates from five to fifty degrees Celsius with ten to ninety five percent non-condensing humidity.
