Rittal 7979112 PDU basic - EN 62368-1, 230V/32A
Part Number: 7979112
Manufacturer
Rittal
Part number
7979112
Category
Alt Part Number
DK 7979.112
Quick Summary
PDU basic from Rittal provides compact, reliable power distribution for IT racks in data centers and server rooms. Engineers often struggle with space constraints and mounting flexibility in zero-U spaces. It complies with the EMC Directive 2014/30/EU and EN 62368-1, with CE certification for IT environments. As a compact IT rack power distributor, it supports vertical mounting in VX IT frames and zero-U deployment, unlocking scalable energy management and space efficiency. This solution also reduces installation time and simplifies cabling in dynamic IT environments, helping procurement cut total cost of ownership while improving uptime. It also enables standardized, repeatable deployments across multiple sites, reducing risk and ensuring consistent performance.
Product Information
Extended Description

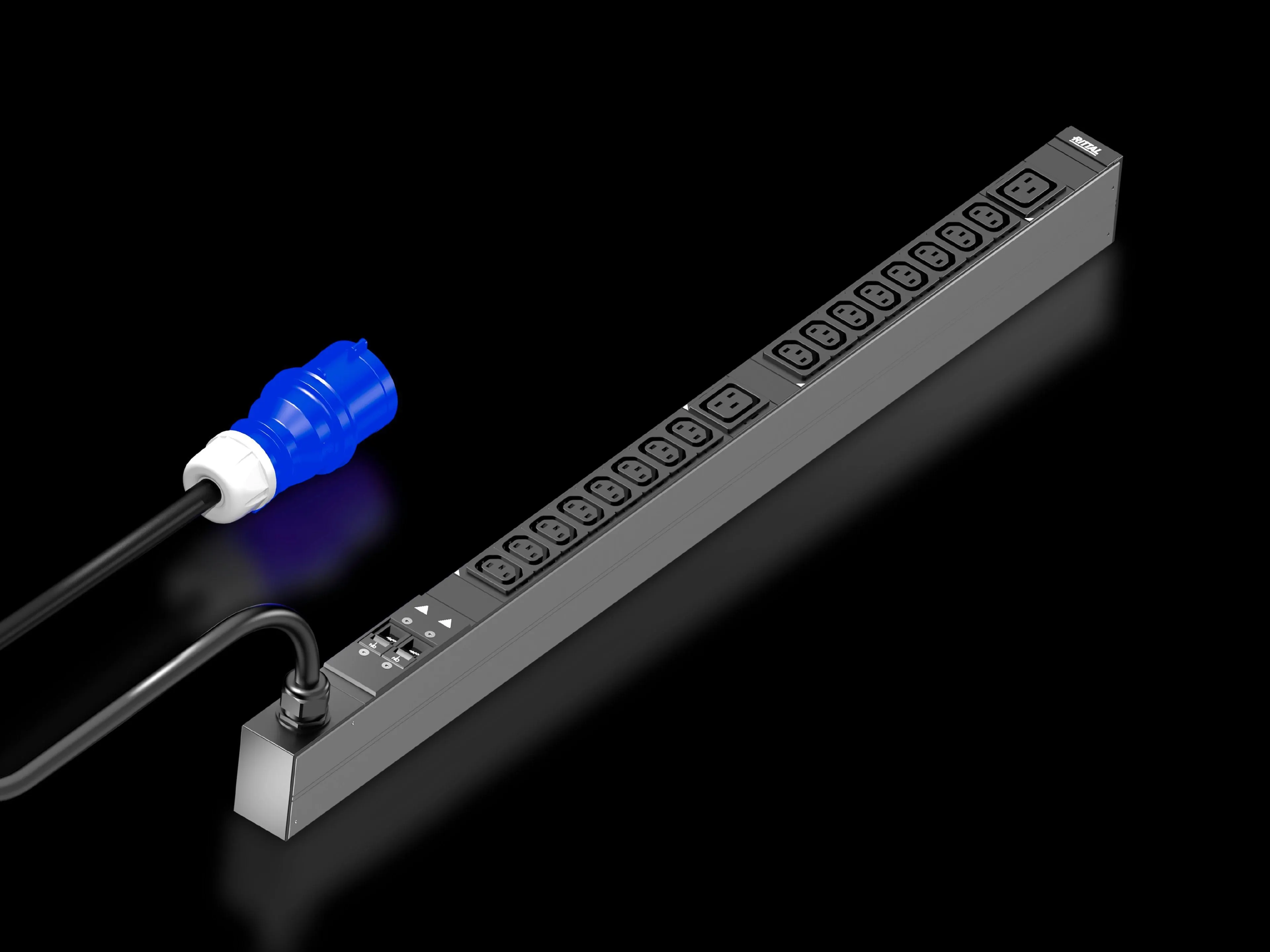

7979112 Rittal: PDU basic 32A/1P CEE 16xC13+2xC19, DK PDU basic, Compact basic power distributor, WHD: 44x845x70, IEC 60320: 16 x C13, 2 x C19
Article number
DK 7979.112
Product description
Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Material
Extruded aluminium section, anodised | Slots: Plastic
Supply includes
Connector lock for IEC C14 and C20 connectors | Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Other enclosure colours are available
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 845 mm
No. of sockets and type
16 x C13 / 2 x C19
Rated operating voltage
230 V (AC)
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,200 mm | Enclosure type: TX CableNet: ≥ 1,200 mm
Packs of
1 pc(s).
Weight/pack
3.52 kg
Customs tariff number
85366990
EAN
4028177947412
ETIM 8
EC002762
ETIM 7.0
EC000330
ECLASS 8.0
27142604
Product description
PDU basic 32A/1P CEE 16xC13+2xC19, DK PDU basic, Compact basic power distributor, WHD: 44x845x70, IEC 60320: 16 x C13, 2 x C19
The PDU basic packs a 32 A, 1P CEE input with 16x C13 and 2x C19 outlets, all integrated in a compact 44 mm wide, 70 mm deep, 845 mm long aluminium enclosure. Business impact: this footprint minimizes rack space usage, simplifies cable routing, and supports clean power distribution in dense IT environments. Application: ideal for VX IT frames and standard 19" racks in data centers and edge facilities. Vertical mounting capability, including zero-U installation, reduces the need for extra hardware and enables quick reconfigurations. Business impact: faster deployments cut on-site labor and downtime, improving time-to-value for IT refresh cycles. Application: scalable installations in VX IT and TS IT rack configurations. Cable and connectors: 3 m length of connection cable with CEE input and a supply lock for IEC C14/C20 ensures secure, repeatable power connections. Business impact: coherent cable management lowers strain, simplifies cooling, and reduces service calls. Application: data centers, edge rooms, and multi-rack IT closets. Protection and monitoring: Type 3 overvoltage protection with interchangeable arresters and optional status monitoring can be integrated into the PDU enclosure. Business impact: minimizes risk of equipment damage from surges and allows proactive maintenance. Application: servers, storage, and network gear in mission-critical cabinets. Durability and compliance: extruded aluminium anodised housing with plastic slots, weight 3.52 kg, rated 230 V, 32 A and 7.4 kW. Business impact: robust, light enough for installation in varied environments and easy to service. Application: frequent re-racking and cross-site deployments in enterprise IT and data centers.
Get a Quick Quote for a Rittal 7979112
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979112?
Enquire Now
FAQs
Yes. The PDU basic supports vertical mounting in zero-U spaces and is designed for VX IT frames, VX IT enclosure frames, and TX CableNet configurations, enabling tool-free or minimal hardware installation that preserves valuable rack space.
The unit operates at 230 V (AC) with a rated current of 32 A and a maximum power of 7.4 kW. It provides 16x C13 outlets and 2x C19 outlets, powered via a 3 m CEE lead and one infeed per unit.
Yes. Its compact aluminium chassis, vertical mounting capability, and 3 m lead make it ideal for dense data centers, edge computing racks, and server rooms where space and reliability are critical.
The DK 7979.112 PDU basic is compliant with EMC Directive 2014/30/EU and EN 62368-1, and carries CE marking for IT equipment, supporting regulatory compliance across IT environments.
Tool-free or minimal hardware mounting and the option for Type 3 overvoltage protection with status monitoring reduce downtime and maintenance costs. Space savings improve rack density, while robust construction lowers replacement and service costs over the product lifespan.
