Rittal DK 7979.113 PDU Basic 32A/1P EN 62368-1
Part Number: 7979113
Manufacturer
Rittal
Part number
7979113
Category
Alt Part Number
DK 7979.113
Quick Summary
PDU basic powers IT racks with compact distribution for data centers and network closets. Many deployments struggle with limited space, awkward zero-U mounting, and tangled cabling that slows deployment and increases risk. This solution is designed to fit VX IT and TS IT systems, offering vertical or horizontal mounting and tool-free installation where possible. It meets EMC Directive 2014/30/EU and EN 62368-1 with CE marking, ensuring regulatory compliance in critical environments. For IT managers, the business value comes from predictable power delivery, simplified cable routing, and scalable configurations that support growing rack density. Use cases span server rooms, edge data centers, and telecom cabinets, with a compact footprint that preserves valuable rack space.
Product Information
Extended Description

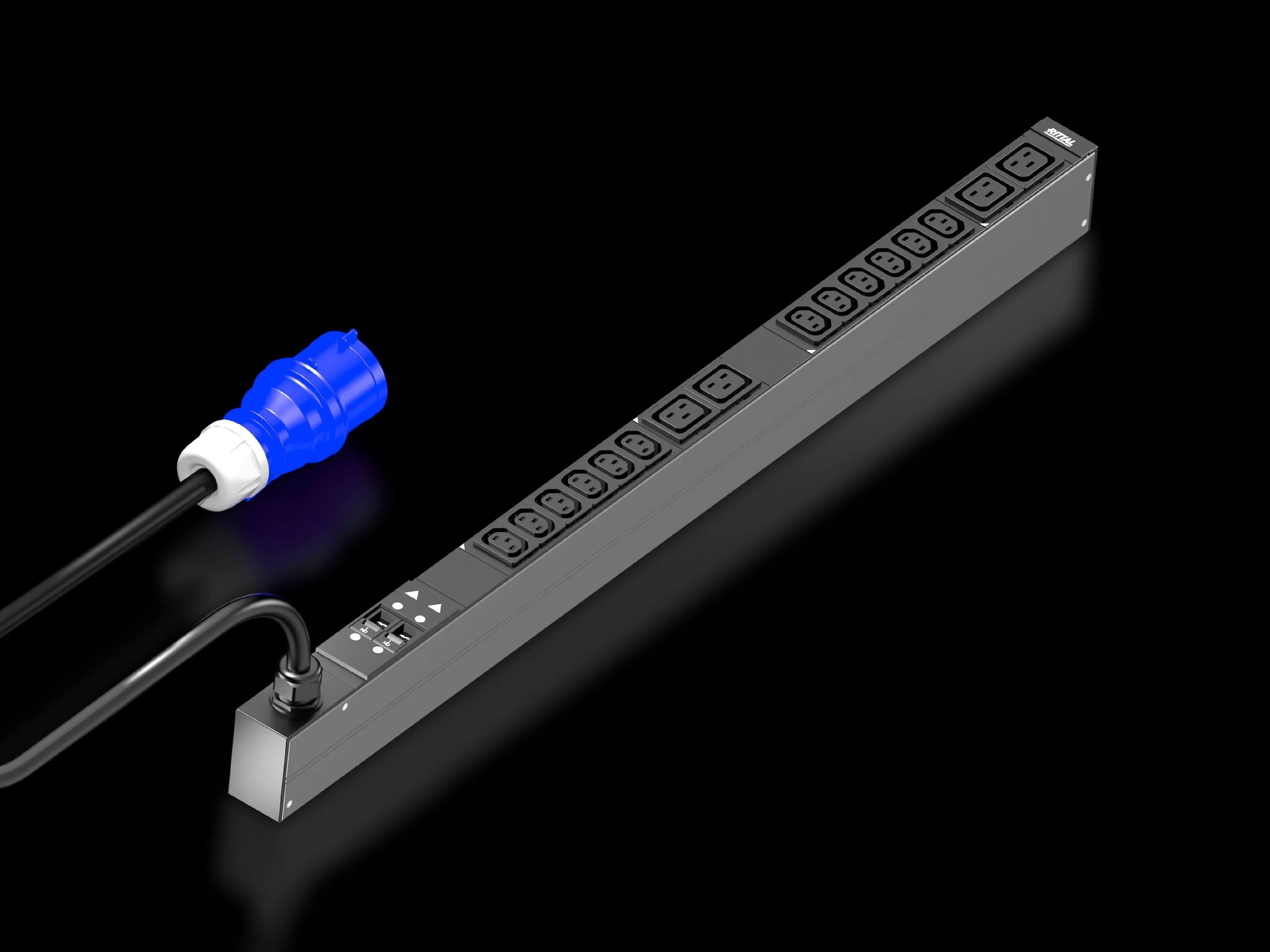

7979113 Rittal: PDU basic 32A/1P CEE 12xC13+4xC19, DK PDU basic, Compact basic power distributor, WHD: 44x845x70, IEC 60320: 12 x C13, 4 x C19
Article number
DK 7979.113
Product description
Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Material
Extruded aluminium section, anodised | Slots: Plastic
Supply includes
Connector lock for IEC C14 and C20 connectors | Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Other enclosure colours are available
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 845 mm
No. of sockets and type
12 x C13 / 4 x C19
Rated operating voltage
230 V (AC)
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,200 mm | Enclosure type: TX CableNet: ≥ 1,200 mm
Packs of
1 pc(s).
Customs tariff number
85366990
EAN
4028177947429
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
PDU basic 32A/1P CEE 12xC13+4xC19, DK PDU basic, Compact basic power distributor, WHD: 44x845x70, IEC 60320: 12 x C13, 4 x C19
12x C13 and 4x C19 outlets deliver flexible load distribution for mixed IT equipment, reducing cable spaghetti and improving airflow. In practice, this enables one PDU to handle servers, switches, and storage devices in a single rack, boosting space efficiency and simplifying spare-part planning. Vertical and horizontal mounting options align with VX IT frames or TS IT racks, providing installation flexibility and zero-U integration that speeds deployments in new builds or refresh projects. The extruded aluminium housing with anodised finish offers lightweight durability while plastic slots provide rugged cable management. A 3 m IEC CEE connection lead and a connector lock for C14/C20 connectors simplify infeed connections and protect against accidental disconnections, reducing downtime. Optional Type 3 overvoltage protection with interchangeable arresters and status monitoring supports proactive protection and regulatory compliance in dynamic IT environments. All of this is underpinned by the EMC Directive 2014/30/EU and EN 62368-1 standards, helping IT teams meet audits and maintain seamless operation in VX IT enclosure ecosystems.
Get a Quick Quote for a Rittal 7979113
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979113?
Enquire Now
FAQs
The DK 7979.113 PDU Basic supports both horizontal mounting at the 19" level and vertical mounting in zero-U space, compatible with VX IT enclosure frames and TS IT systems. It includes a 3 m CEE power lead and a connector lock for IEC C14/C20 connectors, enabling tool-free or minimal-tools installation and secure infeed connections in dense rack environments.
This PDU provides 32 A maximum current at 230 V AC, delivering up to 7.4 kW of power. It features 12 x C13 and 4 x C19 sockets, a single infeed, and a 3 m connection cable with CEE-type electrical connection. The design supports reliable distribution for mixed IT loads while maintaining safe operating temperatures in typical data-center environments.
Yes, the PDU Basic DK 7979.113 is suitable for IT racks requiring compact yet capable power distribution. It’s ideal for servers, switches, and storage in VX IT and TS IT racks, enabling stacked density without sacrificing cable management. Its slim 44 mm width and 70 mm depth optimize space in dense cabinets while providing ample outlets for critical equipment.
The DK 7979.113 PDU Basic complies with EMC Directive 2014/30/EU and EN 62368-1, with CE marking. These certifications ensure electromagnetic compatibility and safety for IT deployments, supporting audits and regulatory requirements in data centers, telecom rooms, and governed IT environments.
Beyond straightforward installation, the PDU’s modular nature and zero-U mounting options reduce field labor and downtime during rack refreshes. The Type 3 overvoltage protection option and status monitoring can prevent unexpected outages, protecting equipment and improving ROI through higher reliability and longer asset life in busy data centers.
