Rittal PDU basic 32A/1P DK 7979.114 - EN 62368-1
Part Number: 7979114
Manufacturer
Rittal
Part number
7979114
Category
Alt Part Number
DK 7979.114
Quick Summary
Rittal PDU basic 32A/1P is a compact power distributor designed for IT racks. When space is tight, it streamlines mounting and wiring without sacrificing reliability. Compliance with EMC Directive 2014/30/EU and EN 62368-1 provides CE-grade safety and interoperability for data-center and industrial IT deployments. Its flexible mounting supports horizontal insertion at the 19 inch level or vertical zero-U installation in VX IT enclosures. In practice, engineers gain faster deployments, predictable power distribution, and a scalable solution that reduces cabling complexity in mixed IT and automation environments.
Product Information
Extended Description

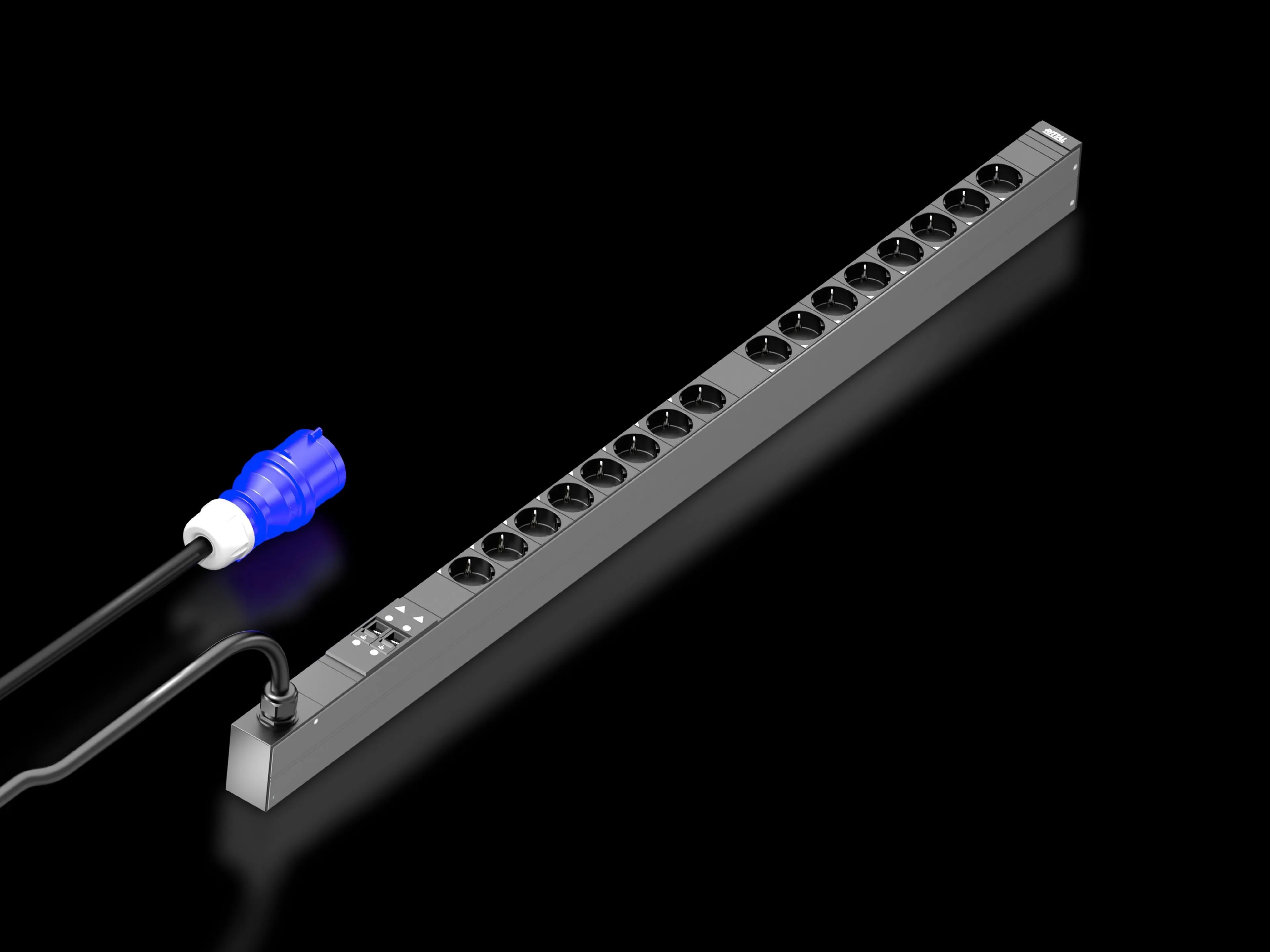

7979114 Rittal: PDU basic 32A/1P CEE 16xCEE7/3 earthing-pin, DK PDU basic, Compact basic power distributor, WHD: 44x1095x70, CEE 7/3: 16 x earthing-pin
Article number
DK 7979.114
Product description
Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Material
Extruded aluminium section, anodised | Slots: Plastic
Supply includes
Connector lock for IEC C14 and C20 connectors | Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Other enclosure colours are available
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,095 mm
No. of sockets and type
16 x earthing-pin (type F, CEE 7/3)
Rated operating voltage
230 V (AC)
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
4.68 kg
Customs tariff number
85366990
EAN
4028177947436
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
PDU basic 32A/1P CEE 16xCEE7/3 earthing-pin, DK PDU basic, Compact basic power distributor, WHD: 44x1095x70, CEE 7/3: 16 x earthing-pin
Feature: Compact power distribution for IT racks with 32 A max current and 230 V AC input. Business Impact: Supports high-density loads while reducing the number of separate PDUs needed, cutting space usage and total cable clutter. Application: IT racks, data centers, and mixed IT/automation cabinets. Feature: 16 x CEE7/3 earthing-pin sockets and 3 m connection cable. Business Impact: Simplifies outlet provisioning and enables flexible cabinet layouts with reliable, standards-compliant power delivery. Application: VX IT enclosures and TS IT racks. Feature: Extruded aluminium housing with anodised finish and plastic slots; includes connector lock and assembly parts. Business Impact: Durable, tamper-resistant construction supports rugged industrial environments and quick field assembly. Application: Industrial IT rooms and technical cabinets. Feature: Horizontal 19" mounting or vertical zero-U mounting in VX IT enclosures. Business Impact: Maximizes rack space, accelerates installation, and reduces tool requirements. Application: Zero-U installations in VX IT systems. Feature: Type 3 overvoltage protection option with interchangeable arresters and status monitoring. Business Impact: Enhanced grid-side protection and continuous fault visibility, lowering risk of equipment damage. Application: Data centers and industrial control rooms. Feature: Compliance and standards coverage EN 62368-1 and EMC Directive 2014/30/EU. Business Impact: Simplifies regulatory procurement and ensures interoperability with modern IT infrastructure. Application: Any CE-marked IT rack environment.
Get a Quick Quote for a Rittal 7979114
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979114?
Enquire Now
FAQs
The PDU basic DK 7979.114 is designed to fit VX IT enclosure frames ≥ 1,200 mm and supports vertical zero-U mounting in VX IT enclosures as well as horizontal 19" mounting. It includes assembly parts and a connector lock to streamline installation, ensuring secure integration with VX IT products and TS IT racks.
It operates at 230 V AC with a maximum current of 32 A and a 3 m input cable. The unit provides 16 x CEE7/3 outlets and a Type 3 overvoltage protection option with interchangeable arresters and status monitoring for proactive fault detection and protection of connected IT equipment.
Yes. The PDU basic is CE-marked with compliance to EMC Directive 2014/30/EU and EN 62368-1 standards. These certifications support safe operation in data centers and industrial IT environments, ensuring interoperability with modern IT infrastructure and compliant installation in mixed-use facilities.
Vertical zero-U mounting allows placement in the VX IT zero-U space, and the unit can be mounted without complex tooling in many rack layouts. The included assembly parts and straightforward 3 m power cable streamline setup, reducing on-site labor and enabling rapid scalability as rack needs evolve.
By delivering compact, reliable power distribution with clear fault visibility and scalable mounting options, the PDU basic lowers downtime risk and maintenance effort. Its durable aluminium housing, standard-compliant design, and optional overvoltage protection contribute to lower total cost of ownership in data centers and industrial automation environments.
