Rittal DK 7979.116 PDU basic - EN 62368-1
Part Number: 7979116
Manufacturer
Rittal
Part number
7979116
Category
Alt Part Number
DK 7979.116
Quick Summary
Rittal DK 7979.116 PDU basic is a compact IT rack power distributor for professional data-center environments. The challenge engineers face is delivering reliable power without bulky space or complex mounting in VX IT or TS IT racks. It aligns with CE compliance under EMC Directive 2014/30/EU and EN 62368-1 safety standards, with optional Type 3 overvoltage protection and status monitoring. With a 3 m input cable and 24x C13 plus 4x C19 outlets at 230 V, it provides 32 A capacity for scalable, downtime-reducing power distribution. This combination supports efficient rack management, simplifies installation, and reduces total cost of ownership through predictable power provisioning in demanding environments.
Product Information
Extended Description

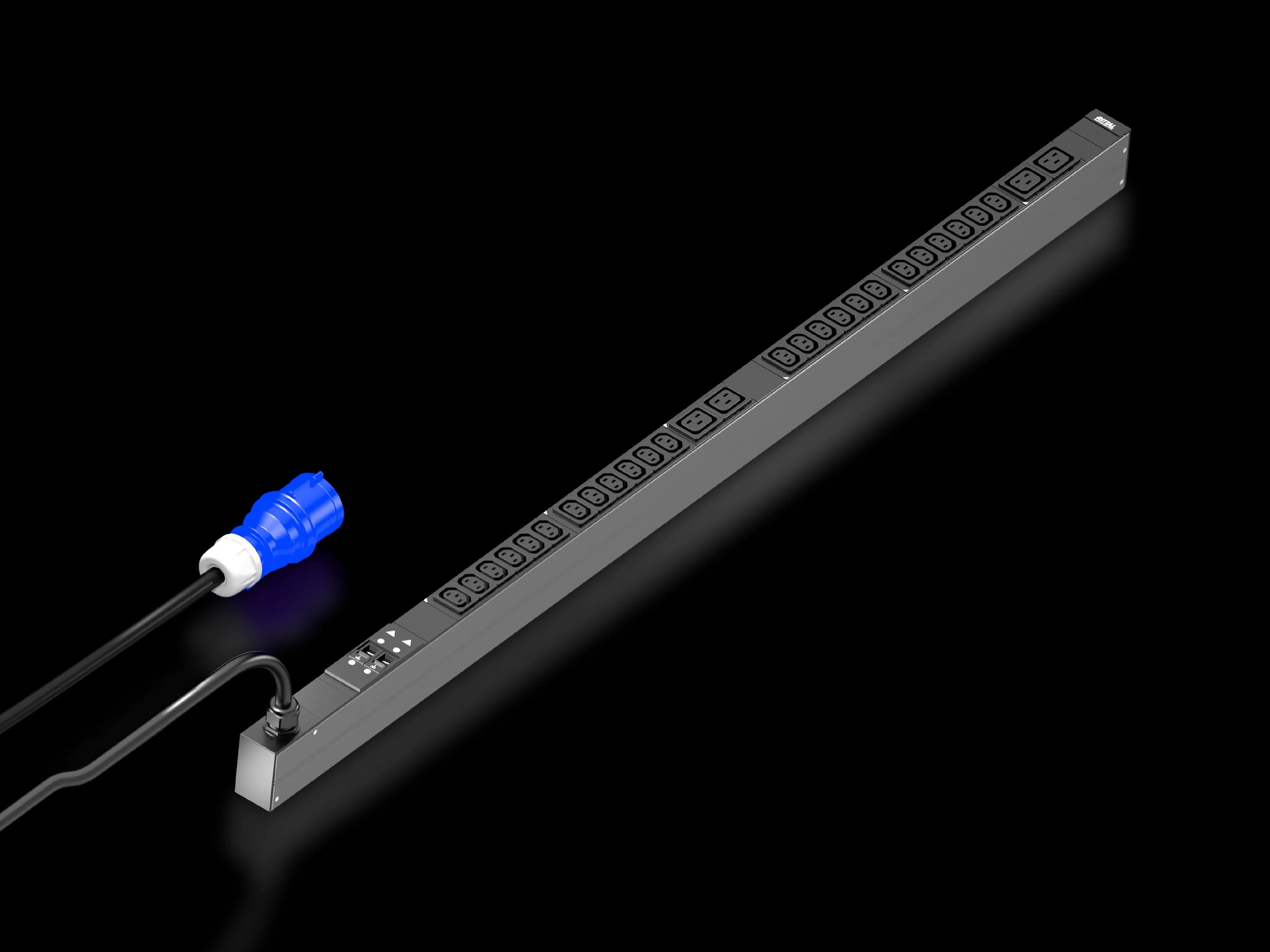

7979116 Rittal: PDU basic 32A/1P CEE 24xC13+4xC19, DK PDU basic, Compact basic power distributor, WHD: 44x1295x70 mm, IEC 60 320: 24x C13, 4x C19
Article number
DK 7979.116
Product description
Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Material
Extruded aluminium section, anodised | Slots: Plastic
Supply includes
Connector lock for IEC C14 and C20 connectors | Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Other enclosure colours are available
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,295 mm
No. of sockets and type
24 x C13 / 4 x C19
Rated operating voltage
230 V (AC)
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
Input cable connection (type/length)
3 m
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm | Enclosure type: TX CableNet: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
4 kg
Customs tariff number
85366990
EAN
4028177947450
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
PDU basic 32A/1P CEE 24xC13+4xC19, DK PDU basic, Compact basic power distributor, WHD: 44x1295x70 mm, IEC 60 320: 24x C13, 4x C19
Feature: Compact PDU basic design minimizes rack footprint and simplifies installation. Benefit: Reduces cabinet depth usage and cable clutter, enabling cleaner layouts in dense IT racks. Application: Ideal for VX IT and TS IT racks where space is at a premium. Feature: 32 A at 230 V with 24x C13 and 4x C19 outlets. Benefit: Supports diverse IT loads and high-density equipment while maintaining reliable power delivery. Application: Data-center racks housing servers, storage, and network gear requiring scalable power distribution. Feature: 3 m CEE input cable and single infeed. Benefit: Simplifies installation and reduces additional cabling work during rack deployment. Application: New rack builds and retrofit projects where time-to-power is critical. Feature: Optional Type 3 overvoltage protection with interchangeable arresters and status monitoring. Benefit: Enhances protection against surge events and enables proactive monitoring without tools. Application: Critical infrastructure where uptime and reliability are non‑negotiable. Feature: Vertical mounting in zero-U space and horizontal mounting at 19" level. Benefit: Flexible placement inside VX IT frames or TX CableNet installations, preserving valuable backplane space. Application: Racks with limited vertical clearance or front/back accessibility considerations. Feature: Durable construction with anodised aluminium and modular assembly parts. Benefit: Long service life in data-center environments and straightforward maintenance. Application: High-availability IT environments requiring robust, serviceable PDUs.
Get a Quick Quote for a Rittal 7979116
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979116?
Enquire Now
FAQs
The PDU basic supports horizontal mounting at 19" levels or vertical mounting in zero-U spaces within VX IT enclosure frames or TS IT racks. This flexibility enables clean cabling and efficient use of cabinet height, reducing installation time and avoiding tools for zero-U placement when appropriate.
It delivers 230 V AC at up to 32 A with 7.4 kW total power. The unit provides 24x C13 outlets and 4x C19 outlets, with a 3 m CEE input cable for a single infeed configuration, simplifying supply connections in standard IT rack deployments.
Yes. It is designed for professional IT rack use and meets EMC Directive 2014/30/EU requirements and EN 62368-1 safety standards. Optional Type 3 overvoltage protection with interchangeable arresters and status monitoring support enhanced protection and visibility in data-center environments.
The DK 7979.116 is designed to fit VX IT enclosure frames (≥ 1,800 mm), VX IT 19" mounting angles (≥ 1,800 mm), and TX CableNet configurations (≥ 1,800 mm), ensuring broad compatibility with common Rittal IT rack ecosystems and minimal integration effort.
The compact form factor, tool-free vertical mounting option, and optional protection/monitoring reduce installation time and potential downtime. Reliable power distribution plus scalable outlets help prevent overloading and simplify maintenance, contributing to lower operating costs and improved rack availability over the equipment lifecycle.
