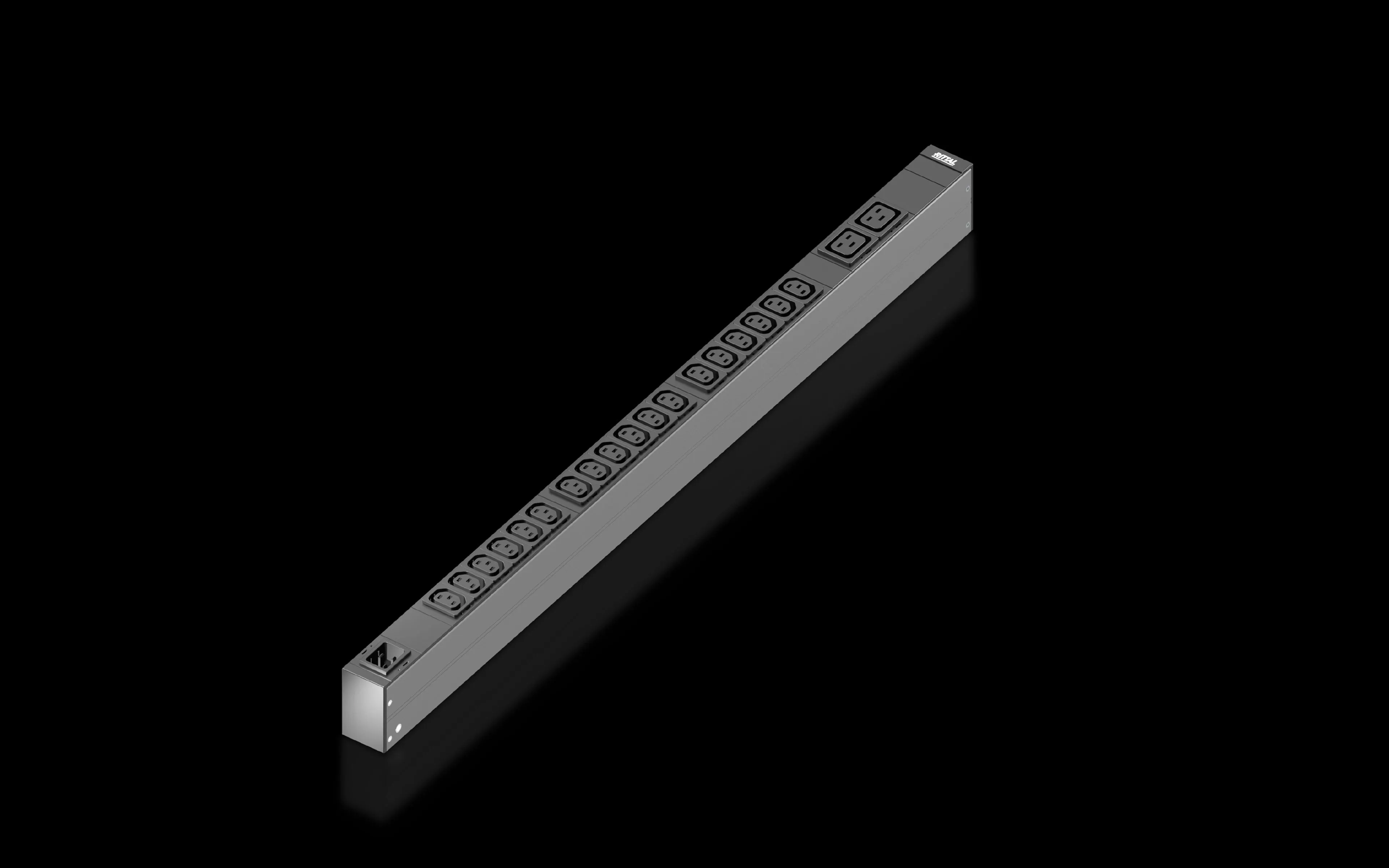

Rittal DK 7979.118 PDU basic - 230V/16A EN 62368-1
Part Number: 7979118
Manufacturer
Rittal
Part number
7979118
Category
Alt Part Number
DK 7979.118
Quick Summary
Rittal DK 7979.118 PDU basic is a compact power distribution unit for IT racks and data centers. In busy IT rooms, space, cable management, and reliable 230 V power delivery are ongoing challenges. The unit complies with EMC Directive 2014/30/EU and EN 62368-1 safety standards, supporting CE-marked regulatory compliance for European deployments. Its slim footprint enables horizontal mounting on the 19" level or vertical zero-U mounting in VX IT enclosures, reducing cabinet footprint while preserving accessibility. With tool-free installation in some configurations, it accelerates deployment and simplifies maintenance. For procurement teams, standardizing on this PDU enhances consistency, simplifies stocking, and improves overall rack reliability and uptime.
Product Information
Extended Description
7979118 Rittal: DK PDU basic, compact basic power distribution, WLD: 44x845x70, IEC 60320: 18 x C13, 2 x C19, 230 V, 1~, 16A, IEC C20
Article number
DK 7979.118
Product description
Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Material
Extruded aluminium section, anodised | Slots: Plastic
Supply includes
Connector lock for IEC C14 and C20 connectors | Assembly parts
Options
Other enclosure colours are available
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 845 mm
No. of sockets and type
18 x C13 / 2 x C19
Rated operating voltage
230 V (AC)
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Type of electrical connection
IEC C20
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,200 mm | Enclosure type: TX CableNet: ≥ 1,200 mm
Packs of
1 pc(s).
Weight/pack
2.2 kg
Customs tariff number
85366990
EAN
4028177973442
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU basic, compact basic power distribution, WLD: 44x845x70, IEC 60320: 18 x C13, 2 x C19, 230 V, 1~, 16A, IEC C20
Feature: Compact 44 mm width, 70 mm height, 845 mm length with 18 x C13 and 2 x C19 outlets. Business Impact: Enables high-density IT racks to power a broader mix of equipment without expanding cabinet footprints. Application: Ideal for VX IT frames and standard 19" enclosures where space is at a premium. Feature: 230 V, 1~, 16 A rating delivering up to 3.7 kW. Business Impact: Supports reliable single-phase distribution for servers, switches, and storage devices while maintaining headroom for peak loads. Application: Suitable for mid-range data centers and edge deployments that demand predictable power delivery. Feature: Mounting flexibility (horizontal 19" level or vertical zero-U). Business Impact: Reduces installation time, simplifies retrofits, and increases rack density by freeing up valuable space. Application: VX IT and TX CableNet environments where quick reconfiguration matters. Feature: Aluminium extrusion construction with anodised finish and plastic slots, weight 2.2 kg. Business Impact: Lighter, robust PDU with durable corrosion resistance, easing handling during installation and service. Application: Repeated rack moves and frequent equipment swaps in dynamic IT spaces. Feature: Includes connector lock for IEC C14/C20 and assembly parts. Business Impact: Protects against accidental disconnection, lowers maintenance calls, and speeds commissioning. Application: Environments with frequent power cycling and modular rack configurations. Feature: EMC Directive 2014/30/EU and EN 62368-1 compliant. Business Impact: Compliance reduces regulatory risk and accelerates approval for European data centers. Application: Government and enterprise deployments requiring formal certification.
Get a Quick Quote for a Rittal 7979118
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979118?
Enquire Now
FAQs
Install the DK 7979.118 either horizontally at the 19" level or vertically in the zero-U space of a VX IT enclosure. Use the included connector lock for IEC C14/C20 connectors to secure the infeed and ensure the unit sits flush with the enclosure profile. The compact 44x845x70 mm footprint supports quick alignment, while the weight of 2.2 kg aids handling during mounting. This configuration minimizes installation time and preserves valuable cabinet space.
The PDU basic operates at 230 V (single-phase) with a maximum current of 16 A, delivering up to 3.7 kW of power. It provides 18 x IEC C13 outlets and 2 x IEC C19 outlets, suitable for a mix of servers, storage, and network gear. Infeed is 1~, and the unit uses an IEC C20 connector. These specs support reliable power distribution for mid-density IT deployments.
Yes, for many scenarios. Its compact footprint (44x845x70 mm) and flexible mounting enable dense rack configurations, while the 18 C13 and 2 C19 sockets cover common server and storage needs. The zero-U vertical mounting option is particularly valuable in tight spaces or edge deployments where every millimeter counts. Ensure your rack frame length meets the specified fit criteria (≥ 1,200 mm) for VX IT or TX CableNet configurations.
The PDU basic aligns with the EMC Directive 2014/30/EU and is specified to EN 62368-1 for safety. This combination supports CE marking and regulatory compliance in European data centers, helping simplify procurement and approval processes for IT infrastructure projects.
The PDU’s tool-free installation and lightweight design reduce deployment time and labor costs. Its robust construction with anodised aluminium framing resists wear in rack environments, while the integrated connector lock minimizes disconnect risk during vibrations or reconfigurations. Standardizing on this PDU also simplifies spare-part stocking and improves uptime by delivering dependable power distribution across IT workloads.
