Rittal DK 7979.134 PDU Basic 32A/3P - EN 62368-1
Part Number: 7979134
Manufacturer
Rittal
Part number
7979134
Category
Alt Part Number
DK 7979.134
Quick Summary

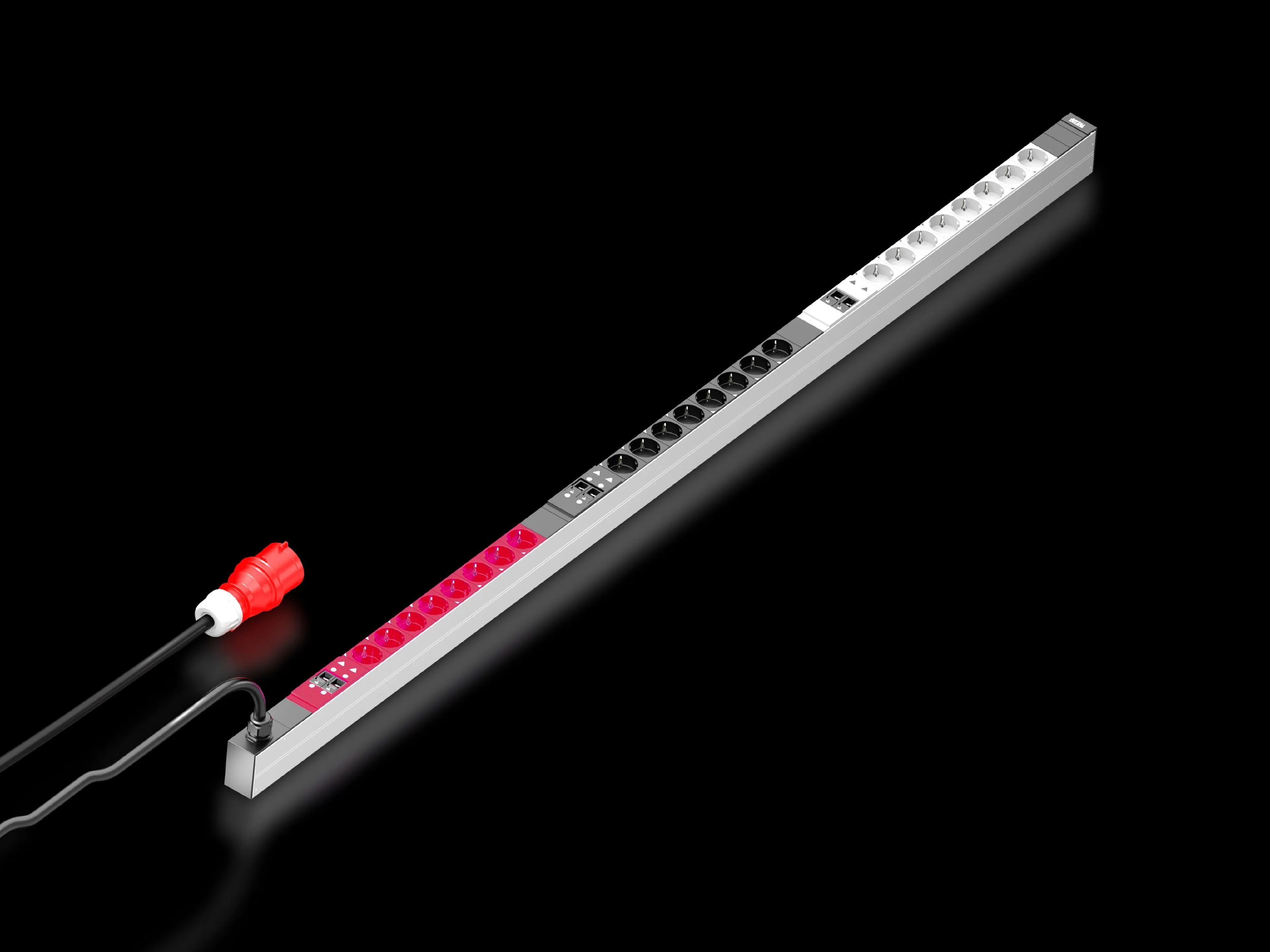

The Rittal DK 7979.134 PDU Basic is a compact, high‑quality power distribution unit designed for IT racks. It helps IT teams reliably equip racks while maintaining clean cable management and uninterrupted service in dense data centers. Certified for CE compliance, EMC Directive 2014/30/EU, and EN 62368-1, it supports safe operation across regional IT deployments. By offering horizontal or vertical mounting options and a rugged aluminium housing, it delivers installation flexibility and measurable efficiency gains for pro‑level IT environments. The 3 m infeed cable and 24xCEE7/3 outlets simplify wiring, while its 5 °C to 50 °C operating range and 10–95% humidity tolerance support deployment in varied data‑center conditions.
Product Information
Extended Description
7979134 Rittal: PDU basic 32A/3P CEE 24xCEE7/3 earthing-pin, DK PDU basic, Compact basic power distributor, WHD: 44x1695x70, CEE 7/3: 24 x earthing-pin
Article number
DK 7979.134
Product description
Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Material
Extruded aluminium section, anodised | Slots: Plastic
Supply includes
Connector lock for IEC C14 and C20 connectors | Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Other enclosure colours are available
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,695 mm
No. of sockets and type
24 x earthing-pin (type F, CEE 7/3)
Rated operating voltage
400 V (AC)
Rated current (max.)
32 A
Power consumption
22 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 2,000 mm
Packs of
1 pc(s).
Customs tariff number
85366990
EAN
4028177947504
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
PDU basic 32A/3P CEE 24xCEE7/3 earthing-pin, DK PDU basic, Compact basic power distributor, WHD: 44x1695x70, CEE 7/3: 24 x earthing-pin
Feature: Durable extruded aluminium housing with anodised finish reduces weight while maintaining rigidity. Business Impact: Easier handling during installation and long-term rack stability. Application: Ideal for wall or 19" rack mounting in IT environments. Feature: High current capability with 32 A max current and 400 V AC input across 3 phases, plus 24 x CEE7/3 earthing-pin outlets. Business Impact: Supports dense server loads and future growth without outlet bottlenecks. Application: Data centers and edge rooms needing reliable distribution for multiple servers. Feature: Flexible mounting options including horizontal mounting at the 19" level and vertical zero-U mounting in VX IT or TS IT racks. Business Impact: Reduces floor space usage and shortening deployment times, lowering labor costs. Application: Quick retrofits in restricted or crowded cabinet spaces. Feature: 1 infeed, 3~ phases per infeed, and a 3 m connection cable with CEE plug. Business Impact: Simplifies reach and cabling, cuts custom wiring needs, and minimizes commissioning delays. Application: Large cabinet strings or tight-run installations in data halls. Feature: Optional Type 3 overvoltage protection with interchangeable arresters and status monitoring. Business Impact: Enhanced grid protection and proactive maintenance capabilities, reducing risk of equipment damage. Application: Critical IT environments requiring active protection monitoring. Feature: Includes assembly parts and connector lock for IEC C14/C20 connectors; pack size 1. Business Impact: Accelerates on-site assembly and reduces parts search time, improving project timelines. Application: Standard IT rack deployments in VX IT enclosures and similar frames.
Get a Quick Quote for a Rittal 7979134
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979134?
Enquire Now
FAQs
Installers can mount horizontally at the 19" level or vertically in zero-U space within VX IT/TS IT racks. The PDU ships with assembly parts and a connector lock for IEC C14/C20, enabling tool-free or minimal‑tool installation and a clean, secure fit in tight cabinet spaces.
The unit supports up to 32 A at 400 V AC across 3 phases, with 24 x CEE7/3 outlets. It uses a 3 m infeed cable with a CEE connection, delivering robust power to dense IT loads while maintaining compliance with regional electrical rules.
Yes. Its compact length (1,695 mm), high current capacity, and flexible mounting make it ideal for data centers and edge environments where space is at a premium but reliability is non‑negotiable.
It adheres to EMC Directive 2014/30/EU and EN 62368-1, with CE marking. This ensures compatibility with European regulatory requirements and safe operation in professional IT installations.
The PDU ships with essential assembly parts, supports optional Type 3 overvoltage protection, and enables durable operation up to 50 °C with high humidity. These factors reduce downtime, extend hardware life, and shorten deployment cycles, improving total cost of ownership.
