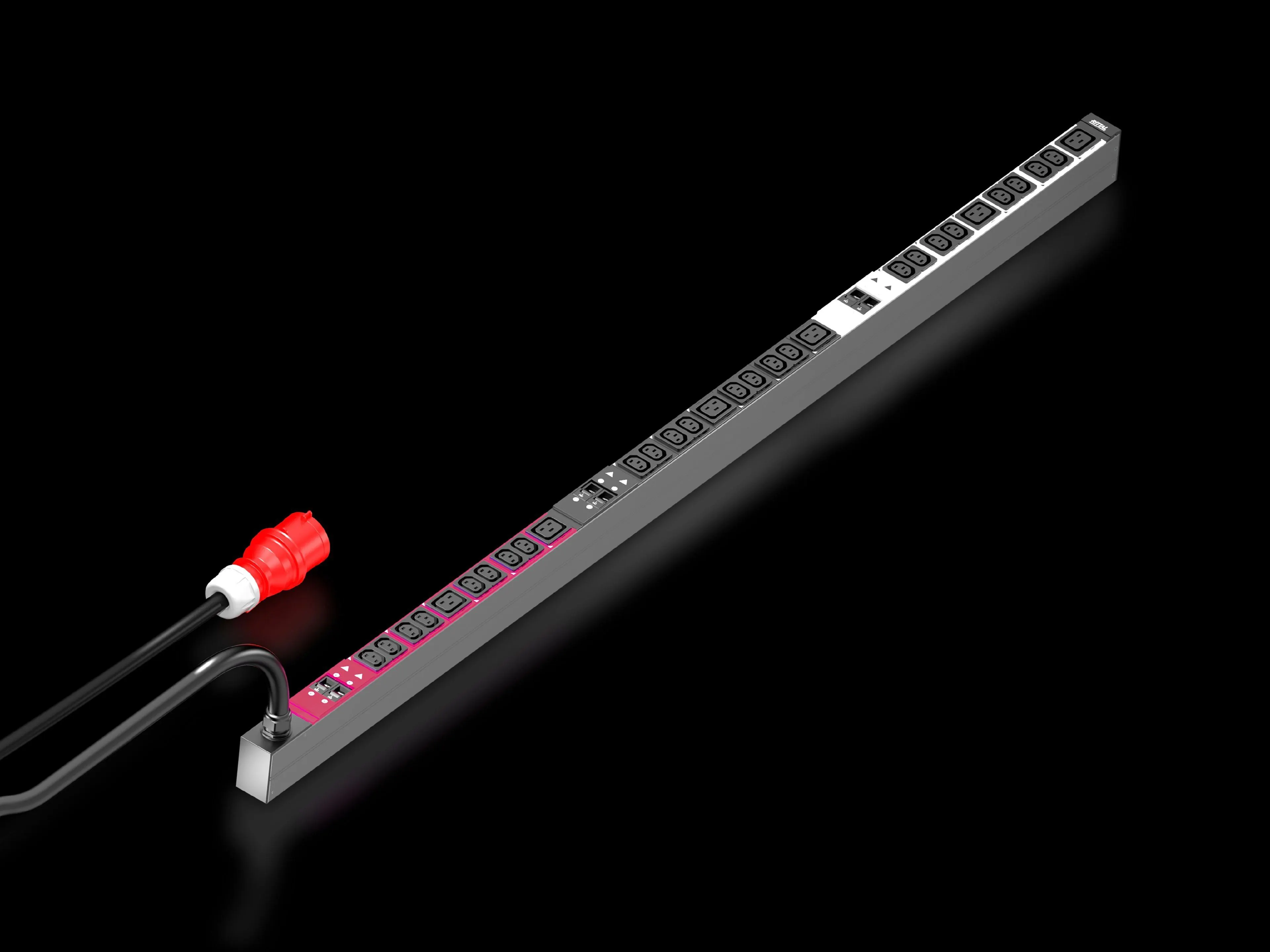

Rittal 7979137 PDU Basic - 32 A, 24x C13 + 6x C19
Part Number: 7979137
Manufacturer
Rittal
Part number
7979137
Category
Alt Part Number
DK 7979.137
Quick Summary
PDU basic from Rittal delivers compact, reliable power distribution for IT racks in data centers. This solution addresses the common challenge of bulky, hard-to-fit power distribution that limits rack density and increases time spent on wiring. It complies with CE marking, EMC Directive 2014/30/EU, and EN 62368-1 safety standards, helping you meet regulatory and audit requirements. By supporting horizontal mounting at the 19" level or vertical zero-U installation in VX IT racks, it maximizes space, reduces installation time, and improves cable management—delivering measurable business value through safer, more scalable IT infrastructure.
Product Information
Extended Description
7979137 Rittal: PDU basic 32A/3P CEE 24xC13+6xC19, DK PDU basic, Compact basic power distributor, WHD: 44x1495x70 mm, IEC 60 320: 24x C13, 6x C19
Article number
DK 7979.137
Product description
Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Material
Extruded aluminium section, anodised | Slots: Plastic
Supply includes
Connector lock for IEC C14 and C20 connectors | Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Other enclosure colours are available
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,495 mm
No. of sockets and type
24 x C13 / 6 x C19
Rated operating voltage
400 V (AC)
Rated current (max.)
32 A
Power consumption
22 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
5.4 kg
Customs tariff number
85366990
EAN
4028177947535
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
PDU basic 32A/3P CEE 24xC13+6xC19, DK PDU basic, Compact basic power distributor, WHD: 44x1495x70 mm, IEC 60 320: 24x C13, 6x C19
Feature: Compact PDU basic design with 24x C13 plus 6x C19 outlets. Business impact: Enables high-density IT rack power distribution without expanding cabinet footprint, reducing floor space needs and improving airflow. Application: Ideal for data centers and lab environments requiring dense, reliable power for mixed equipment. Feature: 1× 3P 400 V infeed and 32 A max rating with a 3 m CEE cable. Business impact: Supports high-power servers and network appliances while maintaining flexible, tidy cabling. Application: Fits standard VX IT frames and 19" racks for scalable deployments. Feature: Durable extruded aluminium body with anodised finish and plastic slots. Business impact: Combines lightweight handling with robust corrosion resistance, lowering maintenance costs. Application: Suitable for hot-dense, climate-variant IT rooms. Feature: Horizontal and vertical mounting options including zero-U compatibility. Business impact: Maximizes rack space and simplifies installation, reducing labor time. Application: Zero-U mounting in VX IT enclosures accelerates deployments. Feature: Optional Type 3 overvoltage protection with interchangeable arresters and status monitoring. Business impact: Proactive protection against surges, extending hardware life and reducing downtime. Application: Integrates into PDU enclosure for critical IT systems. Feature: Compliance and standards support (EMC Directive, EN 62368-1, CE). Business impact: Removes regulatory risk and eases audits. Application: Essential for regulated markets and enterprise IT deployments. Feature: Operating range and environmental resilience (5 °C to 50 °C, 10–95% humidity). Business impact: Maintains performance in varied data center temperatures and humidity. Application: Ensures reliability across diverse facilities. Feature: Universal compatibility (1× infeed, CEE connector, VX IT enclosure fit). Business impact: Streamlines procurement and reduces integration challenges. Application: IT racks and enclosure ecosystems requiring standardized interfaces.
Get a Quick Quote for a Rittal 7979137
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979137?
Enquire Now
FAQs
Install DK 7979.137 PDU Basic by mounting horizontally at the 19" level or vertically in the zero-U space of a VX IT or TS IT rack. It includes assembly parts and a connector lock for IEC C14/C20 connections. With a 3 m CEE input cable and a 44×1495×70 mm footprint, setup requires no special tools for vertical mounting.
Configuration includes a single 3P 400 V infeed delivering up to 32 A, with 24x C13 and 6x C19 outlets. The 3 m CEE cable supports flexible layouts, and the power capacity reaches up to 22 kW in a compact 44×1495×70 mm body, suitable for mid- to high-density IT racks.
Yes. The PDU Basic is CE-marked and complies with EMC Directive 2014/30/EU and EN 62368-1 safety standards. This compliance supports regulatory conformity, audits, and safe operation in IT environments, with additional resilience in environments that require standardized IT power distribution.
An optional Type 3 overvoltage protection module with interchangeable arresters and built-in status monitoring is available. This option provides surge protection for connected IT gear, supports proactive maintenance, and can be integrated into the PDU enclosure without disrupting operation.
The PDU Basic delivers space savings through zero-U mounting, reduced installation time, and improved cable management. Its robust aluminium construction and standardized C13/C19 outlets support scalable IT deployments, lower maintenance costs, and improved reliability—reducing total cost of ownership in data centers and enterprise IT facilities.
