Rittal DK 7979.139 PDU basic - EN 62368-1 & EMC 2014/30/EU
Part Number: 7979139
Manufacturer
Rittal
Part number
7979139
Category
Alt Part Number
DK 7979.139
Quick Summary
Rittal DK 7979.139 PDU basic delivers compact, high-capacity power distribution for IT racks in data centers. This design addresses common clutter and accessibility challenges by enabling horizontal mounting at the 19" level or vertical zero-U integration, freeing valuable rack space. It complies with CE through EMC Directive 2014/30/EU and EN 62368-1 safety standards, helping ensure regulatory alignment. For data-center operators, the PDU basic combines reliability with installation efficiency, offering predictable power distribution while supporting scalable IT infrastructure with compatible VX IT enclosure systems.
Product Information
Extended Description

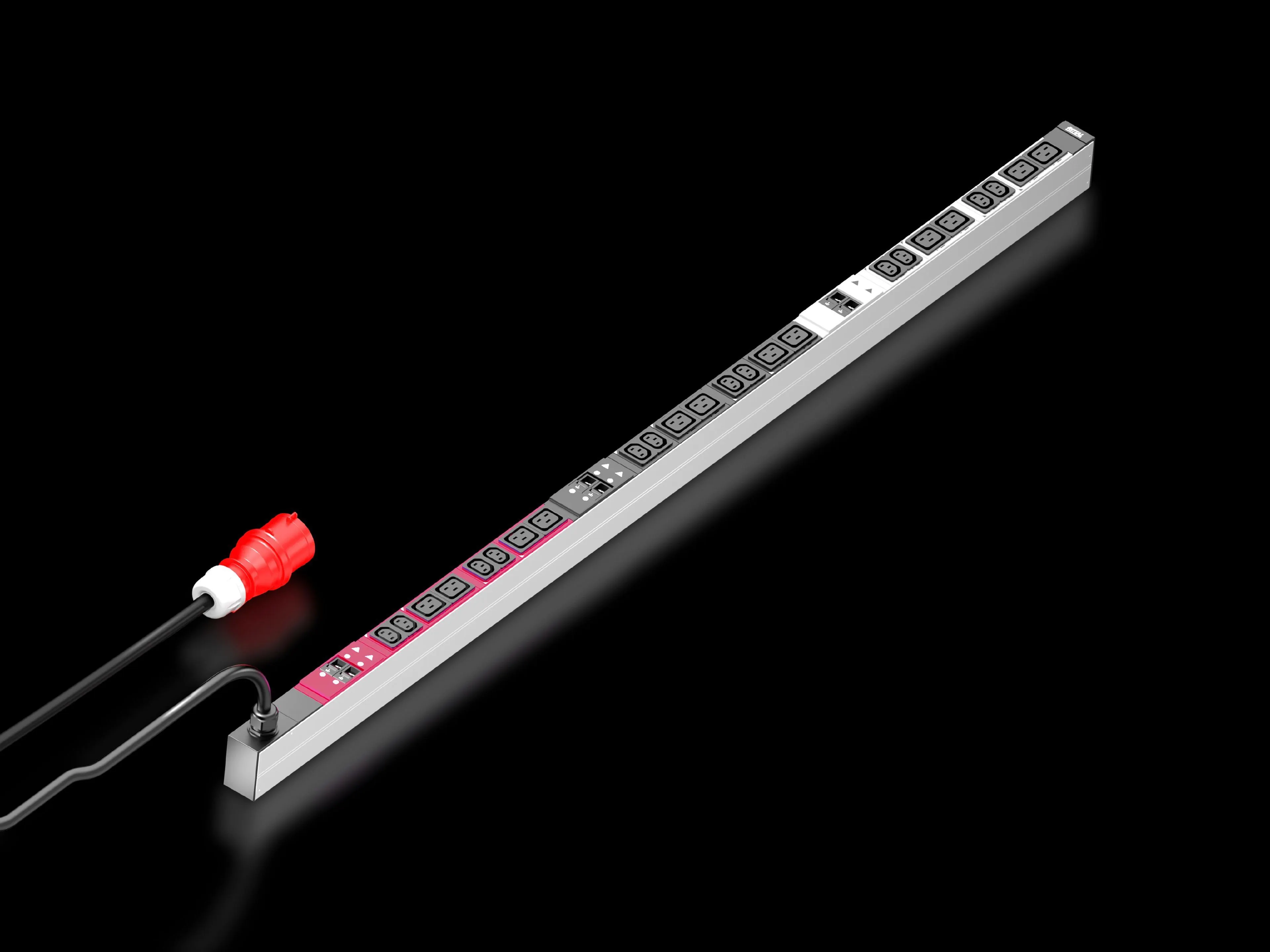

7979139 Rittal: PDU basic 32A/3P CEE 12xC13+12xC19, DK PDU basic, Compact basic power distributor, WHD: 44x1495x70 mm, IEC 60 320: 12 x C13, 12 x C19
Article number
DK 7979.139
Product description
Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Material
Extruded aluminium section, anodised | Slots: Plastic
Supply includes
Connector lock for IEC C14 and C20 connectors | Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Other enclosure colours are available
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,495 mm
No. of sockets and type
12 x C13 / 12 x C19
Rated operating voltage
400 V (AC)
Rated current (max.)
32 A
Power consumption
22 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
5.4 kg
Customs tariff number
85366990
EAN
4028177947559
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
PDU basic 32A/3P CEE 12xC13+12xC19, DK PDU basic, Compact basic power distributor, WHD: 44x1495x70 mm, IEC 60 320: 12 x C13, 12 x C19
Feature → Business Impact → Application: 32 A / 3P CEE input and 12 x C13 + 12 x C19 outlets deliver ample, organized power for high-density servers and network gear, reducing bottlenecks and improving uptime in 400 V environments. This translates to predictable load handling and simplified cable management in data centers or telecom rooms, especially when deployed in VX IT racks. Feature → Business Impact → Application: 3 m connection cable and C14/C20 connector lock enable quick, secure installation with minimal tools, cutting commissioning time for IT rooms and labs. Feature → Business Impact → Application: Horizontal 19" mounting compatibility and zero-U vertical mounting options maximize space efficiency in constrained racks, supporting rapid reconfiguration during upgrades or migrations. Feature → Business Impact → Application: Type 3 overvoltage protection option with interchangeable arresters, plus status monitoring, boosts protection against surges and improves change-management for mission-critical equipment. Feature → Business Impact → Application: Extruded aluminium anodised housing with plastic slots delivers robust mechanicals and durable aesthetics in commercial data halls, aiding maintenance and lifecycle planning. Feature → Business Impact → Application: 22 kW maximum load capacity across 12 C13 and 12 C19 outlets supports growing IT equipment footprints while maintaining balanced energy distribution and thermal performance.
Get a Quick Quote for a Rittal 7979139
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979139?
Enquire Now
FAQs
The PDU basic supports horizontal mounting at the 19" rack level or vertical zero-U mounting, including in VX IT enclosure frames ≥1800 mm. It comes with a 3 m connection lead and installation parts, enabling tool-free or minimal-tool installation to speed up rack refreshes and migrations.
It is rated for 400 V AC with a maximum current of 32 A. The unit provides 12 x C13 and 12 x C19 outlets, along with a 3 m CEE lead and a connector lock for IEC C14/C20 connectors, delivering flexible power distribution for mixed IT equipment.
Yes. It complies with CE under EMC Directive 2014/30/EU and EN 62368-1 safety standards, ensuring conformity for regulated IT environments and safer operation in data centers or server rooms.
Zero-U vertical mounting allows installation in unused space within VX IT racks, freeing front- and rear-facing real estate and reducing cable management complexity. This is especially valuable during rack consolidation projects or upgrades where space is at a premium.
The PDU basic supports up to 32 A at 400 V, with a reported power capacity of 22 kW. This enables efficient distribution across 24 outlets, supporting higher equipment density, reducing energy waste, and driving lower total cost of ownership over the system lifecycle.
