Rittal DK 7979.143 PDU basic - 32 A/3P CEE, EN 62368-1
Part Number: 7979143
Manufacturer
Rittal
Part number
7979143
Category
Alt Part Number
DK 7979.143
Quick Summary

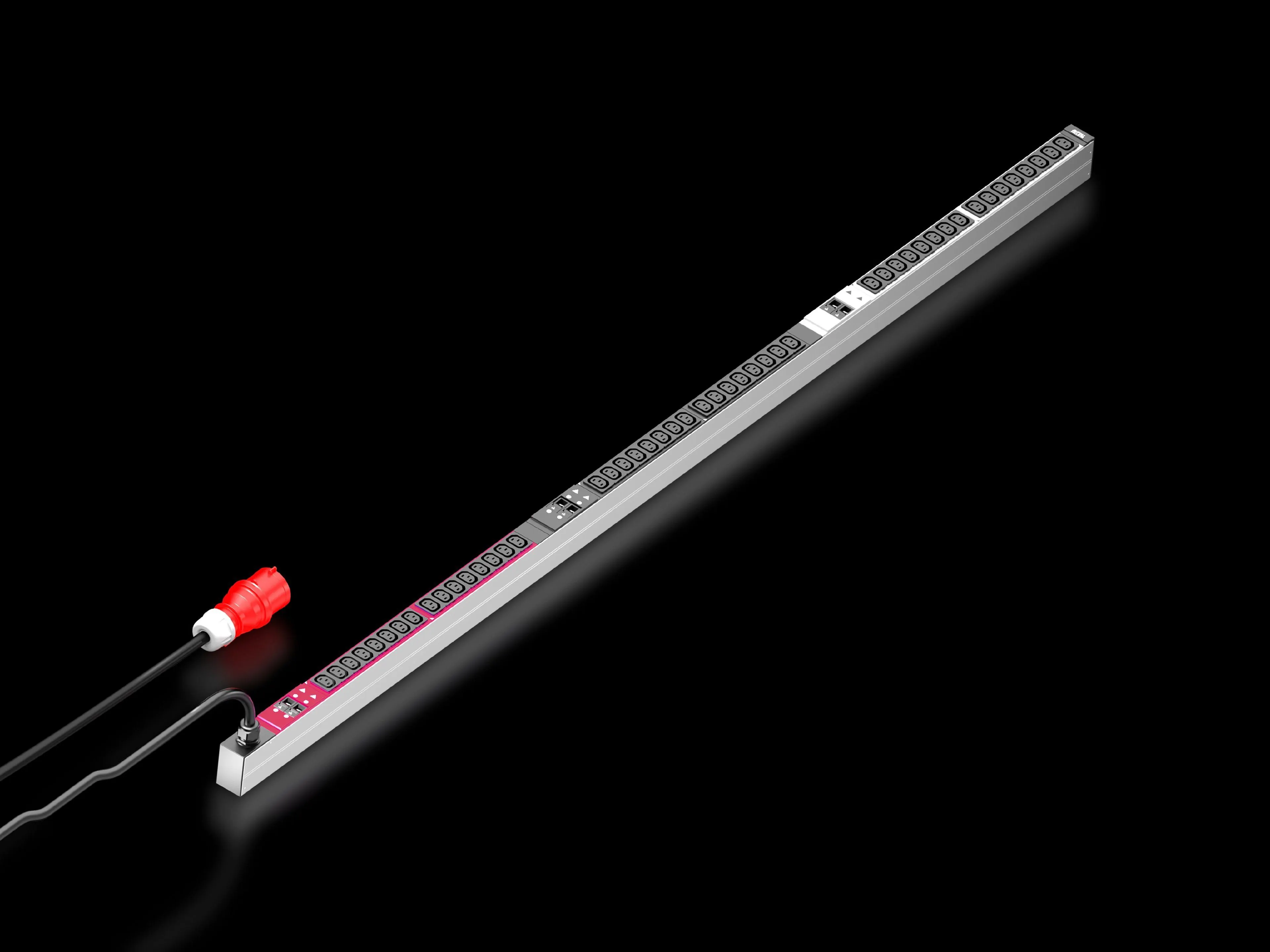

PDU basic from Rittal delivers compact, reliable power distribution for IT racks in data centers and server rooms. In many rack deployments, space constraints and cable clutter hinder rapid upgrades and clean layouts, leading to increased downtime. It is designed to meet EMC Directive 2014/30/EU and EN 62368-1 safety standards, ensuring compliance and safe operation in critical environments. By combining a slender 44 mm width with a 3 m input cable and 48 C13 outlets, this solution reduces installation time while improving airflow and fault tracing. The design also supports vertical or horizontal mounting, including zero-U integration in VX IT enclosures, delivering tangible business value through scalable, maintainable power distribution.
Product Information
Extended Description
7979143 Rittal: PDU basic 32A/3P CEE 48xC13, DK PDU basic, Compact basic power distributor, WHD: 44x1895x70 mm, IEC 60 320: 48 x C13
Article number
DK 7979.143
Product description
Compact basic power distribution. Thanks to the PDU basic, any IT rack can easily be equipped with a professional power distribution system. Depending on the PDU design, horizontal mounting in the 482.6 mm (19") level or vertical mounting (including in the zero-U space) is possible.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Material
Extruded aluminium section, anodised | Slots: Plastic
Supply includes
Connector lock for IEC C14 and C20 connectors | Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Other enclosure colours are available
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,895 mm
No. of sockets and type
48 x C13
Rated operating voltage
400 V (AC)
Rated current (max.)
32 A
Power consumption
22 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 2,000 mm | Enclosure type: VX IT 19" mounting angles: ≥ 2,200 mm
Packs of
1 pc(s).
Weight/pack
6.5 kg
Customs tariff number
85366990
EAN
4028177947597
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
PDU basic 32A/3P CEE 48xC13, DK PDU basic, Compact basic power distributor, WHD: 44x1895x70 mm, IEC 60 320: 48 x C13
Feature compact PDU basic design saves valuable rack space and simplifies cable management. The unit's 44 mm width and 1,895 mm length enable horizontal mounting at the 19-inch level or vertical insertions in zero-U spaces, reducing footprint while maintaining full access to outlets. In IT environments with dense server populations, this translates to improved airflow and easier cooling orchestration. Business impact includes potential energy efficiency gains and easier maintenance planning for data centers and server rooms. Application: IT rack deployments where space and cooling are critical constraints. Long-tail keywords: PDU basic, compact power distributor, 19 inch mounting, zero-U, VX IT enclosure compatibility.
Get a Quick Quote for a Rittal 7979143
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979143?
Enquire Now
FAQs
The PDU basic is designed for horizontal mounting at the 19" level or vertical zero-U installation in VX IT frames. It ships with an IEC connector lock and assembly parts, enabling tool-friendly mounting with minimal effort. Its 3 m CEE power input provides flexible placement, while preserving full outlet access for 48 C13 sockets.
Rated at 400 V AC and 32 A maximum, it supports up to 22 kW across 48 x C13 outlets. Infeed is 1 x 3-phase, with a 3 m connection cable. The device operates from 5 °C to 50 °C and 10–95% humidity (non-condensing), suitable for data centers and server rooms with typical ambient conditions.
Yes. It offers horizontal or vertical mounting and is compatible with VX IT enclosure frames and mounting angles. The zero-U mounting capability allows installation in unused space, improving cable management and airflow while maintaining serviceability and outlet accessibility.
The product complies with EMC Directive 2014/30/EU and EN 62368-1 safety standards, with CE marking. These certifications ensure regulatory compliance for IT deployments in data centers, reducing compliance risk and supporting safe operation in critical facilities.
Optional Type 3 overvoltage protection with interchangeable arresters and status monitoring enhances protection and visibility. The sturdy aluminium enclosure and durable design support long service life, while the compact footprint reduces cabling complexity, leading to lower maintenance costs and higher uptime in dense IT environments.
