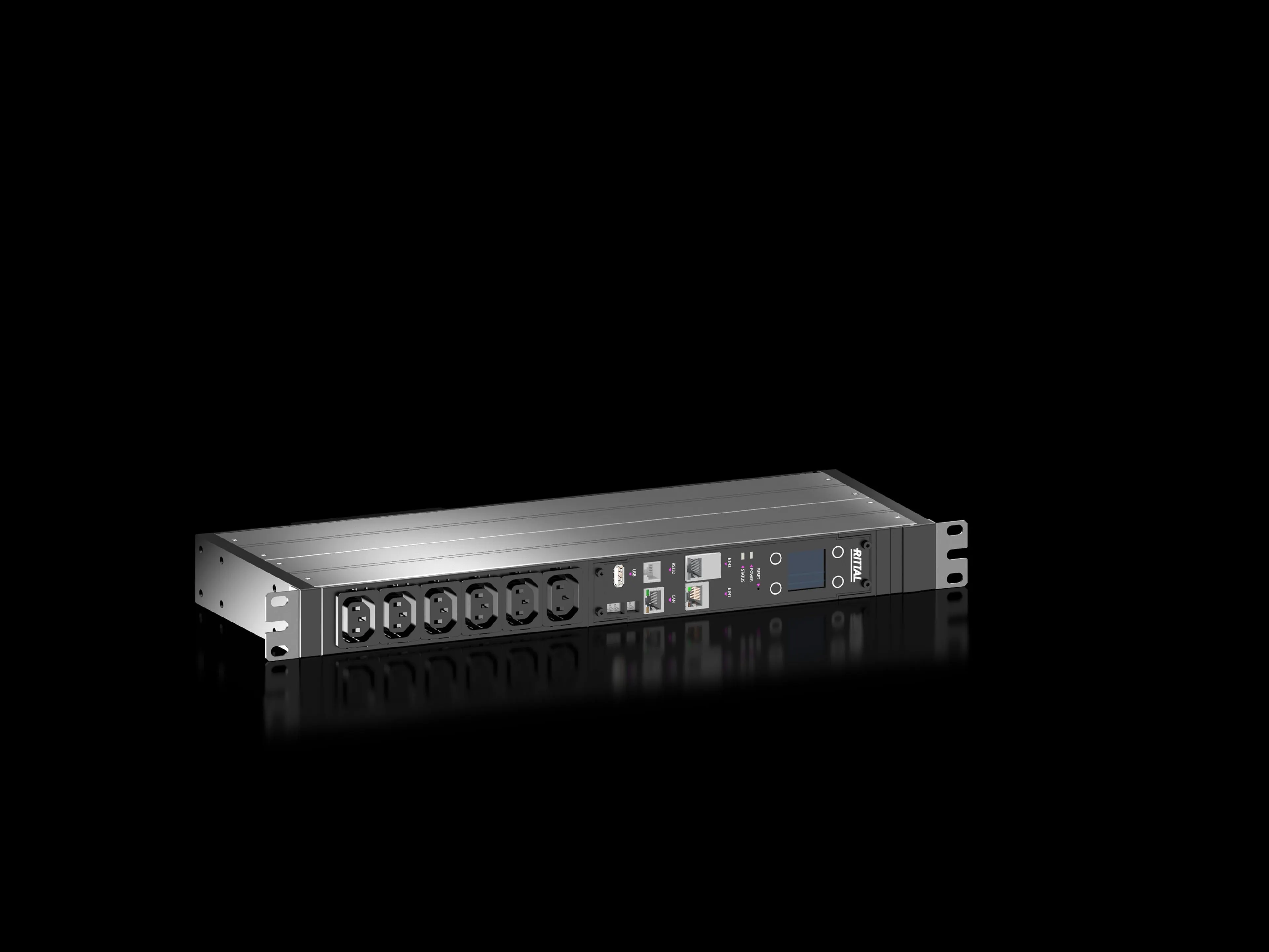

Rittal DK 7979.202 PDU metered with EN 62368-1
Part Number: 7979202
Manufacturer
Rittal
Part number
7979202
Category
Alt Part Number
DK 7979.202
Quick Summary
Rittal DK 7979.202 PDU metered delivers per phase energy measurement for IT racks. Many data centers struggle to pinpoint where energy is consumed, hampering efficiency and uptime. It ships with CE conformity under EMC Directive 2014/30/EU and EN 62368-1 safety standards, plus a secure web interface for remote monitoring. The compact enclosure measures WLD 450x44x144 mm and integrates neatly into 19" racks, while the rotatable, replaceable display simplifies on-site configuration. With USB mass configuration, data logging, and optional CAN bus ambient sensors, operators gain actionable visibility to drive chargeback accuracy, reduce cooling energy, and meet compliance requirements. This PDU suits VX IT environments, offering zero-U mounting and scalable power management for growing IT workloads.
Product Information
Extended Description
7979202 Rittal: DK PDU metered, compact basic power distribution incl. energy measurement per Phase, with network interface and display, WLD: 450x44x144 mm, IEC 60320: 6 x C13
Article number
DK 7979.202
Design
482.6 mm (19") version
Product description
High-end power distribution in a compact design for IT network and server racks. With power measurement at the infeed or per phase.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts | No connection cable, to be provided by the customer.
Options
CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors
Measurement functions, description
Measurement per phase or infeed
Dimensions
Height: 44 mm | Depth: 144 mm | Length: 450 mm
No. of sockets and type
6 x C13
Rated operating voltage
230 V (AC)
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Type of electrical connection
IEC C20
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 800 mm
Packs of
1 pc(s).
Weight/pack
2.54 kg
Customs tariff number
85366990
EAN
4028177947603
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU metered, compact basic power distribution incl. energy measurement per Phase, with network interface and display, WLD: 450x44x144 mm, IEC 60320: 6 x C13
Feature: Per-phase energy measurement with a single infeed option; Business Impact: Enables precise energy visibility for chargeback, capacity planning, and cooling optimization; Application: IT rack deployments where monitoring per phase is critical for efficiency. Feature: Compact WLD 450x44x144 mm, 19" design, and zero-U mounting capability; Business Impact: Maximizes rack density and simplifies installation in VX IT frames; Application: Data centers with tight space constraints and modular IT racks. Feature: Rotatable 180° display and replaceable controller; Business Impact: Easy field servicing and flexible positioning reduces maintenance time; Application: On-site configuration in crowded rack rows. Feature: USB 2.0 for mass configuration, firmware updates, and data logging; Business Impact: Streamlines initial setup and keeps configuration history for audits; Application: IT admin teams deploying or scaling PDU fleets. Feature: Interfaces including HTTP/HTTPS, SSL, SSH, Telnet, NTP; Business Impact: Secure remote management, time synchronization, and robust monitoring; Application: Remote data center operations and VX IT enclosure integrations. Feature: Ambient monitoring via optional CAN bus sensors; Business Impact: Proactive environmental insight to prevent outages; Application: Server rooms with variable cooling and dew point considerations.
Get a Quick Quote for a Rittal 7979202
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979202?
Enquire Now
FAQs
Yes. The DK 7979.202 PDU metered is designed for VX IT enclosure integration and can be mounted in zero-U space in VX IT or TS IT racks without tools. It measures 450 mm in length and fits 19" rack frames, providing a clean, tool-free installation for compact data center layouts.
The PDU provides per-phase energy measurement from a single infeed, with 230 V AC, up to 16 A, and a total power capacity of 3.7 kW. It features 6 x IEC C13 sockets, IEC C20 input, and a rotatable display for convenient monitoring and configuration directly from the rack.
Yes. With 6 x C13 outlets, 3.7 kW capacity, and per-phase energy data, it supports medium-density rack deployments while enabling precise energy accounting. The option for ambient CAN bus sensors and secure remote access further enhances monitoring in dense, mission-critical environments.
The DK 7979.202 PDU meets CE conformity under EMC Directive 2014/30/EU and EN 62368-1 safety standards. This combination ensures regulatory compliance, electrical safety, and compatibility with modern IT infrastructure requirements.
The metered, per-phase energy data enables accurate chargeback and capacity planning, highlighting energy hotspots and optimizing cooling. Remote configuration via USB and secure web access reduces on-site maintenance time, while replaceable controllers and rotatable displays simplify field service, contributing to lower total cost of ownership over the product lifecycle.
