Rittal 7979214 PDU metered - EN 62368-1 CE EMC
Part Number: 7979214
Manufacturer
Rittal
Part number
7979214
Category
Alt Part Number
DK 7979.214
Quick Summary
PDU metered from Rittal provides per-phase energy measurement for IT racks in data centers. Managing power distribution and energy usage in dense IT environments can be challenging, with visibility gaps and compliance concerns. This unit aligns with EMC Directive 2014/30/EU and EN 62368-1 with CE marking, delivering safety and interoperability for trusted operations. The PDU integrates a network interface and local display to simplify monitoring, while supporting scalable energy governance. Its compact form and zero-U mounting options help maximize rack density, reducing total cost of ownership while enabling precise energy management and data-driven capacity planning.
Product Information
Extended Description

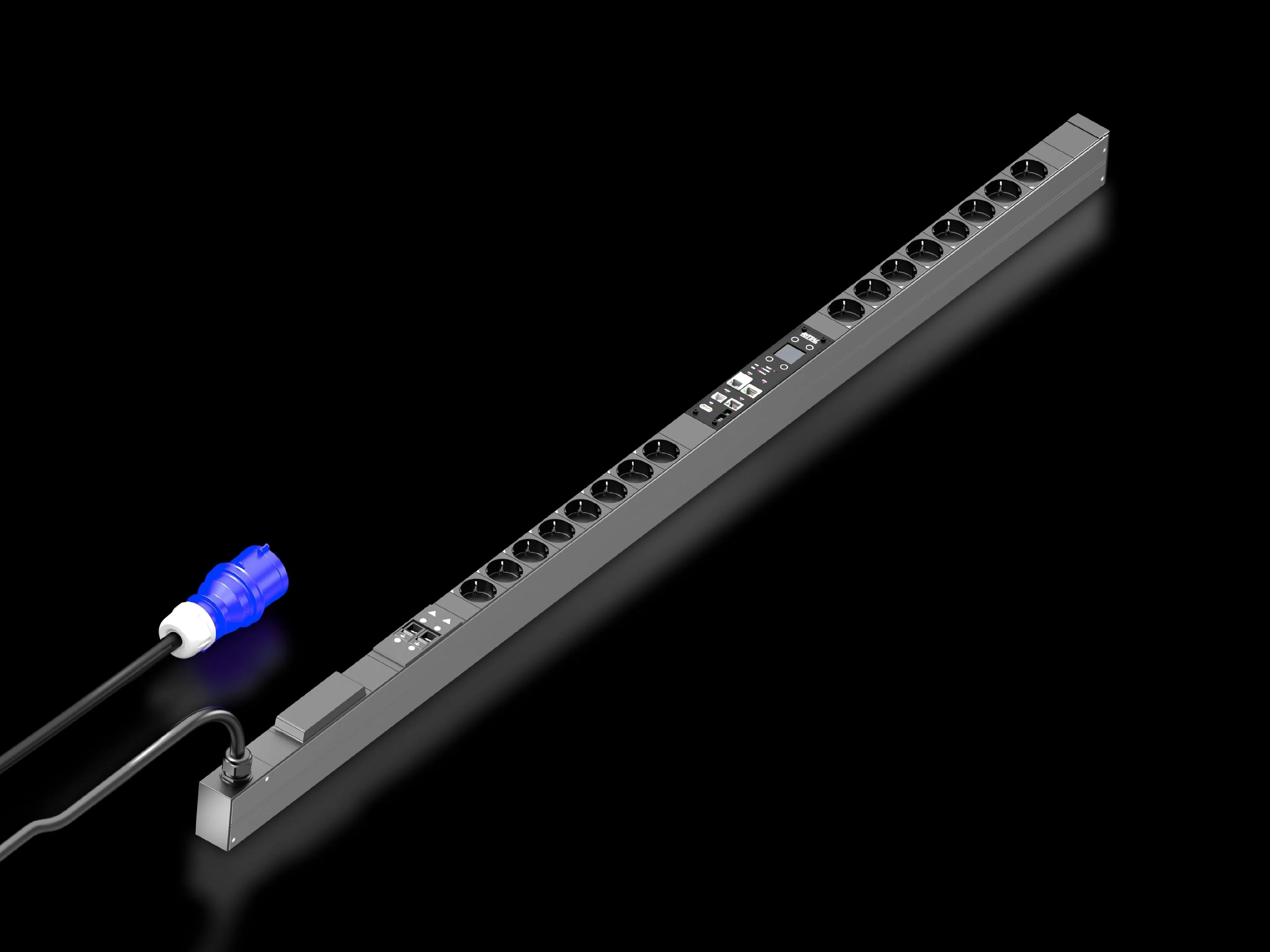

7979214 Rittal: PDU metered 32A/1P CEE 12xC13+4xC19, DK PDU metered, Compact basic power distributor incl. energy mearsuremnt per phase, with network interface and display, WHD: 44x1295x70 mm
Article number
DK 7979.214
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width:Â 44 mm | Depth:Â 70 mm | Length:Â 1,295 mm
No. of sockets and type
16 x earthing-pin (type F, CEE 7/3)
Rated operating voltage
230 V (AC)
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.:Â 1 | Phases per infeed:Â 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Number RJ45 ports for sensor units max
2
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95Â %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Customs tariff number
85366990
EAN
4028177947672
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
PDU metered 32A/1P CEE 12xC13+4xC19, DK PDU metered, Compact basic power distributor incl. energy mearsuremnt per phase, with network interface and display, WHD: 44x1295x70 mm
Feature: Per-phase energy measurement integrated in a compact PDU → Business Impact: Enables precise energy visibility per rack, supports energy accounting and chargeback models → Application: Data centers and IT cabinets requiring per-phase monitoring. Feature: 12x C13 plus 4x C19 outlets on a 1P 230 V, 32 A supply → Business Impact: Higher outlet density with reliable, UPS-ready power distribution → Application: Rack-level power distribution in VX IT enclosures. Feature: Zero-U mounting compatibility for VX IT racks → Business Impact: Maximizes vertical space, reduces installation time and tools → Application: Efficient rack integration in tight data center footprints. Feature: Network interface and rotatable display (180°) with USB mass configuration → Business Impact: Simplified remote management, firmware updates, and centralized configuration → Application: IT rooms requiring scalable asset management. Feature: Optional overvoltage protection, current monitoring, CAN bus sensors → Business Impact: Enhanced protection, ambient monitoring, and proactive maintenance → Application: Industrial IT environments with strict uptime and safety requirements. Feature: Interfaces and protocols (Web server, HTTP/HTTPS, SSH, Telnet, NTP) → Business Impact: Flexible integration with existing IT management and monitoring systems → Application: Enterprise networks needing robust remote access and synchronization.
Get a Quick Quote for a Rittal 7979214
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979214?
Enquire Now
FAQs
The DK 7979.214 is designed for VX IT enclosure frames and can be mounted in zero-U space in VX IT cabinets, enabling vertical integration without extra tools and preserving rack density.
It operates at 230 V AC with a maximum current of 32 A. It provides 12 C13 outlets plus 4 C19 outlets (total 16 sockets) on a 1P infeed, with a 3 m supply cable and a CEE-type connection.
Configuration and data access are supported via USB-A for mass configuration, firmware updates, and data logging, plus a Web server (HTTP/HTTPS), SSH, Telnet, and NTP for remote management.
The unit complies with EMC Directive 2014/30/EU and EN 62368-1 safety standards, with CE marking to ensure safety and interoperability in IT environments.
Per-phase energy measurement enables accurate energy accounting, faster fault diagnosis, and data-driven capacity planning, reducing energy costs and improving uptime through proactive monitoring and control.
