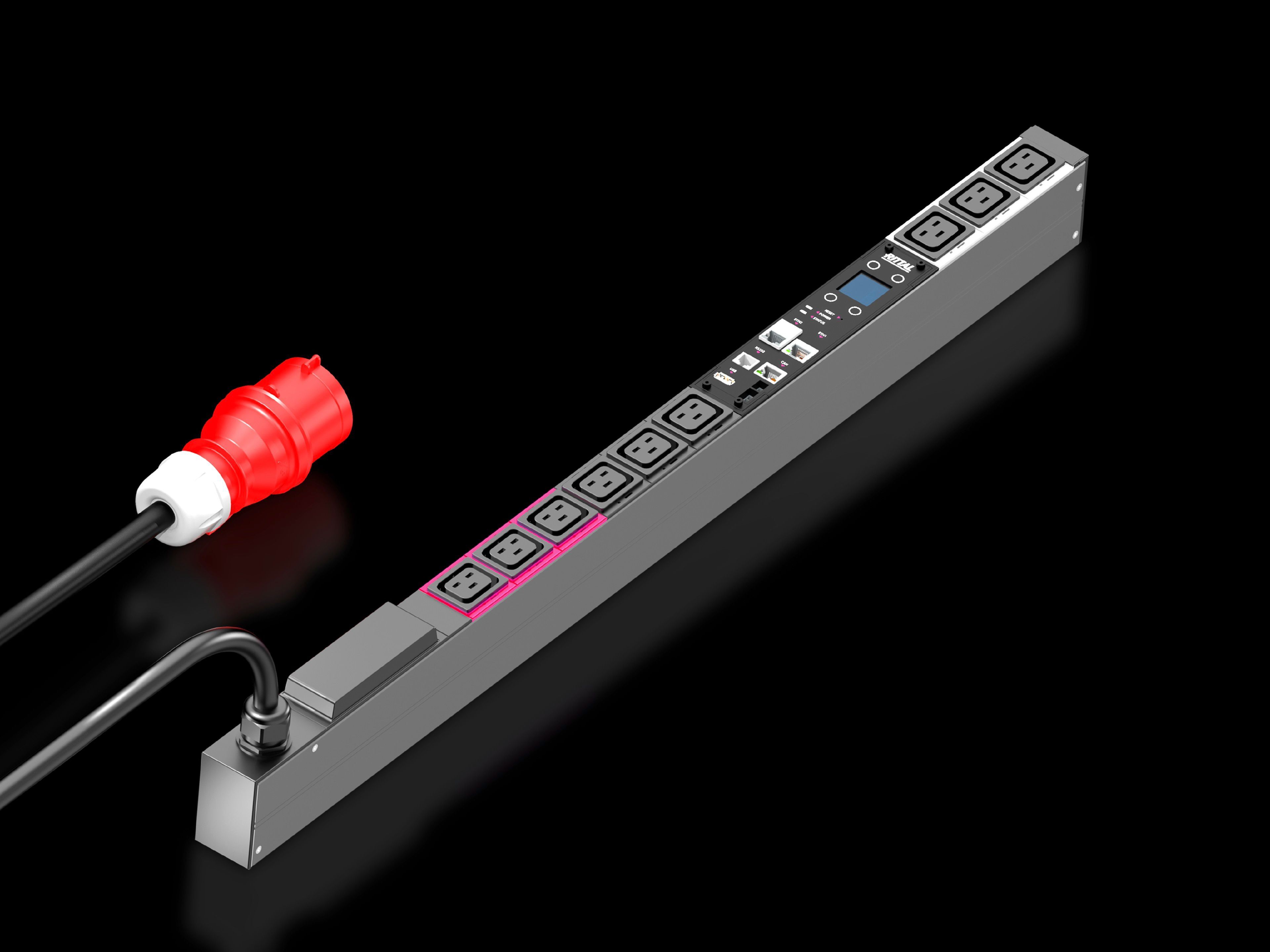

Rittal 7979230 PDU metered - Energy measurement per phase, EN 62368-1
Part Number: 7979230
Manufacturer
Rittal
Part number
7979230
Category
Alt Part Number
DK 7979.230
Quick Summary
Rittal 7979230 PDU metered provides per-phase energy measurement for IT rack power distribution. In dense compute environments, lack of visibility into energy usage drives higher operating costs and can compromise uptime. The unit is certified under EMC Directive 2014/30/EU and EN 62368-1 for safety and interoperability, with a built-in web server for secure configuration and monitoring. This solution enables per-infeed or per-phase measurement, supporting scalable energy management across multi-rack deployments. Optional USB mass configuration and plug‑and‑play integration with VX IT frames simplify deployment and ongoing maintenance, delivering clearer insights for IT and facilities teams and driving improved cost control.
Product Information
Extended Description
7979230 Rittal: PDU metered 16A/3P CEE 9xC19, DK PDU metered, Compact basic power distributor incl. energy mearsuremnt per phase, with network interface and display, WHD: 44x845x70 mm
Article number
DK 7979.230
Product description
High-end power distribution in a compact design for IT network and server racks. With power measurement at the infeed or per phase.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 845 mm
No. of sockets and type
9 x C19
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,200 mm
Packs of
1 pc(s).
Weight/pack
3.8 kg
Customs tariff number
85366990
EAN
4028177947702
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
PDU metered 16A/3P CEE 9xC19, DK PDU metered, Compact basic power distributor incl. energy mearsuremnt per phase, with network interface and display, WHD: 44x845x70 mm
Feature energy measurement per phase and infeed → Business Impact precise energy visibility enables accurate chargeback, reduces waste, and improves capacity planning → Application data centers and enterprise IT rooms requiring per-rack energy transparency. Feature 9 x C19 sockets at 16 A across 400 V → Business Impact supports complete IT rack power needs from a single distributor, lowering the need for multiple PDUs and simplifying wiring → Application server racks and network cabinets with high-density equipment. Feature rotatable display and replaceable controller → Business Impact faster servicing and reduced downtime through easy on-site adjustments and firmware updates → Application maintenance teams in facilities operations. Feature USB 2.0 configuration, firmware updates, and data logging → Business Impact streamlined deployment, secure remote management, and auditable change control → Application IT rooms requiring robust configuration workflows. Feature compact VX IT mounting compatibility (zero-U) → Business Impact saves rack space and accelerates deployment in standardized VX IT frames → Application scalable IT infrastructure for data centers and edge racks. Feature 3 m CEE connection cable and Network interface → Business Impact flexible installation and remote monitoring, enabling proactive energy management and fault detection → Application server rooms and edge compute environments with constrained space.
Get a Quick Quote for a Rittal 7979230
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979230?
Enquire Now
FAQs
Installs in VX IT frames supporting zero-U mounting. Align the PDU length (845 mm) with the frame, attach using the included installation parts, and connect the 3 m CEE cable to the incoming 400 V supply. Use the rotatable display to position the interface for optimal readability, then configure the unit via the USB port or web interface. The compact design and standard 9x C19 sockets simplify wiring and maintenance in tight rack spaces.
The PDU delivers per-phase or infeed energy measurement, enabling visibility of power usage across all 3 phases. With a 16 A rating and a 400 V supply, it reports real-time power, energy, and associated metering data through its web interface and USB logging for audit trails. This supports chargeback, capacity planning, and compliance reporting for IT environments.
Yes. The DK 7979.230 PDU metered is designed for 3-phase 400 V (AC) IT installations, with a 16 A maximum current per circuit and a 3P infeed configuration. It uses CEE connections and includes a 3 m supply cable, making it suitable for standard data center and edge rack deployments that require centralized energy monitoring.
The unit complies with EMC Directive 2014/30/EU and EN 62368-1 safety standards. It supports secure web-based protocols (HTTP/HTTPS/SSL, SSH, Telnet, NTP) and includes configuration via USB, ensuring regulatory alignment and robust interoperability in modern IT environments.
By delivering per-phase energy visibility and centralized monitoring, the PDU enables precise usage analytics, reduces energy waste, improves uptime through better fault detection, and simplifies chargeback or capacity planning. Its compact form factor, VX IT compatibility, and easy remote management reduce deployment time and total cost of ownership for data centers and enterprise IT environments.
