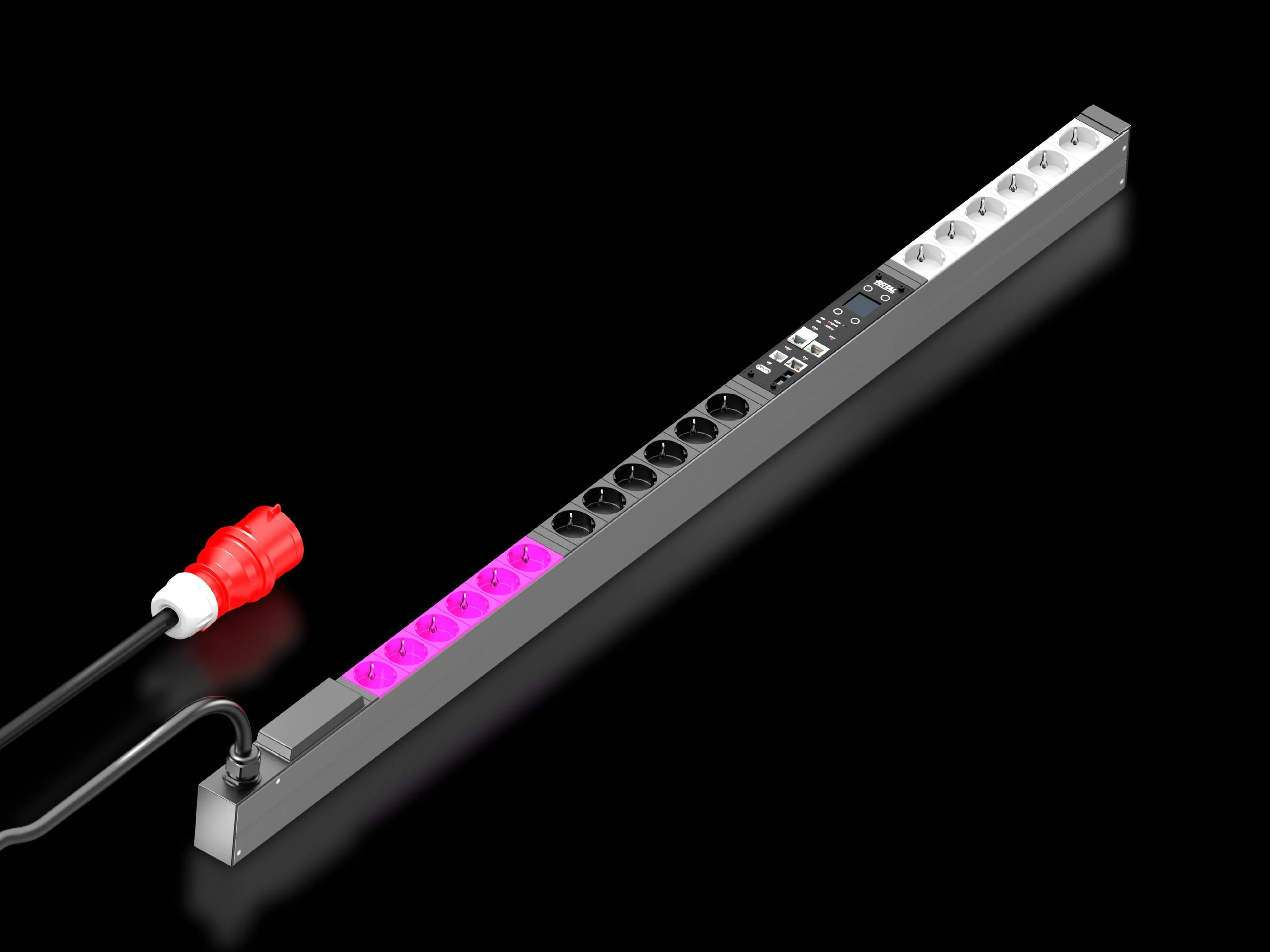

Rittal DK 7979.233 PDU metered - EN 62368-1 Certified
Part Number: 7979233
Manufacturer
Rittal
Part number
7979233
Category
Alt Part Number
DK 7979.233
Quick Summary
Rittal DK 7979.233 PDU metered is a compact energy-aware power distribution unit designed for IT racks. Engineers and operators struggle to see where power is going and to manage outages without impacting uptime. It aligns with EMC Directive 2014/30/EU and EN 62368-1 while offering web/SSH access for secure monitoring and upgrades. Beyond compliance, it delivers per-phase energy data, a rotatable display, and seamless VX IT rack integration to reduce energy waste and simplify deployment. This combination supports IT teams pursuing energy optimization, lifecycle cost reduction, and scalable infrastructure management.
Product Information
Extended Description
7979233 Rittal: DK PDU metered, compact basic power distribution incl. energy measurement per phase, with network interface and display, WLD: 44x1295x70 mm, CEE 7/3: 18 x earthing-pin
Article number
DK 7979.233
Product description
High-end power distribution in a compact design for IT network and server racks. With power measurement at the infeed or per phase.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,295 mm
No. of sockets and type
18 x earthing-pin (type F, CEE 7/3)
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
5.71 kg
Customs tariff number
85366990
EAN
4028177947733
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU metered, compact basic power distribution incl. energy measurement per phase, with network interface and display, WLD: 44x1295x70 mm, CEE 7/3: 18 x earthing-pin
Metered, compact PDU with per-phase energy measurement and a 3-phase infeed delivers clear energy visibility, enabling load balancing and cost control across IT racks. Business impact: improved energy efficiency, reduced cooling overhead, and enhanced capacity planning for data centers. Application: server racks in data centers and industrial IT rooms benefiting from precise load profiling and proactive capacity management. The PDU’s 400 V, 16 A rating and 11 kW power capability align with typical IT rack demands, while 18 sockets arranged for CEE 7/3 outlets simplify connectivity and commissioning. The rotatable 180° display and USB 2.0 interface enable effortless configuration, firmware updates, and data logging, shortening maintenance windows. VX IT compatibility and the zero-U mounting option speed deployment, cutting labor time during rack integration. Optional features such as overvoltage protection, residual current monitoring, CAN bus sensors, and alternative enclosure colors expand protection, monitoring, and aesthetics for diverse facilities. Weight, dimensions, and included assembly parts support straightforward on-site handling and installation planning. In short, it blends performance, compliance, and installation efficiency for modern data centers and industrial IT environments.
Get a Quick Quote for a Rittal 7979233
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979233?
Enquire Now
FAQs
The DK 7979.233 PDU metered is designed for vertical mounting in VX IT frames with zero-U space usage, aligning with VX IT enclosure frame lengths of 1,800 mm or more. It ships with assembly parts and a compact footprint (W 44 mm, D 70 mm, L 1,295 mm) that fits standard IT rack configurations, simplifying on-site installation and reducing tooling needs.
This PDU operates at 400 V (AC) with a rated current of 16 A and a maximum power of 11 kW. It provides energy measurement per phase or infeed, supports 18 outlets with CEE 7/3 (type F) sockets, and includes a 3 m connection cable. USB 2.0 enables mass configuration and data logging, while protocols cover HTTP/HTTPS, SSH, Telnet, and NTP for integration and monitoring.
Yes. The DK 7979.233 PDU metered is aimed at IT racks in data centers, server rooms, and industrial IT environments requiring per-phase energy visibility and remote management. Its compact design, per-phase measurement, and network access support energy optimization, load balancing, and proactive capacity planning across rack-based infrastructures.
The unit complies with EMC Directive 2014/30/EU and EN 62368-1 safety standards, with CE marking. It also carries industry classifications such as ETIM EC002762 and ECLASS 27142604, and includes the EAN 4028177947733 for traceability and procurement workflows.
Maintenance benefits include firmware updates via USB, data logging, and remote monitoring over web/SSH. The per-phase energy data supports accurate consumption reporting and capacity planning, reducing energy waste and cooling costs while improving uptime. The product’s VX IT compatibility and modular options also lower deployment risk and total cost of ownership during rack-scale upgrades.
