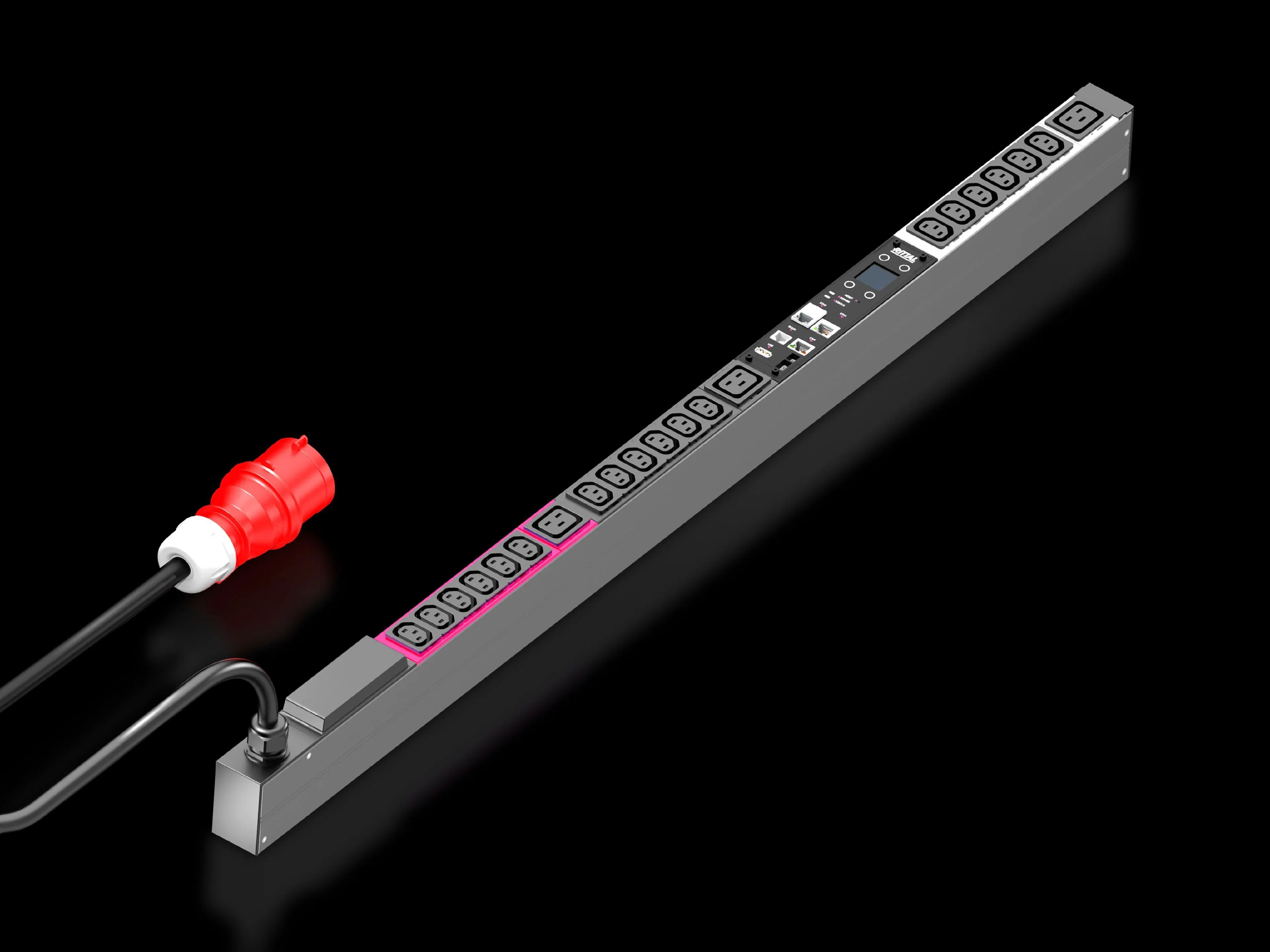

Rittal DK 7979.235 PDU metered - Energy measurement per phase
Part Number: 7979235
Manufacturer
Rittal
Part number
7979235
Category
Alt Part Number
DK 7979.235
Quick Summary
Rittal DK 7979.235 PDU metered provides per-phase energy measurement for IT rack power distribution. This helps control consumption, prevent overloads, and simplify capacity planning in data centers. It carries CE marking under EMC Directive 2014/30/EU and EN 62368-1 safety standards, supporting compliant IT infrastructure. With a rotatable display, USB mass-configuration, and web-based management, it simplifies remote monitoring and firmware updates. By delivering accurate energy data and robust protection options, it supports uptime, reduces cooling costs, and aligns with modern green IT initiatives. This makes it a pragmatic choice for engineers and procurement teams seeking measurable efficiency gains and reliable rack power control.
Product Information
Extended Description
7979235 Rittal: DK PDU metered, compact basic power distribution incl. energy measurement per phase, with network interface and display, WLD: 44x1095x70 mm, IEC 60 320: 18 x C13+ 3 x C19
Article number
DK 7979.235
Product description
High-end power distribution in a compact design for IT network and server racks. With power measurement at the infeed or per phase.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,095 mm
No. of sockets and type
18 x C13 / 3 x C19
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
4.22 kg
Customs tariff number
85366990
EAN
4028177947757
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU metered, compact basic power distribution incl. energy measurement per phase, with network interface and display, WLD: 44x1095x70 mm, IEC 60 320: 18 x C13+ 3 x C19
Feature: Per-phase energy measurement and infeed monitoring → Business Impact: Improves energy visibility and overload prevention → Application: IT racks and VX IT frames, enabling precise load balancing and proactive capacity planning. Long-tail keywords integrated: per-phase energy measurement, energy management for data centers, IT rack power monitoring. Feature: Compact enclosure with 44 mm width and 1095 mm length, 18 x C13 + 3 x C19 sockets → Business Impact: High-density power distribution for space-constrained IT cabinets → Application: Dense IT rack installations in VX IT frames. Feature: Network interface and USB 2.0 for mass configuration and firmware updates → Business Impact: Simplifies remote management, reduces on-site visits, and accelerates deployment → Application: Centralized IT infrastructure management with secure updates. Feature: 400 V AC, 16 A rated current, 11 kW power capacity → Business Impact: Supports high-load IT equipment without overloading → Application: Server and network hardware power distribution in data centers. Feature: Options for Type 3 overvoltage protection, CAN bus ambient sensors, and monitoring → Business Impact: Enhanced safety, environmental monitoring, and proactive protection → Application: Enterprise IT rack protection and green data center initiatives. Feature: Protocols and interfaces including HTTP(S), SSH, Telnet, NTP, and USB mass config → Business Impact: Interoperable management with existing IT systems and accurate timekeeping → Application: Remote configuration and synchronized logging for audits and compliance.
Get a Quick Quote for a Rittal 7979235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979235?
Enquire Now
FAQs
Install the DK 7979.235 PDU metered in a VX IT enclosure frame, ensuring alignment with the enclosure's height (≥ 1,200 mm) and mounting angles. Connect the 3 m CEE cable to a 400 V three‑phase supply. Use the rotatable display for convenient orientation and leverage the USB-A port for initial mass configuration and firmware updates before commissioning.
The PDU operates at 400 V AC with a maximum current of 16 A and a power capacity of 11 kW. It provides 18 C13 sockets and 3 C19 sockets, arranged for IT rack density. The unit uses a 3‑phase infeed and includes a 3 m connection cable with a CEE connector, suitable for standard data center electrical infrastructure.
Yes. It features per‑phase energy measurement, infeed energy monitoring, and a network interface plus mass configuration via USB. Management protocols include HTTP/HTTPS and SSH, with data logging and time synchronization via NTP. This enables energy transparency, load profiling, and proactive capacity planning for data center IT racks.
This PDU complies with EMC Directive 2014/30/EU and EN 62368‑1 safety standards, with CE marking for interoperability and safety. These certifications ensure regulatory compliance, electrical safety, and compatibility with modern IT equipment, reducing risk during deployment and facilitating audit-ready documentation for IT infrastructure projects.
By delivering per‑phase energy data and remote management, it enables precise energy accounting, reduces wasted power, and supports targeted cooling optimization. The ability to monitor, log, and report energy usage directly from the rack simplifies capacity planning, lowers operating costs, and can shorten payback times for IT modernization projects.
