Rittal 7979239 PDU - Energy measurement per phase EN62368-1
Part Number: 7979239
Manufacturer
Rittal
Part number
7979239
Category
Alt Part Number
DK 7979.239
Quick Summary
Rittal 7979239 PDU with energy measurement per phase powers IT racks in data centers. Operators often lack visibility into per-phase loads, risking overloads and wasted energy. This unit complies with EMC Directive 2014/30/EU and EN 62368-1, and carries CE marking for safe, regulatory-compliant operation. Designed for IT networks and server racks, it enables granular energy monitoring, scalable integration, and accurate chargeback reporting. With its robust aluminium housing and a 3 m input lead, installers gain both durability and flexibility in challenging data-center layouts. The optional expansion features, such as ongoing sensor integration and optional overvoltage protection, help future-proof installations. Its web server and SSH access streamline remote management for centralized IT operations.
Product Information
Extended Description

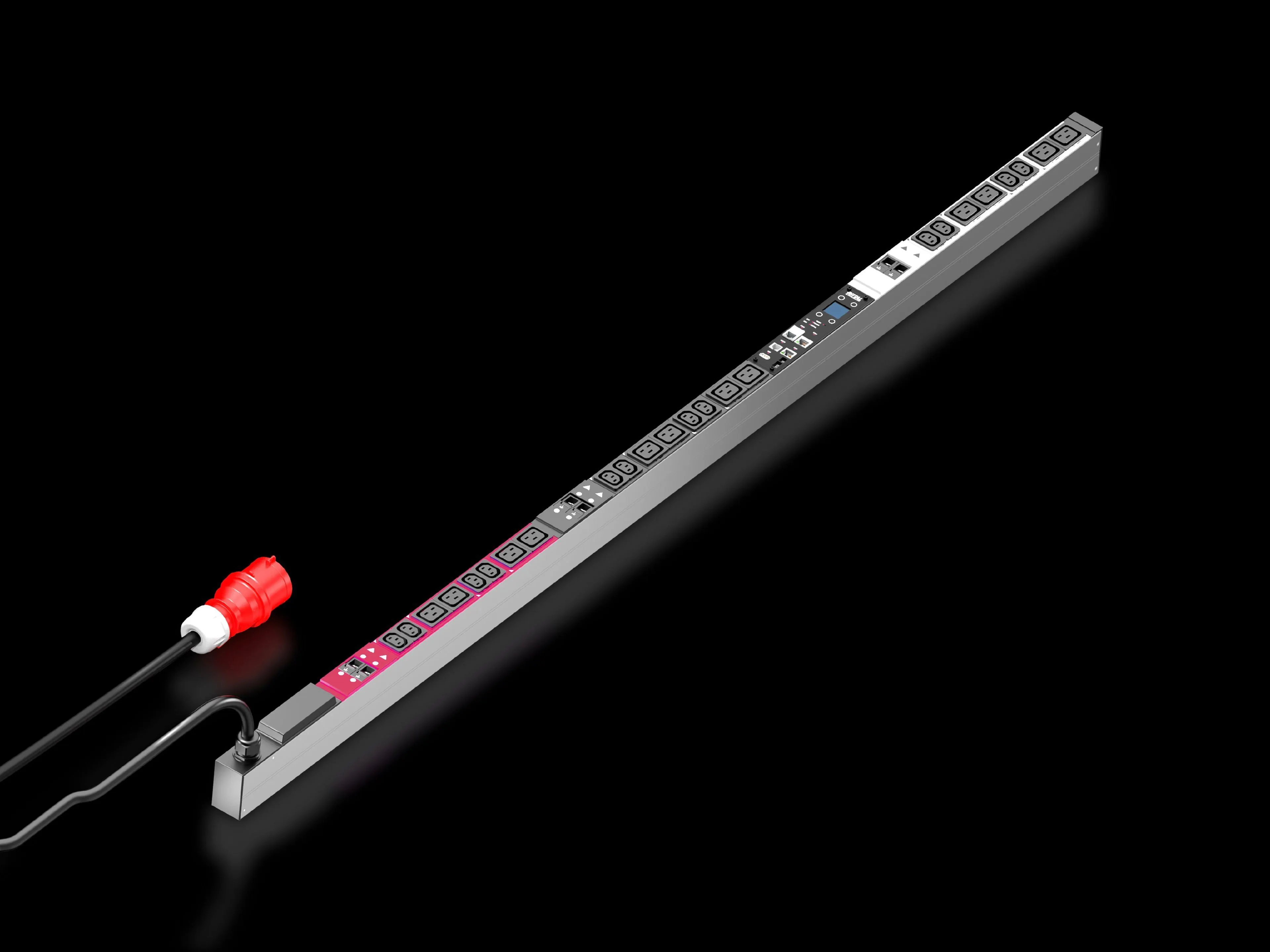

7979239 Rittal: PDU metered 32A/3P CEE 12xC13+12xC19, DK PDU metered, Compact basic power distributor incl. energy mearsuremnt per phase, with network interface and display, WHD: 44x1695x70 mm
Article number
DK 7979.239
Product description
High-end power distribution in a compact design for IT network and server racks. With power measurement at the infeed or per phase.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,695 mm
No. of sockets and type
12 x C13 / 12 x C19
Rated operating voltage
400 V (AC)
Rated current (max.)
32 A
Power consumption
22 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Number RJ45 ports for sensor units max
6
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 2,000 mm
Packs of
1 pc(s).
Weight/pack
5.8 kg
Customs tariff number
85366990
EAN
4028177947795
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
PDU metered 32A/3P CEE 12xC13+12xC19, DK PDU metered, Compact basic power distributor incl. energy mearsuremnt per phase, with network interface and display, WHD: 44x1695x70 mm
Feature → Business Impact → Application: Per-phase energy measurement provides visibility that enables precise capacity planning and cost control; reduces peak demand penalties and improves chargeback accuracy; Application: data centers and multi-tenant server rooms. Feature → Business Impact → Application: Compact 44x1695x70 mm footprint with zero-U mounting enables tool-free installation in VX IT racks; reduces rack footprint and accelerates deployment; Application: IT cabinet upgrades. Feature → Business Impact → Application: 180° rotatable, replaceable display/controller unit simplifies maintenance and serviceability; lowers downtime and extends product life; Application: mixed IT environments. Feature → Business Impact → Application: USB 2.0 for mass configuration, firmware updates, and data logging; speeds provisioning and ensures audit-ready configurations; Application: large-scale DC deployments. Feature → Business Impact → Application: Web server access with HTTP/HTTPS, SSH, Telnet, and NTP enables remote monitoring and integration with IT operations; enhances visibility and control; Application: data center management. Feature → Business Impact → Application: Optional overvoltage protection, residual current monitoring, and CAN bus sensors support scalable safety and monitoring; improves risk management and predictive maintenance; Application: critical systems.
Get a Quick Quote for a Rittal 7979239
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979239?
Enquire Now
FAQs
The DK 7979.239 PDU is designed for vertical mounting and can be attached in the zero-U space of VX IT racks with tool-free installation, enabling compact, clean rack topology and fast deployment.
It operates at 400 V AC with a maximum current of 32 A per infeed on a 3P supply, using a 3 m CEE input cable to deliver reliable IT rack power.
Yes. The PDU provides energy measurement per phase or infeed, with a display and USB/Web interfaces for data logging and integration into monitoring systems.
It complies with EMC Directive 2014/30/EU and EN 62368-1, carrying CE marking to support compliant operation in EU data centers.
Interfaces include a USB 2.0 port for mass configuration and data logging, plus a Web server with HTTP/HTTPS, SSH, Telnet, and NTP for remote monitoring and configuration.
