Rittal DK 7979.240 PDU metered - EN 62368-1
Part Number: 7979240
Manufacturer
Rittal
Part number
7979240
Category
Alt Part Number
DK 7979.240
Quick Summary
Rittal DK 7979.240 PDU metered provides high-precision per-phase energy measurement for IT racks. This compact power distributor integrates energy data collection with a built-in display and network interface, delivering clear visibility across the entire rack. Many data centers struggle with hidden energy waste and uneven load distribution, complicating capacity planning and increasing operational costs. With per-phase measurement, operators can pinpoint hotspots, optimize cooling, and improve energy efficiency. The unit complies with EMC Directive 2014/30/EU and EN 62368-1 standards, delivering a robust foundation for regulatory alignment. By enabling USB configuration, remote monitoring, and straightforward installation into VX IT enclosures, it translates technical detail into tangible business value while reducing risk and downtime.
Product Information
Extended Description

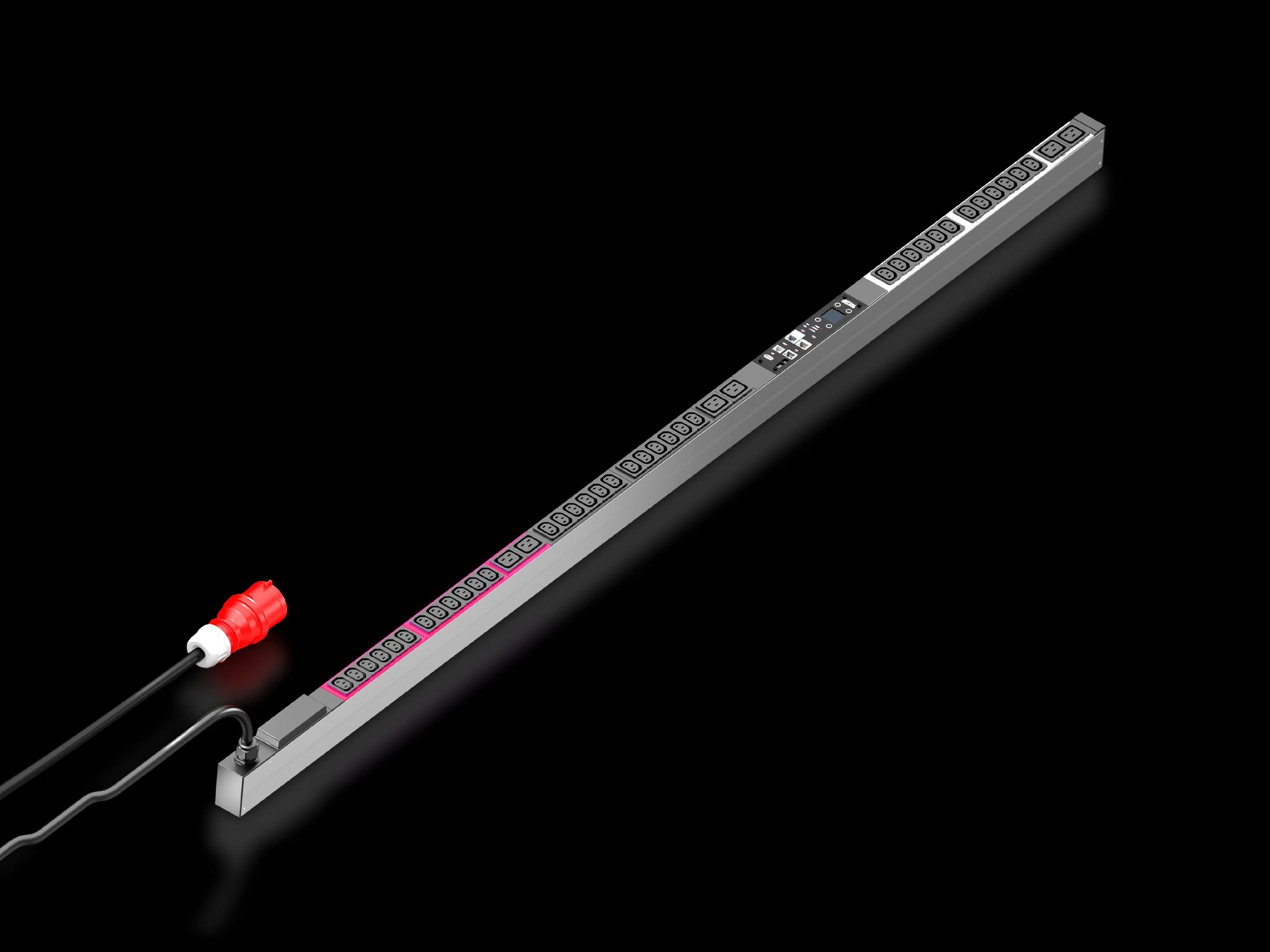

7979240 Rittal: PDU metered 16A/3P CEE 36xC13+6xC19, DK PDU metered, Compact basic power distributor incl. energy mearsuremnt per phase, with network interface and display, WHD: 44x1895x70 mm
Article number
DK 7979.240
Product description
High-end power distribution in a compact design for IT network and server racks. With power measurement at the infeed or per phase.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,895 mm
No. of sockets and type
36 x C13 / 6 x C19
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 2,000 mm | Enclosure type: VX IT 19" mounting angles: ≥ 2,200 mm
Packs of
1 pc(s).
Weight/pack
6.5 kg
Customs tariff number
85366990
EAN
4028177947801
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
PDU metered 16A/3P CEE 36xC13+6xC19, DK PDU metered, Compact basic power distributor incl. energy mearsuremnt per phase, with network interface and display, WHD: 44x1895x70 mm
Metered energy per phase is embedded in the DK 7979.240, allowing exact monitoring of power draw at the infeed or per phase. This translates to actionable data for capacity planning, chargeback, and cooling optimization, reducing waste and improving service levels in data centers. In practice, facilities teams gain visibility without additional meters or complex wiring. The 36x C13 and 6x C19 outlets support full IT rack power distribution needs, enabling servers, storage, and networking gear to be powered from a single, centralized PDU while preserving cable management and clearance. The business impact is straightforward: fewer outages caused by overloaded outlets and more predictable maintenance windows, supported by long-term operating cost reductions. The rotatable display/controller unit simplifies local configuration and diagnostics, especially in dense rack environments where access can be constrained. USB 2.0 for mass configuration and firmware updates accelerates deployment, reduces on-site service visits, and enables data logging for audits. The zero-U mounting capability for VX IT enclosures saves valuable rack space, improving density and reducing total cost of ownership. Optional overvoltage protection and sensor integration provide proactive risk management, while the standard operating range of 5 °C to 50 °C and 10–95% relative humidity ensures reliability in data-center and edge scenarios. Together, these features translate to enhanced operational efficiency, compliant infrastructure, and a smoother path to scalability in modern IT environments.
Get a Quick Quote for a Rittal 7979240
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979240?
Enquire Now
FAQs
Yes. The DK 7979.240 is designed for vertical mounting and can be attached in the zero-U space of VX IT enclosures or TS IT racks, enabling space-efficient installation without tools.
It operates at 400 V AC with a maximum current of 16 A, using a 3P supply and a 3 m CEE connection cable. It provides 36x C13 and 6x C19 outlets for IT equipment power needs.
The unit complies with EMC Directive 2014/30/EU and EN 62368-1, ensuring regulatory alignment and safety for commercial IT deployments.
The PDU offers a USB 2.0 interface for mass configuration and firmware updates, plus a built-in web server for remote monitoring and data logging, simplifying lifecycle management.
Dimensions are Width 44 mm, Depth 70 mm, Length 1,895 mm, with a weight of 6.5 kg per pack. It fits VX IT enclosure frames and is compatible with standard VX IT 19" mounting angles.
