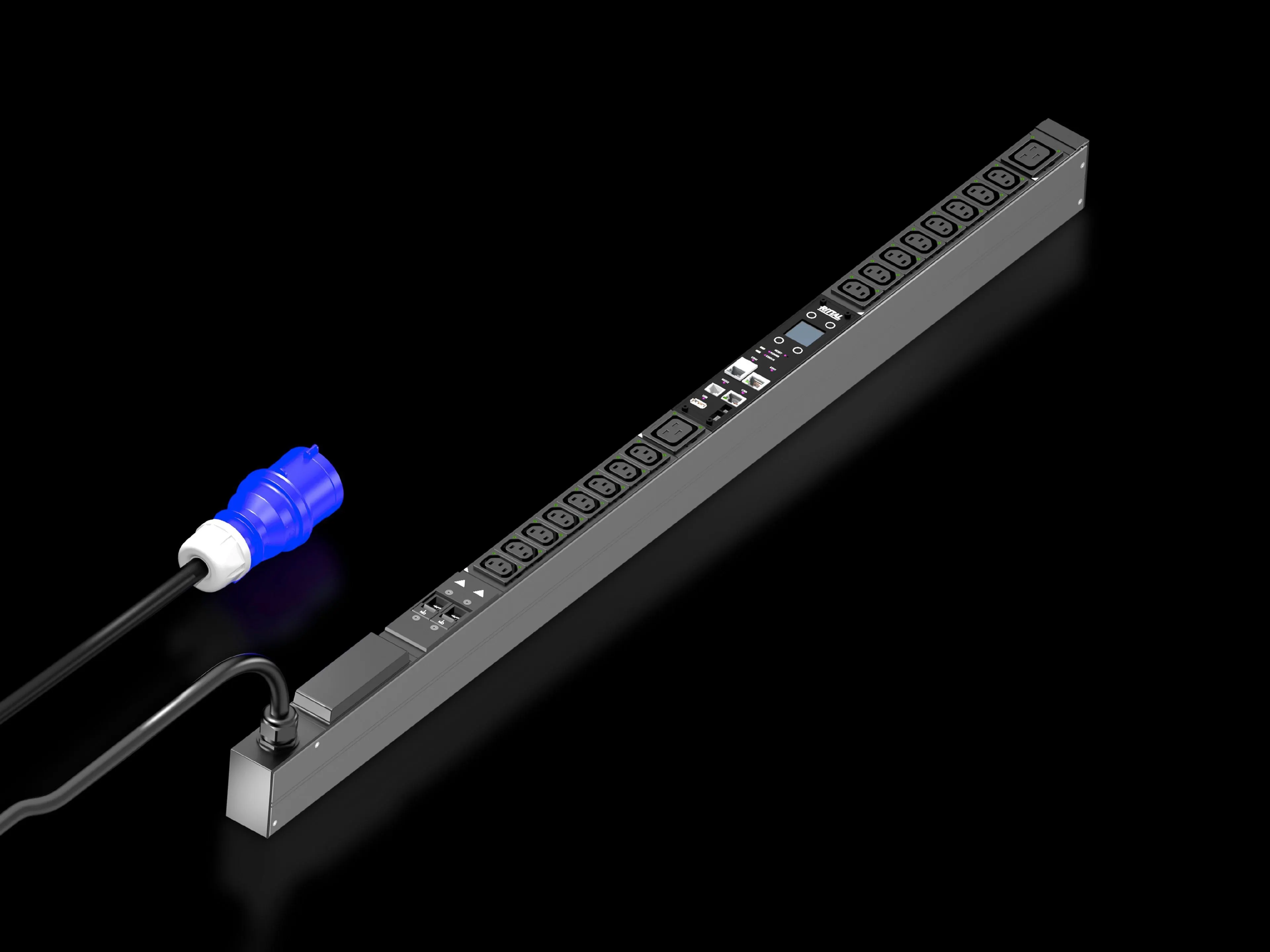

Rittal DK 7979.312 PDU - EN 62368-1 Certified
Part Number: 7979312
Manufacturer
Rittal
Part number
7979312
Category
Alt Part Number
DK 7979.312
Quick Summary
Rittal DK 7979.312 PDU powers IT racks with per-phase energy measurement for precise load visibility. IT teams often wrestle with unbalanced loads, limited space, and manual maintenance that wastes energy and time. It carries EN 62368-1, CE marking and EMC Directive 2014/30/EU compliance to support compliant IT infrastructure. By combining a web-enabled interface with PoE-powered monitoring and modular protection options, it delivers scalable IT rack power management and reduced operating costs across data centers and server rooms.
Product Information
Extended Description
7979312 Rittal: DK PDU switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1095x70mm, IEC 60 320: 16x C13 + 2x C19
Article number
DK 7979.312
Product description
High-end power distribution in a compact design for IT network and server racks. With switching function and power measurement at the infeed or per phase.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,095 mm
No. of sockets and type
16 x C13 / 2 x C19
Rated operating voltage
230 V (AC)
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Number RJ45 ports for sensor units max
2
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
4.5 kg
Customs tariff number
85369095
EAN
4028177947870
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1095x70mm, IEC 60 320: 16x C13 + 2x C19
Energy measurement per phase provides precise load insight, enabling accurate chargeback, peak-load management, and energy reporting for IT budgets. This feature supports IT governance and data-driven capacity planning, making it ideal for server rooms and VX IT enclosures. Individually switchable output slots allow selective power cycling and maintenance without disrupting other devices, reducing downtime and extending component life. Remote management is enabled by a fully redundant Ethernet interface with PoE and an onboard web server, enabling seamless integration with DCIM systems and environmental sensors for proactive alerts. The compact WLD footprint (44x1095x70 mm) supports zero-U mounting in VX IT frames, maximizing rack density while maintaining accessibility for cabling and maintenance. Overvoltage protection options and monitoring capabilities align with industry standards, improving safety while simplifying compliance audits. A rotatable 180° display and replaceable controller simplify on-site servicing, lowering maintenance costs and downtime in busy IT environments.
Get a Quick Quote for a Rittal 7979312
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979312?
Enquire Now
FAQs
Install the DK 7979.312 PDU in the VX IT frame’s zero-U space using its compact 44x1095x70 mm footprint. The package includes assembly parts and a 3 m input cable with CEE connector for tool-free mounting in compatible VX IT enclosures. Ensure adequate clearance for cooling and access to the rotatable display during maintenance.
The PDU operates at 230 V AC with a maximum current of 32 A and a power rating of 7.4 kW. It provides energy measurement per phase and includes 16 x C13 outlets plus 2 x C19 outlets, suitable for IT racks and mixed device loads. Cable length is 3 m, and the infeed is 1-phase, with a CEE connector gastromically matching rack power feeds.
Yes. The DK 7979.312 includes a fully redundant Ethernet interface (10/100/1000 Mbit/s) with 2x RJ45 and one PoE port, plus a web server supporting HTTP/HTTPS/SSL, SSH, Telnet, and NTP. Remote management includes per-phase energy data, sensor integration options, and the ability to log events for DCIM or ITSM workflows.
The PDU can be configured with Type 3 overvoltage protection and interchangeable arresters for operational protection. It complies with EMC Directive 2014/30/EU and EN 62368-1 standards, and carries CE marking. These features help ensure safety, regulatory compliance, and interoperability within modern data centers and IT rooms.
The combination of per-phase energy monitoring, remote management, and zero-U mounting reduces energy waste and maintenance overhead. Replacing a controller or display on-site minimizes downtime, while centralized monitoring supports proactive capacity planning, improving ROI through energy savings, simplified compliance, and faster incident response in IT environments.
