Rittal DK 7979.315 PDU - EN 62368-1 CE EMC Certified
Part Number: 7979315
Manufacturer
Rittal
Part number
7979315
Category
Alt Part Number
DK 7979.315
Quick Summary

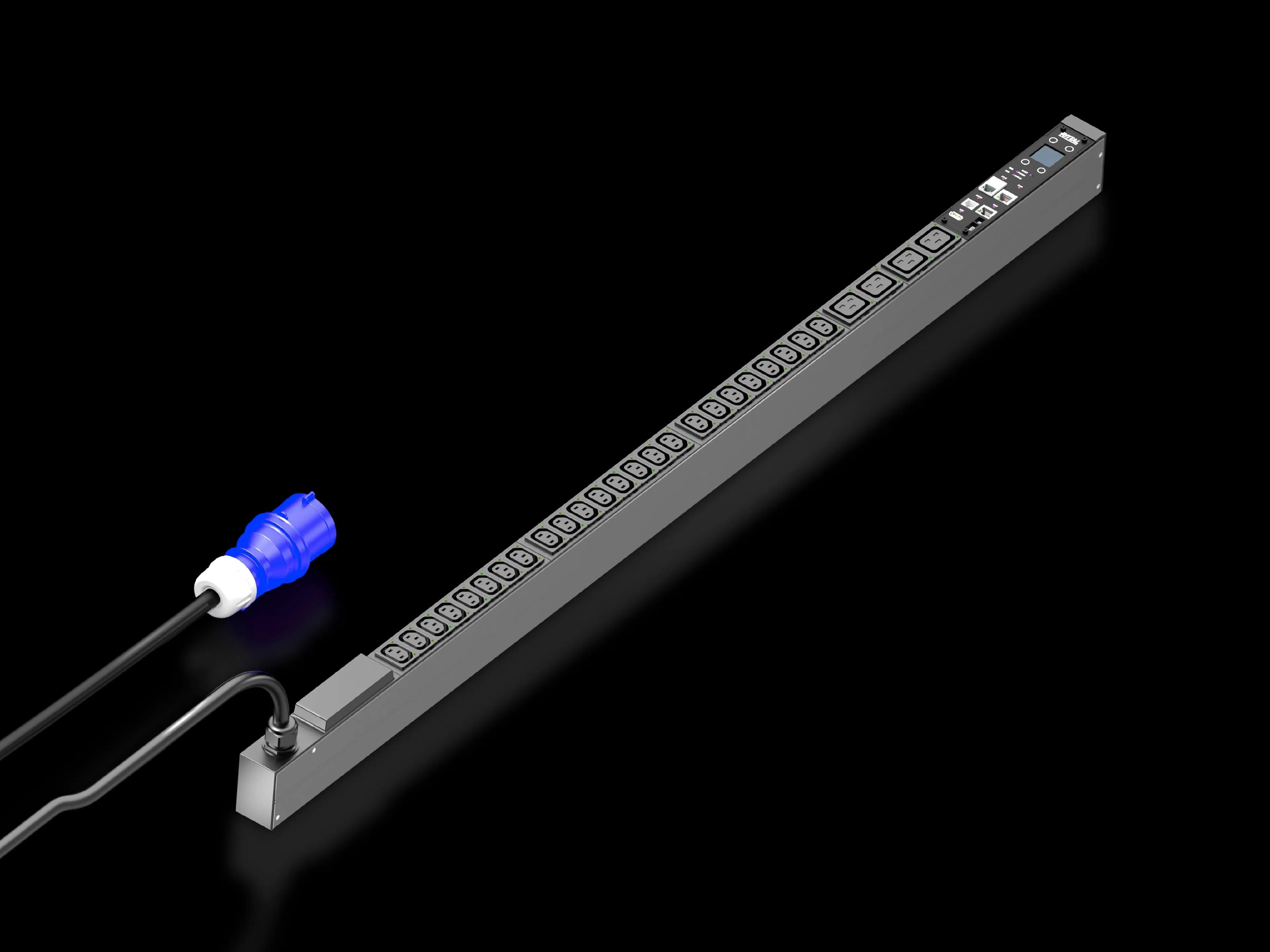

Rittal DK 7979.315 PDU is a high-end power distribution unit for IT racks that provides per-phase energy measurement and individually switchable outlets. This solution directly addresses the common pain point of limited visibility into rack power usage and unbalanced loads, which can complicate capacity planning and fault isolation. The unit complies with CE marking, EN 62368-1 safety standards, and the EMC Directive, helping you meet essential regulatory requirements. In addition to precise metering, a network interface and rotatable display support remote monitoring and fast, informed decision-making, while VX IT mounting compatibility reduces installation time. The result is scalable, reliable rack power management that drives operational efficiency and lower energy costs in data centers and enterprise IT environments.
Product Information
Extended Description
7979315 Rittal: DK PDU switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1295x70 mm, IEC 60 320: 24x C13 + 4x C19
Article number
DK 7979.315
Product description
High-end power distribution in a compact design for IT network and server racks. With switching function and power measurement at the infeed or per phase.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,295 mm
No. of sockets and type
24 x C13 / 4 x C19
Sockets
24 x C 13 | 4 x C 19
Rated operating voltage
230 V (AC)
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
4.98 kg
Customs tariff number
85366990
EAN
4028177947900
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1295x70 mm, IEC 60 320: 24x C13 + 4x C19
Feature: Per-phase energy measurement and individually switchable outlets → Business Impact: Enables granular load visibility and targeted outlet control, reducing energy waste and preventing overloads; Application: Data centers, server rooms, telecom cabinets. Feature: Fully redundant Ethernet interface and PoE-capable management → Business Impact: Improves uptime and simplifies remote management without separate power sources; Application: IT operation centers, monitored rack environments. Feature: Rotatable 180° display and web server access → Business Impact: Flexible mounting and intuitive local/global control, accelerating maintenance and issue resolution; Application: Rack installations with tight access. Feature: Compact WLD 44x1295x70 mm and zero-U mounting compatibility → Business Impact: Saves rack space and speeds installation in VX IT enclosures; Application: High-density IT racks. Feature: 24x C13 / 4x C19 sockets and 230 V, 16 A rating → Business Impact: Supports standard IT workloads with robust power distribution; Application: Dense server blades, storage arrays, network gear. Feature: Optional Type 3 overvoltage protection, residual current measurement and CAN bus sensors → Business Impact: Strengthens safety, visibility, and ambient monitoring; Application: Compliance-driven data centers and industrial IT deployments.
Get a Quick Quote for a Rittal 7979315
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979315?
Enquire Now
FAQs
The DK PDU switched is designed for VX IT enclosure frames and supports zero-U mounting. Install by aligning the enclosure rails, sliding the PDU into the frame, securing with provided assembly parts, connecting the 3 m CEE input cable, and configuring the network settings via the rotatable display or web interface. Ensure the load does not exceed 16 A per phase and verify proper outlet sequencing for your critical devices.
It provides per-phase energy measurement and individual outlet switching, enabling precise visibility into load distribution and targeted power management. This helps balance rack power, prevent outages, and support chargeback or energy accounting in data centers. The combination of metering, remote control, and compact form factor is ideal for high-density IT environments.
Yes. The product carries CE marking and complies with EN 62368-1 safety standards as well as the EMC Directive 2014/30/EU. This ensures regulatory alignment for IT environments and helps meet safety and emissions requirements in many regions, reducing compliance risk for your deployments.
Absolutely. The PDU features a fully redundant Ethernet interface (2x RJ45, 1x PoE) and a built-in web server supporting HTTP, HTTPS, and SSL, plus SSH and Telnet for advanced access. This enables secure remote monitoring, sequential disconnection of outputs, and centralized power management across multiple racks.
The unit supports Type 3 overvoltage protection with interchangeable arresters, residual current measurement per infeed/phase/fuse, and CAN bus sensors for ambient monitoring. These options enhance safety, enable detailed environmental sensing, and improve compliance with monitoring requirements in complex IT and data center ecosystems.
