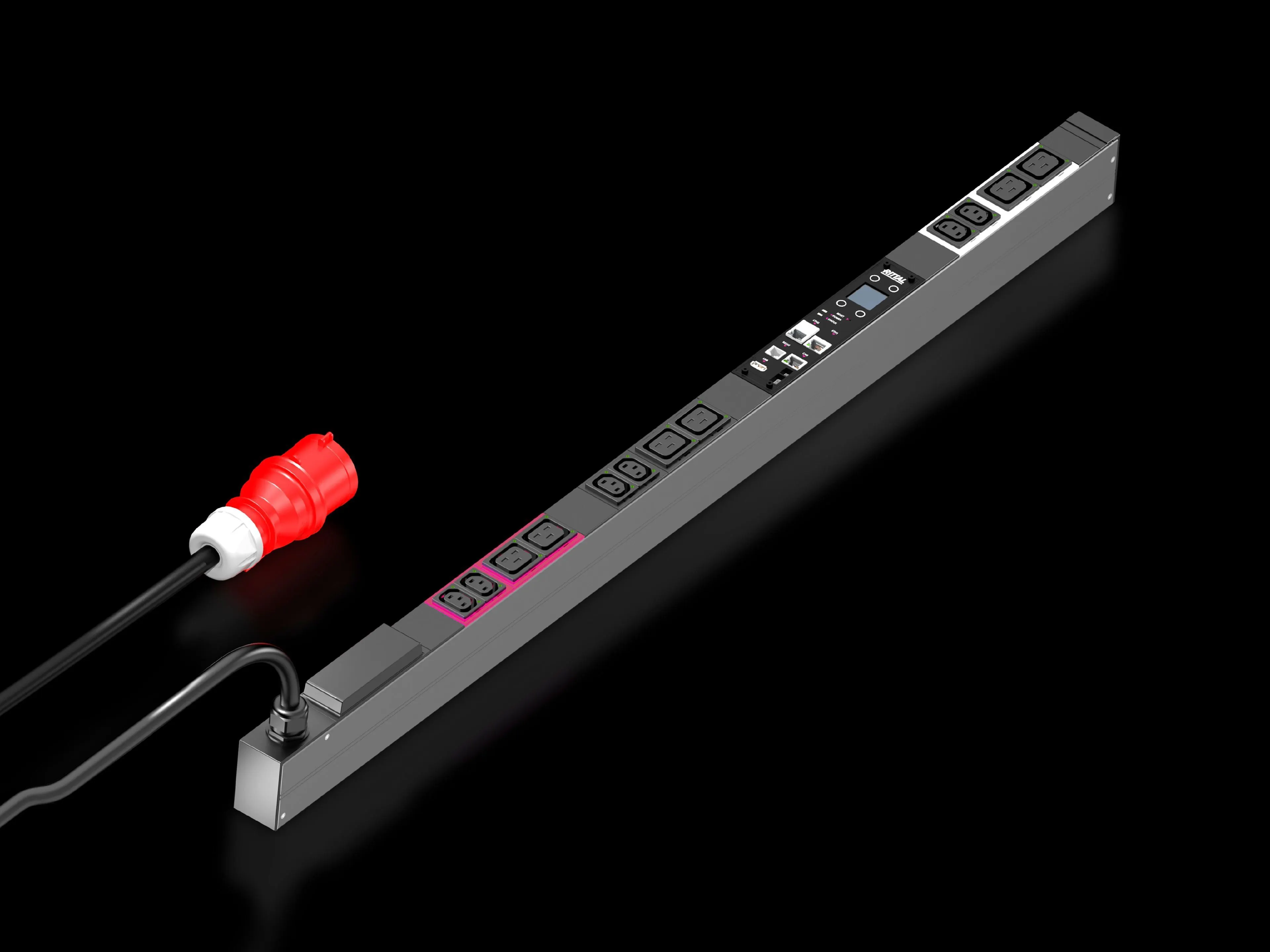

Rittal DK 7979.332 PDU - Energy measurement per phase
Part Number: 7979332
Manufacturer
Rittal
Part number
7979332
Category
Alt Part Number
DK 7979.332
Quick Summary
The Rittal DK 7979.332 PDU provides switched power distribution with per-phase energy measurement for IT racks in data centers. Engineers often struggle to see and control power at the slot level in dense racks, risking inefficiency, overheating, and unplanned downtime. CE compliance and EN 62368-1 certification support regulator audits, while the modular web server and SSL/TLS protection help maintain data integrity. Its zero-U mounting for VX IT racks eliminates tool requirements and frees rack space, while the rotatable display improves local configuration and fault diagnosis. This configuration supports data center power distribution and energy management with remote monitoring, enabling faster incident response and sustained energy efficiency.
Product Information
Extended Description
7979332 Rittal: DK PDU switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1095x70 mm, IEC 60 320: 6x C13 + 6x C19
Article number
DK 7979.332
Product description
High-end power distribution in a compact design for IT network and server racks. With switching function and power measurement at the infeed or per phase.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,095 mm
No. of sockets and type
6 x C13 / 6 x C19
Sockets
6 x C 13 | 6 x C 19
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,200 mm
Packs of
1 pc(s).
Customs tariff number
85366990
EAN
4028177947948
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1095x70 mm, IEC 60 320: 6x C13 + 6x C19
Feature: Per-phase energy measurement and switched output slots; Business Impact: Provides granular visibility and control over power to individual devices, reducing energy waste and enabling rapid fault isolation; Application: IT server racks in data centers benefit from precise load balancing and per-slot fault management. Feature: 6x C13 / 6x C19 sockets with 400 V, 16 A, and up to 11 kW capacity; Business Impact: Supports high-density IT workloads while maintaining safe current margins and easy scalability; Application: Dense rack environments with mixed equipment categories. Feature: Fully redundant Ethernet interface with PoE and a rotatable 180° display; Business Impact: Reliable remote monitoring and secure management from multiple networks, with flexible on-site configuration; Application: NMS integration and field service. Feature: Zero-U mounting in VX IT racks; Business Impact: Tool-free installation and maximal internal cabinet space utilization, accelerating deployment in large-scale facilities; Application: Data center rollouts and IT cabinet upgrades. Feature: Optional protections and monitoring (type 3 overvoltage protection with arrester, residual current measurement type B, CAN bus sensors); Business Impact: Enhanced safety, regulatory compliance, and ambient monitoring; Application: Industrial IT environments requiring robust protection and proactive maintenance.
Get a Quick Quote for a Rittal 7979332
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979332?
Enquire Now
FAQs
The DK 7979.332 PDU supports vertical, zero-U mounting within Rittal VX IT racks, enabling tool-free installation in the available space of the enclosure. It ships with assembly parts and is designed to integrate with VX IT frames, making deployment quick and scalable across multi-rack data center environments.
The PDU provides energy measurement per phase, offering visibility into phase balance and load trends. Combined with a web interface and network access, you can export energy data to monitoring systems, perform per-slot fault analysis, and implement better load balancing and capacity planning to reduce energy costs and improve reliability.
Yes. The product complies with EMC Directive 2014/30/EU and EN 62368-1, aligning with regulatory and safety requirements for IT power distribution. These certifications help with audits, reduce compliance risk in data centers, and support secure deployment in regulated environments.
The PDU operates at 400 V AC with a maximum current of 16 A, delivering up to 11 kW. It includes 6x C13 and 6x C19 receptacles, providing versatile outlet options for mixed IT equipment within a single enclosure and supporting dense rack configurations.
Beyond distribution, the DK 7979.332 offers a fully redundant Ethernet interface with PoE, a rotatable display for local setup, and optional features like Type 3 overvoltage protection with interchangeable arresters, residual current measurement (type B), and CAN bus sensors for ambient monitoring, enabling proactive maintenance and enhanced safety.
