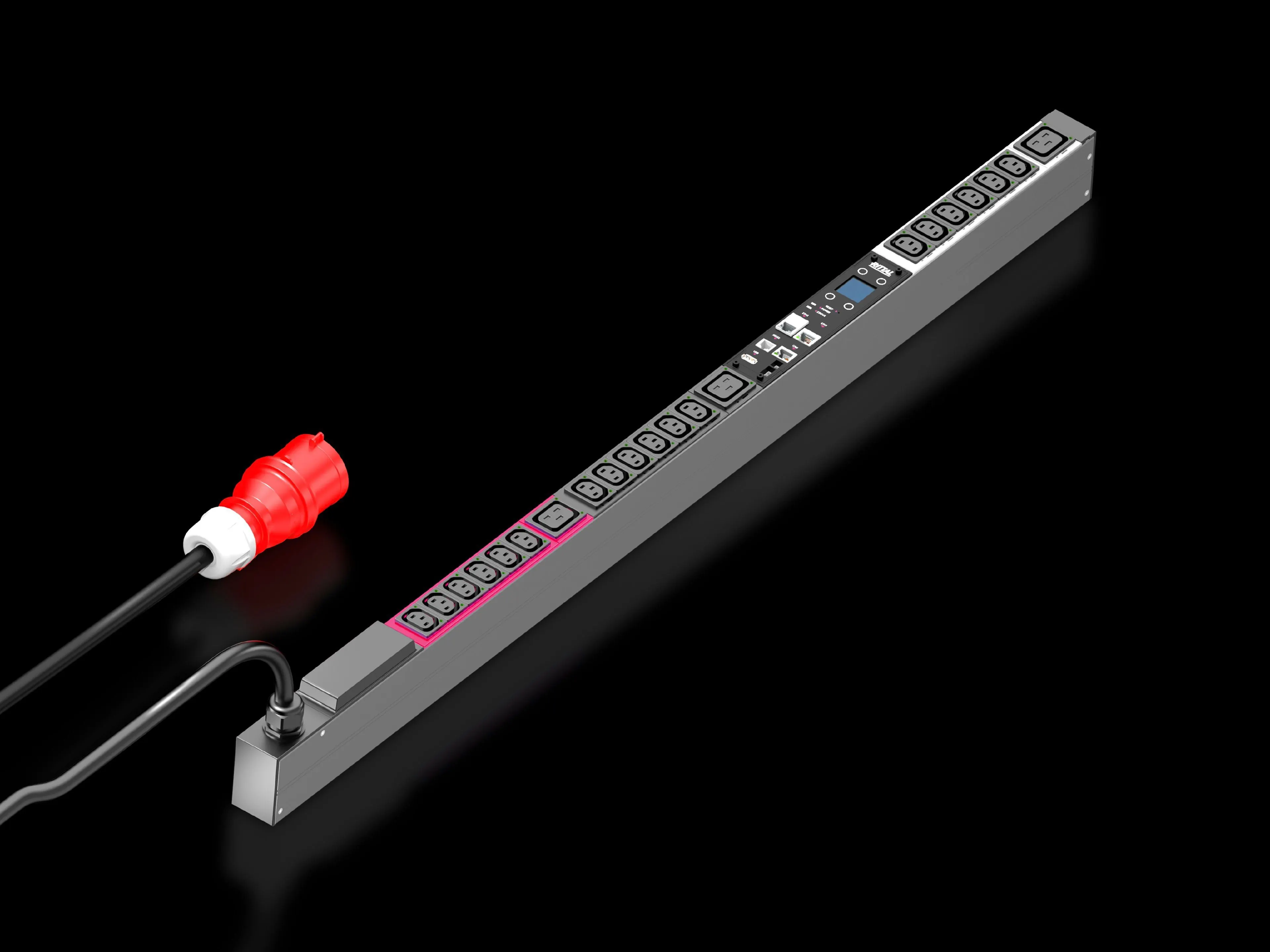

Rittal DK 7979.335 PDU - EN 62368-1, CE Certified
Part Number: 7979335
Manufacturer
Rittal
Part number
7979335
Category
Alt Part Number
DK 7979.335
Quick Summary
Rittal DK 7979.335 PDU provides advanced per-phase power distribution for IT racks in data centers. Admin teams struggle with visibility and reliability of rack power, especially in multi-site deployments. It complies with CE and EMC Directive 2014/30/EU plus EN 62368-1, supporting safe operation in IT environments. As a compact, networked PDU with energy measurement and display, it enhances energy visibility for capacity planning, supports remote monitoring, and reduces troubleshooting time, delivering measurable uptime improvements and better resource utilization for data centers and enterprise IT rooms.
Product Information
Extended Description
7979335 Rittal: DK PDU international, switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1095x70 mm, IEC 60 320: 18x C13 + 3x C19
Article number
DK 7979.335
Product description
High-end power distribution in a compact design for IT network and server racks. With switching function and power measurement at the infeed or per phase.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,095 mm
No. of sockets and type
18 x C13 / 3 x C19
Sockets
18 x C 13 | 3 x C 19
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
4.5 kg
Customs tariff number
85366990
EAN
4028177947979
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU international, switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1095x70 mm, IEC 60 320: 18x C13 + 3x C19
Feature per-phase energy measurement and individually switchable outputs provides granular power control and precise energy data, enabling chargeback and reduced waste. Business Impact improved energy management and faster fault isolation, applied directly to IT rack deployments and data centers. Application IT infrastructure with servers and storage benefits from per-phase insights and configurable slots that adapt to changing workloads. Feature fully redundant Ethernet interface with 10/100/1000 Mbit/s and PoE-enabled management delivers reliable remote monitoring and automation, reducing on-site visits. Business Impact increased operational reliability and faster response times in facility management. Application suitable for VX IT enclosure integrations, with zero-U mounting in the rack frame and 18x C13 plus 3x C19 outputs, enabling tidy, scalable rack power. Feature compact dimensions and 4.5 kg weight support straightforward installation within existing VX IT frames, minimizing retrofit costs. Business Impact smoother deployments and lower footprint in space-constrained data centers. Application ideal for high-density IT rooms that require robust compliance and monitoring. Feature compliance with EMC Directive 2014/30/EU and EN 62368-1 ensures safety and regulatory alignment, reducing audit risk. Business Impact accelerates procurement and validates IT infrastructure standards. Application suitable for enterprise IT, services, and data center operators seeking cost-effective, reliable power management.
Get a Quick Quote for a Rittal 7979335
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979335?
Enquire Now
FAQs
The PDU is designed for vertical mounting in VX IT enclosure frames, occupying zero-U space in the rack. It requires a VX IT frame width of at least 1,200 mm and 19" mounting angles of at least 1,800 mm. It ships with assembly parts and supports the 44x1095x70 mm format along with 18 C13 and 3 C19 outputs, making it straightforward to integrate into existing IT racks.
Key specs include 400 V AC rated voltage, 16 A rated current, and up to 11 kW power capacity. It provides per-phase energy measurement, 18x C13 and 3x C19 sockets, a 3 m connection cable with a CEE plug, and a fully redundant Ethernet interface (2x RJ45, 1x PoE). The display controller is rotatable by 180°, and the unit weighs 4.5 kg.
Yes. The DK 7979.335 PDU complies with the EMC Directive 2014/30/EU and EN 62368-1 safety standards, and it meets CE compliance. These certifications support safe operation in IT environments and help with regulatory audits and purchasing criteria for data centers.
The per-phase energy measurement enables accurate energy accounting and capacity planning, while individually switchable outlets provide granular control to optimize workload distribution. Remote management via the web interface reduces on-site visits, and the option for overvoltage protection and ambient monitoring enhances reliability and uptime in mission-critical IT rooms.
The product offers a rotatable, replaceable display/controller unit, making maintenance simpler. It supports optional Type 3 overvoltage protection with interchangeable arresters, residual current measurement (type B), and CAN bus ambient sensors for extended monitoring. These features help sustain compliance, reduce downtime, and enable scalable upgrades as IT environments evolve.
