Rittal DK 7979.336 PDU - Energy measurement per phase
Part Number: 7979336
Manufacturer
Rittal
Part number
7979336
Category
Alt Part Number
DK 7979.336
Quick Summary
Rittal DK 7979.336 PDU provides compact, multi‑phase power distribution for IT racks and data centers. Engineers face rising energy costs and opaque rack power usage that complicates capacity planning. It aligns with CE compliance under EMC Directive 2014/30/EU and EN 62368‑1 safety standards, supporting regulatory readiness. Coupled with per‑phase energy measurement and an integrated web server, it delivers visibility, control, and rapid remote management for IT infrastructure. Its rugged aluminum enclosure and zero‑U mounting options enable tool‑free installation in VX IT frames. For IT teams pursuing green IT and uptime, the PDU provides measurable efficiency gains and a scalable path to future expansion.
Product Information
Extended Description

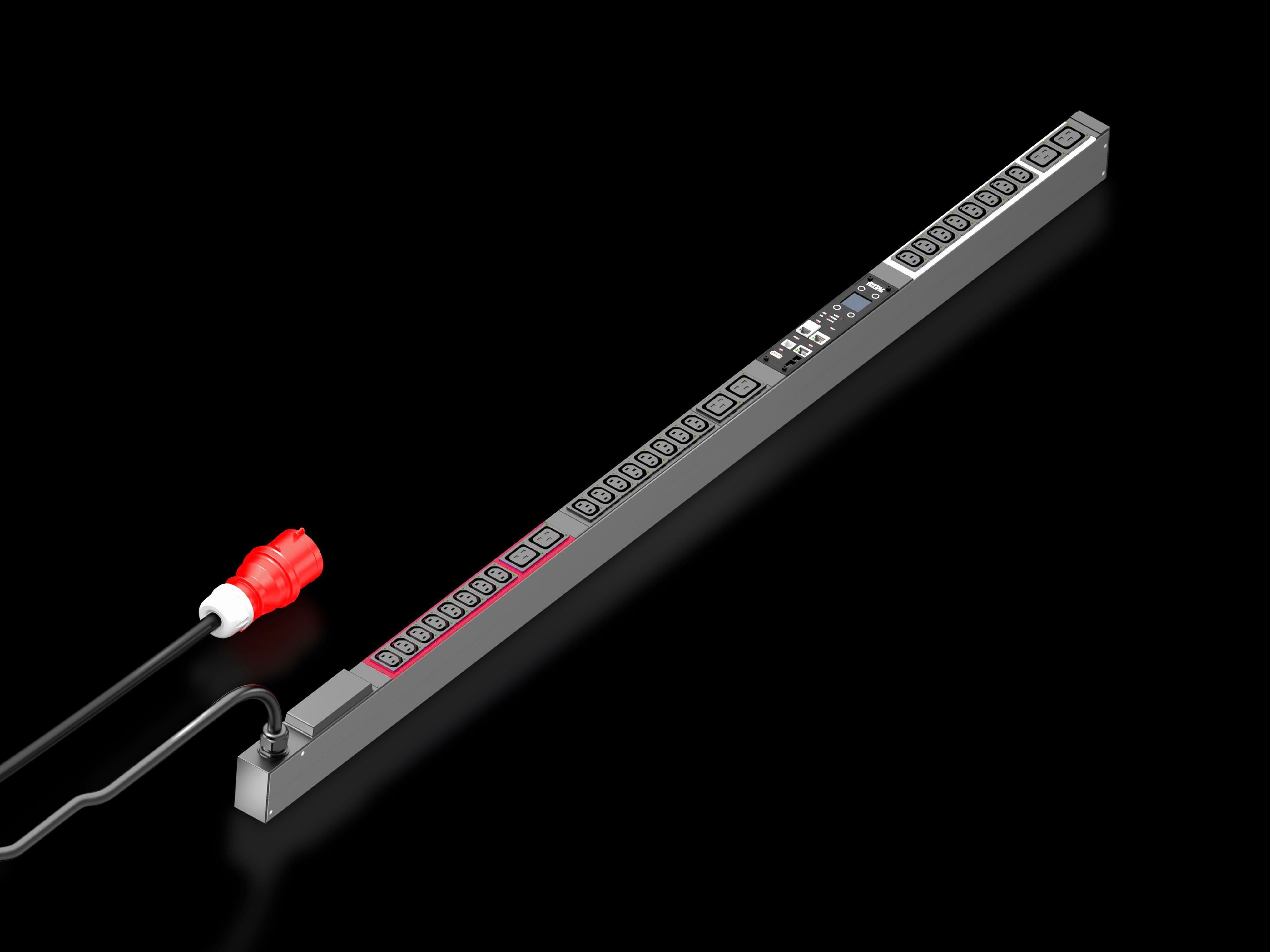

7979336 Rittal: DK PDU international, switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1495x70 mm, IEC 60 320: 24x C13 + 6x C19
Article number
DK 7979.336
Product description
High-end power distribution in a compact design for IT network and server racks. With switching function and power measurement at the infeed or per phase.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,495 mm
No. of sockets and type
24 x C13 / 6 x C19
Sockets
24 x C 13 | 6 x C 19
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
4.2 kg
Customs tariff number
85366990
EAN
4028177947986
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU international, switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1495x70 mm, IEC 60 320: 24x C13 + 6x C19
Per‑phase energy measurement with individually switchable output slots provides cost visibility and granular control. The business impact is reduced energy waste and targeted power-down during maintenance, minimizing downtime in critical IT racks for data centers and server rooms. The PDU's per‑phase monitoring supports accurate load balancing and capacity planning, while enabling chargeback for IT services. The rotatable display and replaceable control unit simplify field servicing, reducing mean time to repair and lowering maintenance costs during firmware updates or configuration changes. A fully redundant Ethernet interface with 10/100/1000 Mbit/s and PoE enables high‑availability remote management and seamless integration into existing monitoring ecosystems, improving operator confidence and uptime. Optional Type 3 overvoltage protection with arresters and residual current monitoring per infeed/phase/fuse address risk management and regulatory compliance for mission‑critical loads. Virginia IT teams often value the compact form, 24x C13 and 6x C19 outlets, and 400 V/16 A capabilities for scalable rack power.
Get a Quick Quote for a Rittal 7979336
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979336?
Enquire Now
FAQs
The DK 7979.336 PDU is designed for vertical mounting in VX IT enclosures and can be installed in zero‑U space without tools. It uses a 3‑phase 400 V input with a 3 m connection cable and CEE electrical connection, making it well suited for compact IT rack environments where space and uptime are critical.
It provides energy measurement per phase, enabling precise load reporting and chargeback if needed. This visibility supports capacity planning, energy efficiency initiatives, and targeted power management across IT racks, reducing waste and optimizing cooling and power infrastructure.
Yes. It features a fully redundant Ethernet interface (10/100/1000 Mbps) with PoE and a web server protocol stack (HTTP/HTTPS/SSL, SSH, Telnet, NTP). This enables reliable remote access, monitoring, and integration with standard data center management platforms without additional hardware.
The PDU supports CE compliance under EMC Directive 2014/30/EU and EN 62368‑1 safety standards. Optional Type 3 overvoltage protection with arresters and residual current monitoring per infeed/phase/fuse address fault tolerance and regulatory requirements for critical IT loads.
It delivers 24 x C13 and 6 x C19 sockets powered from a 400 V AC, 16 A max supply. The unit uses a 3‑phase infeed, a 3 m power cable, and a CEE connector, enabling robust load distribution for enterprise IT racks and scalable expansion in data centers.
