Rittal DK 7979.342 PDU switched - EN 62368-1
Part Number: 7979342
Manufacturer
Rittal
Part number
7979342
Category
Alt Part Number
DK 7979.342
Quick Summary
PDU switched by Rittal provides per-phase energy measurement for IT racks, enabling precise power control in data centers. Many operators struggle with invisible energy use and the risk of overload in high-density server environments, which can trigger outages and drive costs higher. This solution is CE marked, complies with the EMC Directive 2014/30/EU, and follows EN 62368-1 safety standards to ensure reliable operation and safer integration. By combining energy analytics, remote monitoring, and a robust network interface, it delivers measurable business value. The design supports scalable rack power distribution with web-based management, improving uptime, energy efficiency, and procurement flexibility for IT teams and system integrators.
Product Information
Extended Description

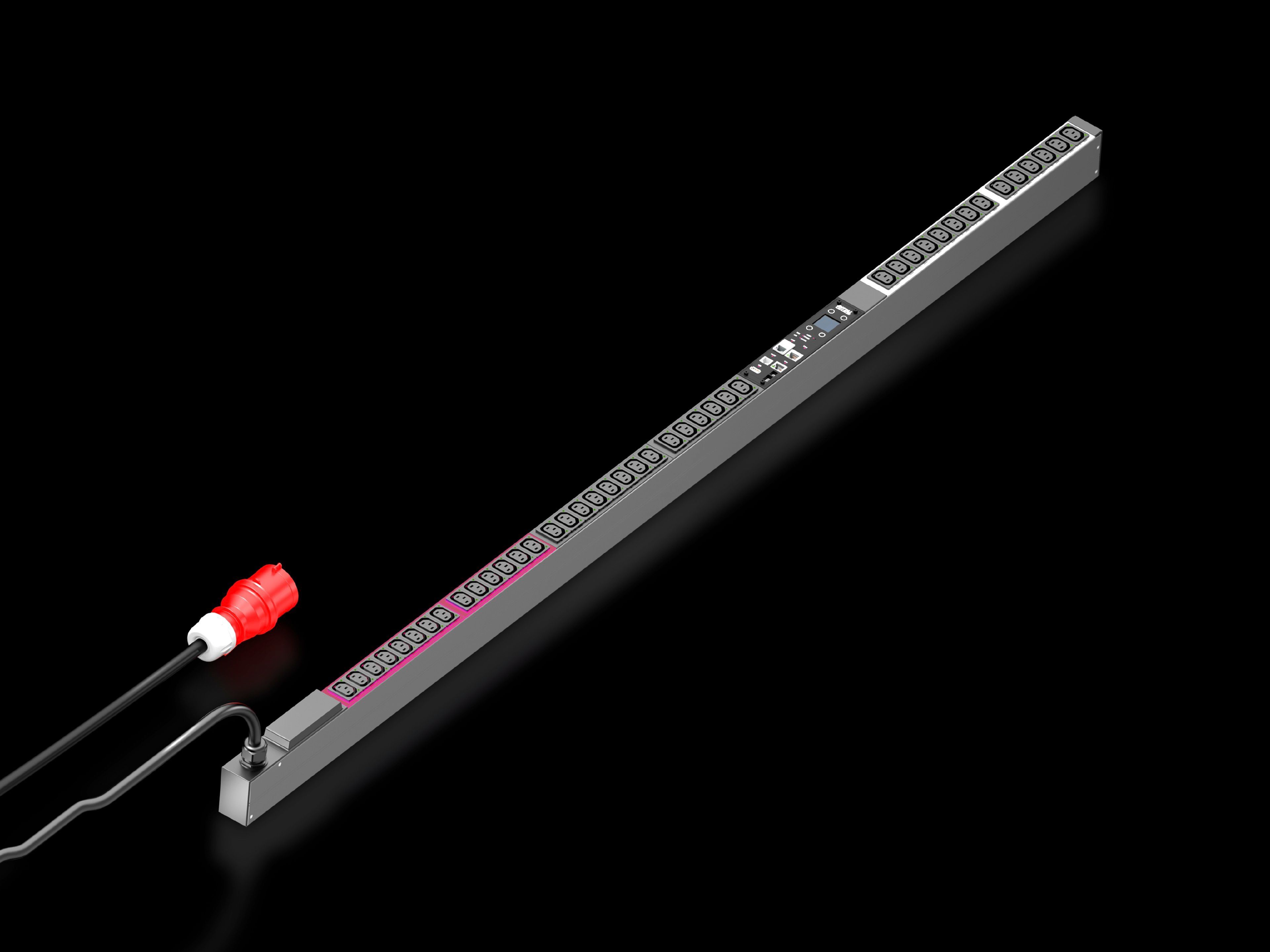

7979342 Rittal: DK PDU switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1695x70 mm, IEC 60 320: 42x C13
Article number
DK 7979.342
Product description
High-end power distribution in a compact design for IT network and server racks. With switching function and power measurement at the infeed or per phase.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,695 mm
No. of sockets and type
42 x C13
Sockets
42 x C 13
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 2,000 mm
Packs of
1 pc(s).
Weight/pack
6.3 kg
Customs tariff number
85366990
EAN
4028177948037
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1695x70 mm, IEC 60 320: 42x C13
Energy measurement per phase with a rotatable display provides immediate visibility into power usage, enabling accurate accounting, chargeback capability, and load balancing in dense IT deployments. Business impact: reduced energy waste and improved capacity planning; Application: IT racks in data centers needing per-phase insight. 42 x C13 sockets deliver high-density power distribution within a compact footprint, simplifying cabling and reducing the number of PDUs required on large racks. Business impact: lower CAPEX per rack and cleaner installations; Application: server and storage cabinets. Fully redundant Ethernet interface with 10/100/1000 Mbps (2x RJ45, one with PoE) enables secure remote monitoring and web-based management, improving uptime and operator control. Business impact: faster fault detection and reduced on-site visits; Application: data centers and edge deployments. Zero-U mounting compatibility with VX IT frames and a rotatable, replaceable control unit streamline installation and maintenance, saving time during rack-outages and upgrades. Business impact: easier scale-out and lower maintenance windows; Application: IT room upgrades and modular architectures. Overvoltage protection options, residual current measurement (type B) per infeed/phase, and CAN bus sensor connectivity provide enhanced safety and environmental monitoring. Business impact: safer operation, regulatory compliance, and proactive risk management; Application: mission-critical IT environments. Emergency power sequencing and PoE-powered PDU web server support simplify power-down procedures and ensure continuous monitoring, reducing the risk of unexpected outages. Business impact: improved reliability, lower maintenance overhead, and better IT service continuity; Application: resilient data-center operations.
Get a Quick Quote for a Rittal 7979342
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979342?
Enquire Now
FAQs
Install the DK 7979.342 PDU switched by mounting it in the VX IT rack's zero-U space, connect the 3 m CEE feed, and route the 42 C13 outputs to devices. The rotatable display simplifies alignment during setup, and the controller is replaceable to minimize downtime during service. Appropriate cable management and labeling are recommended for scalable deployments.
Key specs include a 400 V AC rated voltage, a maximum 16 A current, and an overall power capacity of 11 kW. It provides 42 sockets of type C13, uses a 3 m connection cable, and supports three-phase infeeds. The enclosure connects via a CEE input and offers an Ethernet interface for management, with EMC and safety compliance.
Yes. The DK 7979.342 PDU switched is designed for vertical mounting in VX IT enclosures, occupying zero-U space and enabling tool-free placement. This compatibility simplifies installation in existing VX IT frames and reduces rack footprint, making it ideal for dense data-center environments where space is at a premium.
The unit provides a fully redundant Ethernet interface with 10/100/1000 Mbps (two RJ45 ports, one with PoE) and supports standard web protocols including HTTP, HTTPS, SSL, SSH, Telnet, and NTP. These features enable secure remote monitoring, controlled access, and reliable time synchronization for compliant IT operations.
Per-phase energy measurement enables precise usage analytics and chargeback, while remote monitoring reduces on-site visits and unplanned outages. The rotatable display and replaceable controller lower maintenance costs, and the high-density 42 x C13 output count lowers CAPEX per rack. Together, these capabilities support energy efficiency programs and faster fault resolution in mission-critical IT spaces.
