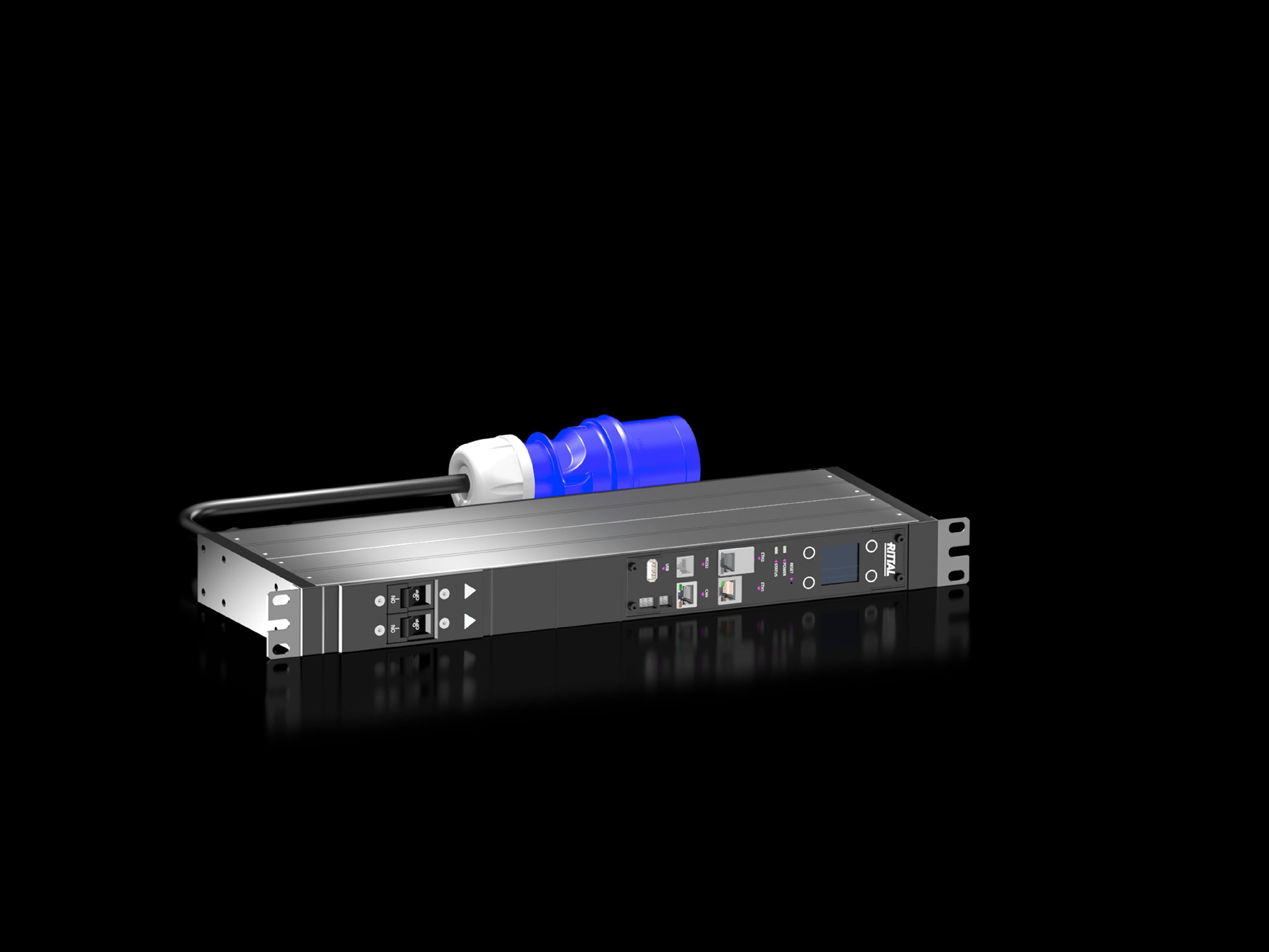

Rittal DK 7979.404 PDU - EMC Directive 2014/30/EU
Part Number: 7979404
Manufacturer
Rittal
Part number
7979404
Category
Alt Part Number
DK 7979.404
Quick Summary
Rittal DK 7979.404 PDU is a managed power distribution unit for IT racks. It consolidates energy measurement and monitoring across outputs to simplify compliance and capacity planning. Certified for EMC Directive 2014/30/EU and EN 62368-1, it supports networked management and secure access. With scalable VX IT compatibility and Ethernet connectivity, it delivers operational visibility, efficiency gains, and safer, standards-compliant rack power. Its 3 m input cable and 4x C13/2x C19 outlets support flexible IT deployments, while the rotatable display and web interface streamline ongoing management. Designed for harsh IT environments, it withstands broad operating conditions, enabling reliable performance in data centers, telecom rooms, and lab racks.
Product Information
Extended Description
7979404 Rittal: DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions for each output slot, with network interface and display, WHD: 450x440x144 mm, IEC 60 320: 4x C13 + 2x C19
Article number
DK 7979.404
Design
482.6 mm (19") version
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Height: 44 mm | Depth: 144 mm | Length: 450 mm
No. of sockets and type
4 x C13 / 2 x C19
Sockets
4 x C 13 | 2 x C 19
Rated operating voltage
230 V (AC)
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Number RJ45 ports for sensor units max
2
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 800 mm
Packs of
1 pc(s).
Customs tariff number
85369095
EAN
4028177948068
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions for each output slot, with network interface and display, WHD: 450x440x144 mm, IEC 60 320: 4x C13 + 2x C19
Feature: Per-output energy measurement and monitoring with a web server. Business Impact: Delivers granular load visibility and data-driven capacity planning, reducing overprovisioning and energy waste. Application: Data centers and server rooms needing precise power accounting. Feature: Fully redundant Ethernet interface with 10/100/1000 Mbit/s and PoE-capable port. Business Impact: Ensures reliable remote management, quick fault isolation, and secure access for DCIM integrations. Application: Enterprise IT networks requiring robust device connectivity. Feature: Replaceable, rotatable controller unit. Business Impact: Simplifies on-site configuration and maintenance, lowering downtime and service costs. Application: Routine IT rack upkeep and zero-U VX IT mounting scenarios. Feature: 3 m CEE input cord, 230 V, 32 A, 7.4 kW capacity. Business Impact: Matches common data-center feeds and enables safe, scalable power distribution upgrades. Application: New rack installations and retrofits with standard CEE power sources. Feature: Ambient monitoring option via CMC III sensors (max 16). Business Impact: Improves predictive thermal management and environmental compliance. Application: Server rooms needing proactive climate control. Feature: Energy management with output-level control, including sequential disconnection of outputs. Business Impact: Helps enforce power sequencing and uptime strategies, reducing risk during maintenance. Application: High-availability IT deployments and automated shutdown planning. Feature: Network-based management via HTTP/HTTPS/SSH/Telnet/NTP. Business Impact: Facilitates remote diagnostics, audit trails, and synchronized timekeeping for compliance. Application: IT infrastructure requiring centralized PDU governance.
Get a Quick Quote for a Rittal 7979404
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979404?
Enquire Now
FAQs
Mounting requires the VX IT enclosure frame or mounting angles of at least 800 mm. The PDU supports vertical zero-U installation in compatible VX IT frames, enabling tool-free integration and space optimization. Ensure the zero-U space is available within the IT rack and that the enclosure provides adequate airflow for the 7.4 kW load. Connection is via standard CEE input with a 3 m cord for flexible routing.
Each output slot includes energy measurement and monitoring capability, enabling per-socket data collection. The PDU aggregates power usage at the 4x C13 and 2x C19 outlets, aiding load balancing and capacity planning. Data is accessible through the web interface and network protocol stack (HTTP, HTTPS, SSH, Telnet, NTP) for integration with DCIM and asset management systems.
Yes. The PDU operates at 230 V AC with a rated current of up to 32 A and a total power capacity of 7.4 kW. It provides 4x C13 and 2x C19 output sockets, fed by a CEE input. The 3 m connection cable supports flexible routing in dense data center racks and telecom rooms, ensuring compatibility with standard IT equipment and power distribution schemes.
The PDU meets EMC Directive 2014/30/EU and EN 62368-1 standards, indicating compliance with electromagnetic compatibility and modern safety requirements for information technology equipment. These certifications support safer deployments in regulated environments, help minimize risk during audits, and facilitate integration with enterprise IT infrastructure while ensuring predictable performance under typical operating conditions.
Expected ROI comes from reduced energy waste through per-output monitoring, improved uptime via reliable remote management, and streamlined maintenance thanks to a rotatable, replaceable controller. The PDU’s compatibility with VX IT frames and ambient sensor options supports proactive cooling and capacity planning, lowering operational costs and extending asset life in data centers and IT rooms.
