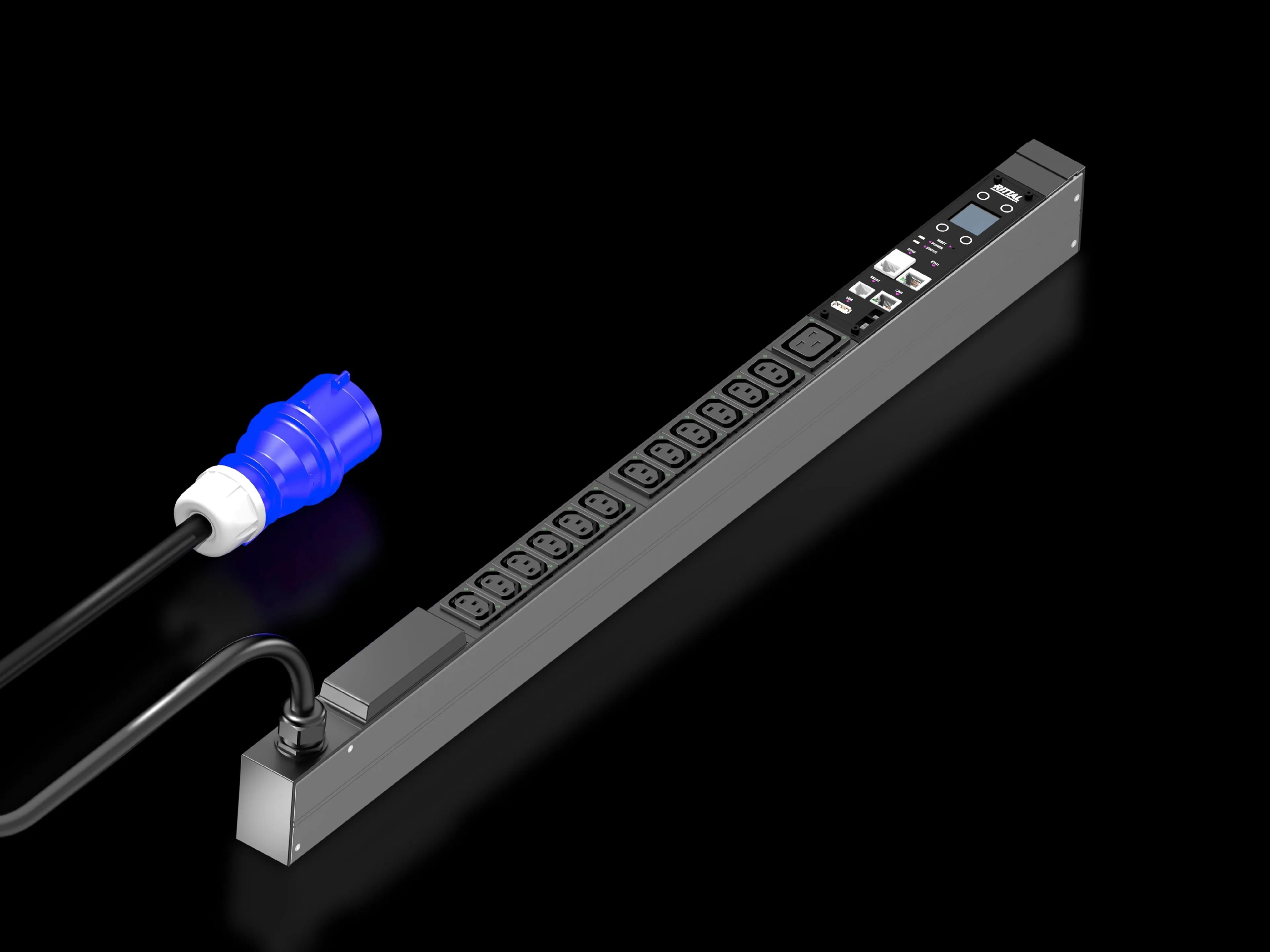

Rittal DK 7979.410 PDU - EN 62368-1 compliant
Part Number: 7979410
Manufacturer
Rittal
Part number
7979410
Category
Alt Part Number
DK 7979.410
Quick Summary
Rittal DK 7979.410 PDU delivers high-end power distribution with per-slot energy measurement for IT racks. Engineers struggle with visibility into individual outlets and energy costs in busy server rooms. It meets EMC Directive 2014/30/EU and EN 62368-1 safety standards, with CE labeling for global deployment. For IT infrastructure management, it enables remote monitoring and outlet-level energy analytics, with zero-U mounting compatibility for VX IT frames, delivering faster installations and measurable ROI. Its modular design supports future scalability in server rooms and edge compute deployments, while the rotatable display and secure web interface simplify daily operations.
Product Information
Extended Description
7979410 Rittal: DK PDU international, managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x845x70 mm, IEC 60 320: 12x C13 + 1x C19
Article number
DK 7979.410
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 845 mm
No. of sockets and type
12 x C13 / 1 x C19
Sockets
12 x C 13 | 1 x C 19
Rated operating voltage
230 V (AC)
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,200 mm
Packs of
1 pc(s).
Weight/pack
3.58 kg
Customs tariff number
85366990
EAN
4028177948075
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU international, managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x845x70 mm, IEC 60 320: 12x C13 + 1x C19
Per-output energy measurement and monitoring provides granular visibility into power usage by each outlet, enabling accurate cost allocation and energy governance. This capability supports chargeback models and capacity planning for dense IT racks, reducing waste and improving budgeting accuracy. Applications include data centers and enterprise server rooms seeking better energy transparency. Paragraph 2: The 12x C13 + 1x C19 outlets deliver 230 V, 16 A and 3.7 kW of power, with a compact footprint that fits VX IT frames, enabling efficient rack integration and streamlined installations. Paragraph 3: Fully redundant Ethernet interface with 2x RJ45 and a PoE-enabled port supports robust remote management and secure access via HTTP(S), SSH, Telnet, and NTP. The PoE-assisted operation helps maintain a reachable web interface during power fluctuations. Paragraph 4: Safety and compliance are reinforced by EMC Directive 2014/30/EU and EN 62368-1 standards, with CE labeling for global deployment. Optional Type 3 overvoltage protection, residual current measurement (type B), and CAN bus ambient sensors expand protective coverage. Paragraph 5: Zero-U mounting compatibility with VX IT and TS IT enclosures simplifies deployment, reduces install time and inventory costs. The rotatable display and replaceable controller support easy servicing, while the modular design accommodates future sensor-based monitoring.
Get a Quick Quote for a Rittal 7979410
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979410?
Enquire Now
FAQs
The PDU supports zero-U mounting in Rittal VX IT frames, enabling tool-free or minimal-tool installation. Align the enclosure rails, slide the unit into position, and secure with the provided mounting hardware. This setup reduces installation time and inventory complexity while preserving server rack clearance and airflow.
Each output slot provides dedicated energy measurement and monitoring data, enabling precise energy accounting and load balancing. This per-outlet visibility supports chargeback accuracy, capacity planning, and proactive maintenance by highlighting outliers or trending inefficiencies in real-time.
Yes. The PDU features a fully redundant Ethernet interface (2x RJ45, 1x with PoE) and a web server accessible via HTTP(S), SSH, and Telnet, with NTP for time synchronization. This enables secure, remote monitoring, configuration, and event logging from centralized management systems.
The DK 7979.410 complies with EMC Directive 2014/30/EU and EN 62368-1 safety standards, and carries CE marking. These certifications support global deployment in IT facilities and ensure regulatory alignment for robust electrical and data integrity.
By delivering outlet-level energy data and remote management, the PDU enables accurate energy accounting, reduced downtime through proactive monitoring, and optimized power provisioning. The combination of scalable monitoring features and installation efficiency translates into lower operating costs and faster ROI in data centers and enterprise IT environments.
