Rittal DK 7979.411 PDU - EN 62368-1, EMC, IT rack
Part Number: 7979411
Manufacturer
Rittal
Part number
7979411
Category
Alt Part Number
DK 7979.411
Quick Summary

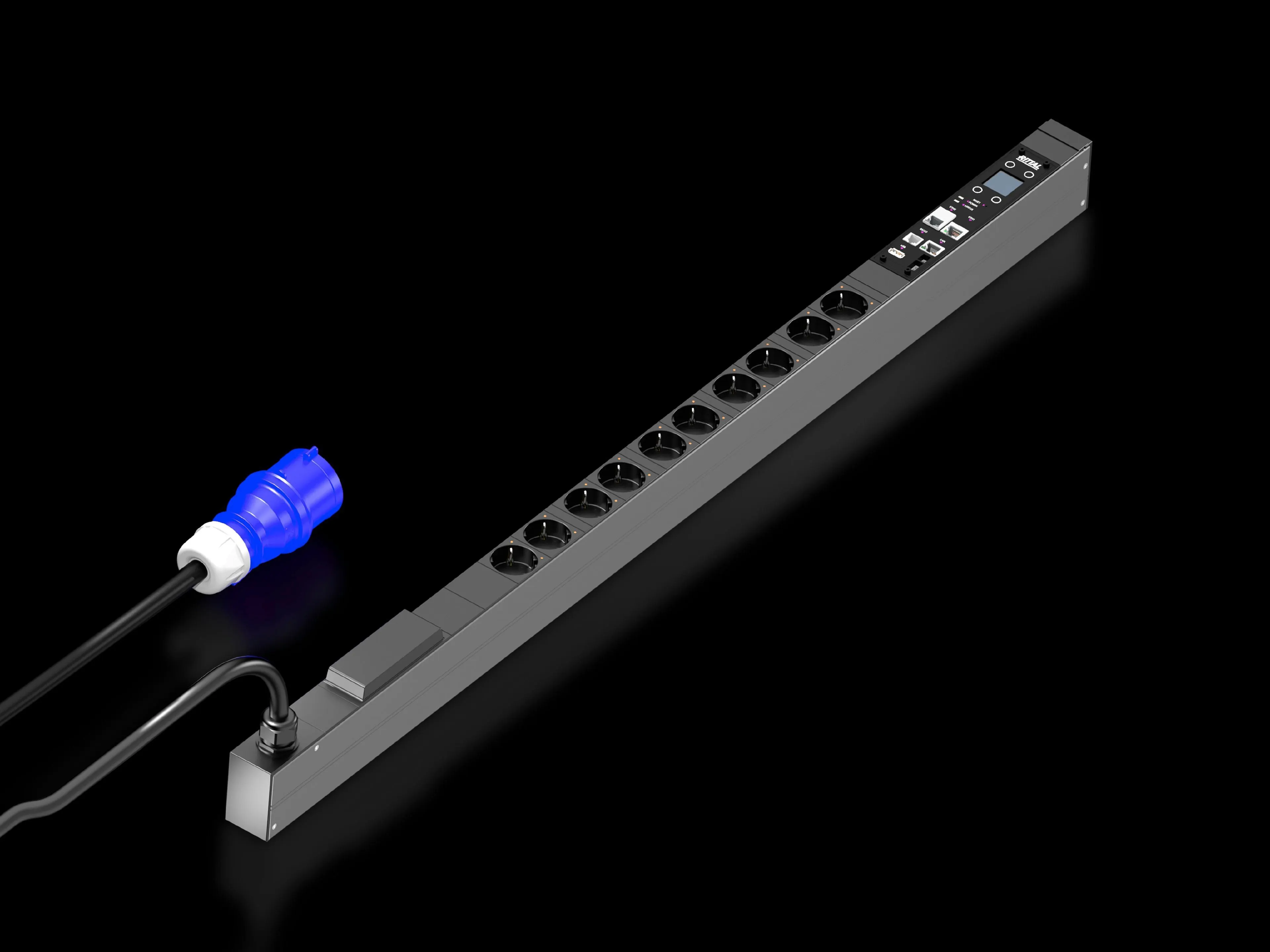

Rittal DK 7979.411 PDU is a high-end power distribution unit for IT racks delivering energy measurement per outlet. Engineers often struggle to gain real-time visibility into load distribution and to perform safe, rapid shutdowns during maintenance. This unit complies with CE marking and EN 62368-1 safety standards, and aligns with EMC Directive 2014/30/EU, ensuring regulatory confidence in data centers and industrial facilities. By integrating a network interface and a rotatable display, it supports remote monitoring, alerting, and quick fault isolation. The DK PDU is designed for VX IT and 19" frames, enabling scalable, zero-U mounting. In addition to primary energy management, it supports advanced features and optional sensors, helping IT managers reduce energy waste and improve service availability.
Product Information
Extended Description
7979411 Rittal: DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1095x70 mm, CEE 7/3: 10x earthing pin
Article number
DK 7979.411
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,095 mm
No. of sockets and type
10 x earthing-pin (type F, CEE 7/3)
Sockets
10 x earthing-pin
Rated operating voltage
230 V (AC)
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Customs tariff number
85366990
EAN
4028177948082
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1095x70 mm, CEE 7/3: 10x earthing pin
Feature: Per-output energy measurement and monitoring → Business Impact: Transparent load distribution and proactive fault detection reduce risk and downtime; Application: IT rack deployments needing granular visibility. Feature: Rotatable, replaceable display/controller unit → Business Impact: Lower maintenance cost and faster field service; Application: Data centers with tight upgrade cycles. Feature: Fully redundant Ethernet interface with PoE support → Business Impact: Reliable remote management and continuous web server uptime; Application: Remote IT infrastructure monitoring. Feature: Zero-U mounting compatibility with VX IT frames → Business Impact: Space-saving installation and quicker rack integration; Application: Dense data-center racks. Feature: Robust aluminium housing with plastic slots → Business Impact: Enhanced durability in harsh environments and longer service life; Application: Industrial IT environments. Feature: Comprehensive standards compliance (CE, EN 62368-1, EMC) → Business Impact: Simplified audit trails and regulatory peace of mind; Application: Enterprise and regulated sectors. These capabilities, combined with a 3 m input cable and 10 CEE/7/3 sockets, support scalable, compliant energy management across mixed IT and industrial cabinet ecosystems.
Get a Quick Quote for a Rittal 7979411
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979411?
Enquire Now
FAQs
The DK 7979.411 PDU is designed for VX IT enclosure frames of at least 1,200 mm and 19" mounting angles of at least 1,800 mm. It supports zero-U mounting for space efficiency and includes a 3 m input cable with a CEE connection. The unit provides 10 outlets (CEE 7/3) and a rotatable display for easy service access.
Each outlet includes energy measurement and monitoring, enabling visibility into per-slot loads. The device supports a PoE-powered web server for remote access, sequential disconnection of outputs for safe shutdowns, and an Ethernet interface with redundant 10/100/1000 Mbit/s connections for reliable monitoring and alerting.
Yes. The system complies with CE marking and conforms to EN 62368-1 safety standards, along with EMC Directive 2014/30/EU requirements. These certifications support regulatory compliance in data centers and industrial environments, reducing audit complexity and accelerating deployments.
Input is via a 3 m CEE power cable, and the PDU provides 10 x earthing-pin sockets (type F, CEE 7/3). The unit operates at 230 V AC with a maximum rated current of 16 A and a total power capacity of up to 3.7 kW, suitable for IT and rack-mounted equipment.
Key deployment advantages include zero-U mounting in VX IT frames, a rotatable and replaceable display/controller, and a networked management interface (PoE-ready). Compatibility with optional overvoltage protection, ambient sensors via CAN bus, and modular enclosure fitments streamline installation, testing, and future upgrades while maintaining regulatory compliance.
