Rittal DK 7979.413 PDU - Energy Monitoring & Management
Part Number: 7979413
Manufacturer
Rittal
Part number
7979413
Category
Alt Part Number
DK 7979.413
Quick Summary
Rittal DK 7979.413 PDU is a high-end power distribution unit delivering per-output energy measurement for IT server racks, with integrated network access for monitoring. Many operators struggle with untracked energy costs and outages in dense rack installations, making capacity planning and proactive maintenance difficult. It complies with EMC Directive 2014/30/EU and EN 62368-1, and offers robust protection features including residual current monitoring (type B) per infeed and optional overvoltage protection to meet industrial safety expectations. Designed for VX IT racks and modular data-center deployments, it enables proactive energy management, reducing operating costs, improving uptime, and supporting centralized dashboards via PoE-enabled web access. The result is verifiable efficiency gains and simpler compliance reporting for IT operations and maintenance teams.
Product Information
Extended Description

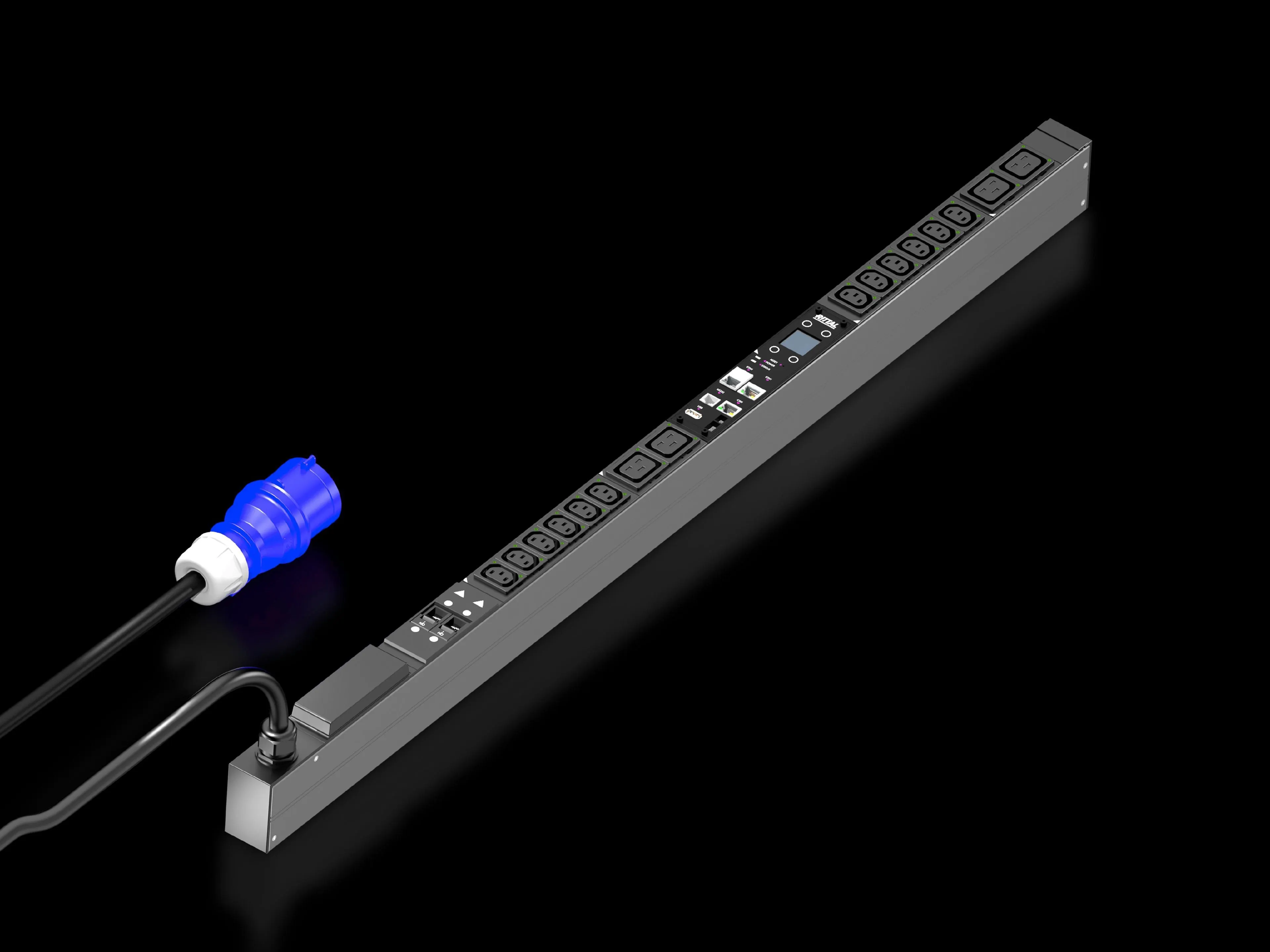

7979413 Rittal: DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1095x70 mm, IEC 60 320: 12x C13 + 4x C19
Article number
DK 7979.413
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,095 mm
No. of sockets and type
12 x C13 / 4 x C19
Sockets
12 x C 13 | 4 x C 19
Rated operating voltage
230 V (AC)
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Number RJ45 ports for sensor units max
2
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
4.5 kg
Customs tariff number
85369095
EAN
4028177948105
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1095x70 mm, IEC 60 320: 12x C13 + 4x C19
Per-output energy measurement and monitoring deliver precise visibility into energy use for each outlet, enabling targeted load balancing and waste reduction. This translates to measurable savings on monthly electricity bills and more predictable rack performance in dense deployments. Network interface with a PoE-enabled web server and rotatable display enables remote monitoring without on-site visits, reducing management overhead and accelerating incident response. High-density outlets—12 x C13 and 4 x C19 on a compact 44x1095x70 mm enclosure, 230 V and 32 A rating—support scalable IT power distribution while maintaining cable hygiene and serviceability. Redundancy and sensor integration provide a fully redundant Ethernet interface plus CAN bus ambient sensors, improving reliability and environmental awareness across data centers. Optional protections and compliance features, including Type 3 overvoltage protection with interchangeable arresters and residual current measurement, help meet regulatory requirements and reduce risk. Installation advantages include zero-U mounting compatibility with VX IT frames and configurable mounting options for 19" racks, enabling fast deployment with minimal tools.
Get a Quick Quote for a Rittal 7979413
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979413?
Enquire Now
FAQs
The DK 7979.413 PDU is designed for VX IT racks and related VX IT enclosure frames. It supports zero-U vertical mounting and fits VX IT frame widths and mounting rails specified by Rittal, ensuring a clean integration with minimal tools. The 44 mm width and 1,095 mm length are tailored for high-density IT enclosure deployments.
It offers per-output energy measurement and monitoring for 12 C13 and 4 C19 outlets, plus an integrated network interface and PoE-enabled web server for remote access. This enables real-time power visibility, outlet-level fault detection, and centralized dashboards, which translate to targeted energy savings and improved uptime management.
The unit complies with EMC Directive 2014/30/EU and EN 62368-1, aligning with essential electrical safety and electromagnetic compatibility requirements for IT infrastructure. Optional protections and environmental monitoring features further support regulatory compliance and safer operation in enterprise data centers.
Yes. The PDU supports optional monitoring through CMC III CAN bus sensors for ambient conditions and can connect multiple sensor units (up to two RJ45 sensor ports). This enables environmental awareness, early fault detection, and improved preventive maintenance in data centers.
Plan for a VX IT deployment with zero-U mounting where possible to save rack space and simplify installation. Leverage the rotatable display for ease of service access, the 3 m CEE supply cable for flexible placement, and the 12x C13 / 4x C19 outlets to consolidate power distribution, reducing wiring complexity and improving mean time to repair (MTTR).
