Rittal DK 7979.415 PDU - Energy measurement EN 62368-1
Part Number: 7979415
Manufacturer
Rittal
Part number
7979415
Category
Alt Part Number
DK 7979.415
Quick Summary

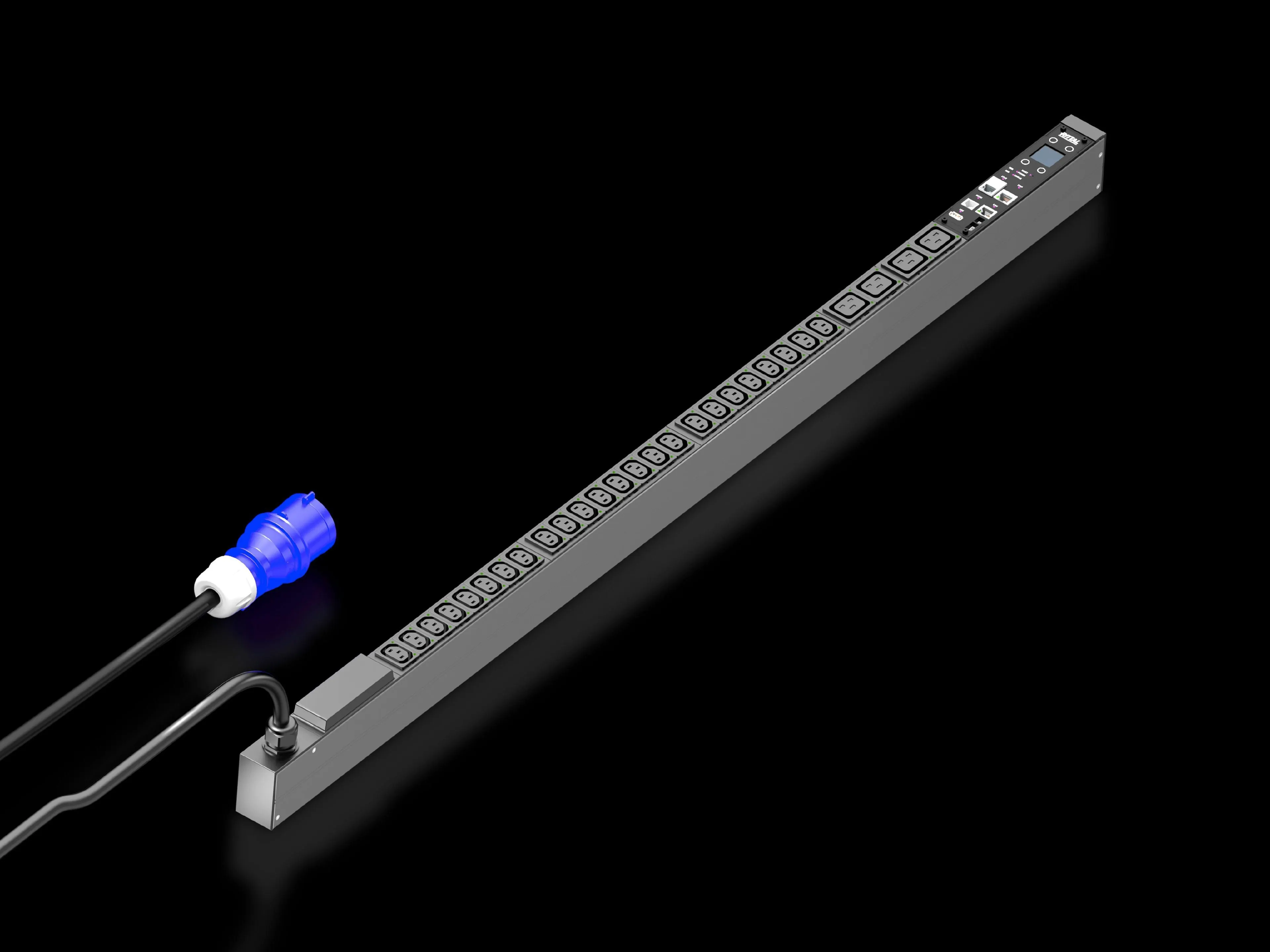

Rittal DK 7979.415 PDU is a high-end IT rack power distribution unit with energy measurement per output slot. In dense data center racks, operators need precise load visibility and fast control to prevent outages and optimize cooling. This solution aligns with key certifications such as EMC Directive 2014/30/EU and EN 62368-1, with CE-marking for European compliance, and offers optional overvoltage protection plus ambient CAN bus sensors for environment monitoring. By combining per-output metering, a rotatable display, and a resilient network interface, it enables proactive energy management, automated sequencing, and remote administration—driving efficiency, reducing risk, and lowering total cost of ownership. Secondary benefits include IT rack compatibility, scalable monitoring, and streamlined maintenance workflows.
Product Information
Extended Description
7979415 Rittal: DK PDU international, managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1260x70 mm, IEC 60 320: 24x C13 + 4x C19
Article number
DK 7979.415
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,295 mm
No. of sockets and type
24 x C13 / 4 x C19
Sockets
24 x C 13 | 4 x C 19
Rated operating voltage
230 V (AC)
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: 482.6 mm (19") mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
5.04 kg
Customs tariff number
85366990
EAN
4028177948129
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU international, managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1260x70 mm, IEC 60 320: 24x C13 + 4x C19
Feature: Energy measurement and per-output monitoring provides precise power usage data for every socket. Business impact: improves energy transparency, supports chargeback models, and reduces wasted consumption. Application: IT racks and modular server deployments where per-tenant or per-server energy visibility is required. Feature: 24x C13 / 4x C19 outlets with a 230 V, 16 A rating and a 3 m CEE input. Business impact: enables high-density rack provisioning with flexible front-end feeding and simplifies installation in VX IT and TS IT frames. Application: data centers and edge compute installations needing reliable power distribution. Feature: Fully redundant Ethernet interface with PoE-capable port and accessible web server protocols (HTTP(S), SSH, Telnet, NTP). Business impact: supports remote management, reduces on-site visits, and enables centralized policy enforcement. Application: IT operations centers and national/international data centers. Feature: Optional Type 3 overvoltage protection with interchangeable arresters and residual current monitoring (type B). Business impact: enhances safety, reduces risk of equipment damage, and supports compliance reporting. Application: critical IT environments with strict electrical protections. Feature: Ambient monitoring via CAN bus sensors (up to 16) and rotatable 180° display/controller (replaceable). Business impact: enables proactive environment control and easy maintenance access. Application: rack rooms with limited clearance or elevated ambient risk. Feature: Compact enclosure integration with WLD 44x1260x70 mm and zero-U mounting compatibility for VX IT enclosures. Business impact: optimizes rack real estate and simplifies installation. Application: data center and network room deployments where space is at a premium.
Get a Quick Quote for a Rittal 7979415
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979415?
Enquire Now
FAQs
The DK 7979.415 PDU supports vertical mounting in VX IT frames and can be positioned in the zero-U space with compatible mounting angles. Ensure the 3 m CEE input cable reaches the enclosure feed and that the 24 C13 / 4 C19 outlets align with front-access power needs. Verify clearance for the rotatable display and network interface to maintain serviceability.
Per-output energy measurement provides visibility down to individual sockets, enabling precise chargeback, capacity planning, and anomaly detection. In practice, you can identify undersized servers or rogue workloads, optimize workload placement, and demonstrate energy compliance to stakeholders, all while supporting proactive maintenance and reduced data center cooling costs.
Yes. The DK 7979.415 PDU aligns with EMC Directive 2014/30/EU and EN 62368-1, with CE-marking for EU compliance. Optional protection features and monitoring interfaces further support regulatory requirements in data centers, while the robust enclosure and fault-tolerant Ethernet interfaces contribute to operational safety and reliability.
Input uses a 3 m CEE cable fed by a 230 V supply with a 16 A rating, supporting 1 infeed. The outputs are 24x C13 and 4x C19, providing flexible power distribution for mixed IT equipment. The device also offers fully redundant Ethernet (2x RJ45) and one PoE-capable port for network power and web server operations.
ROI stems from reduced energy waste, improved uptime, and streamlined remote management. Per-output metering enables accurate chargeback and capacity planning, while environment monitoring and optional overvoltage protection minimize unplanned outages. The rotatable display and replaceable controller lower maintenance time, and the CAN-bus sensor option supports predictive maintenance strategies.
