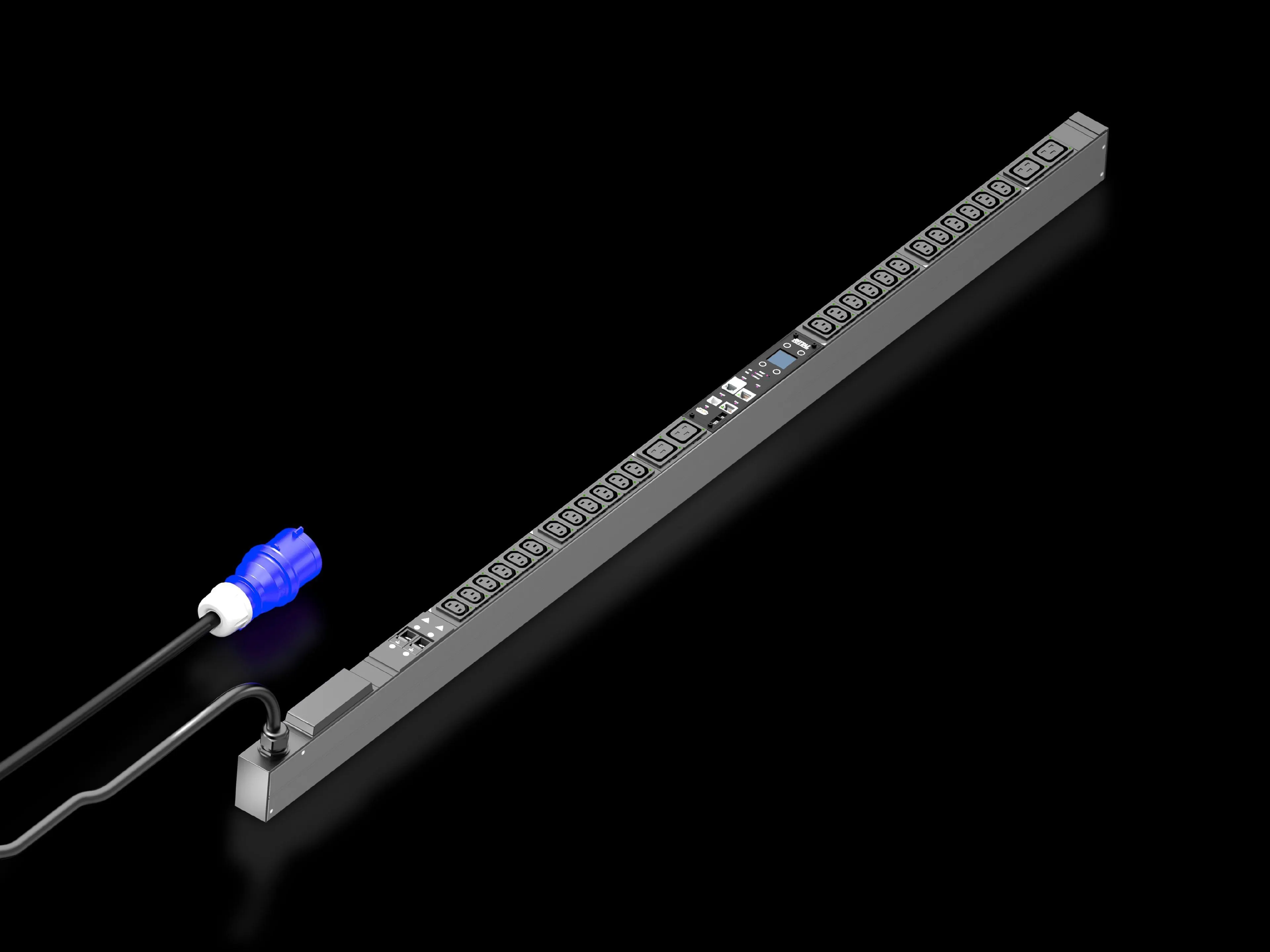

Rittal DK 7979.416 PDU – EN 62368-1 Certified
Part Number: 7979416
Manufacturer
Rittal
Part number
7979416
Category
Alt Part Number
DK 7979.416
Quick Summary
Rittal DK 7979.416 PDU distributes power with energy measurement for IT racks. Engineers face blind spots in per-outlet power usage and monitoring, which slow fault detection and increase downtime. This unit complies with EMC Directive 2014/30/EU and EN 62368-1 safety standards, earning CE marking and regulatory confidence for data centers. With remote management via fully redundant Ethernet and a rotatable display, it scales from small server rooms to dense racks. The PDU delivers energy transparency, per-outlet control, and robust monitoring, helping facilities reduce energy waste, simplify audits, and improve uptime. Secondary benefits include integration with VX IT frames and available options for protection and ambient sensing, boosting both reliability and operational insight.
Product Information
Extended Description
7979416 Rittal: DK PDU international, managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1495x70 mm, IEC 60 320: 24x C13 + 4x C19
Article number
DK 7979.416
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,495 mm
No. of sockets and type
24 x C13 / 4 x C19
Sockets
24 x C 13 | 4 x C 19
Rated operating voltage
230 V (AC)
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Number RJ45 ports for sensor units max
2
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
5.74 kg
Customs tariff number
85366990
EAN
4028177948136
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU international, managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1495x70 mm, IEC 60 320: 24x C13 + 4x C19
Feature: Per-output energy measurement and monitoring → Business Impact: Precise visibility of energy use per outlet enables targeted optimization and fault isolation, reducing wasted power and downtime. Application: IT racks in data centers needing per-outlet accountability and rapid diagnostics. Long-tail keyword usage: energy monitoring per outlet, per-slot measurement, data center power analytics.Feature: 24x C13 / 4x C19 outlets with 230 V, 32 A rating → Business Impact: High-density power distribution supports scalable IT workloads while maintaining safe current limits and predictable performance. Application: Server rooms and VX IT frames requiring mixed-output sockets. Long-tail keywords: IT rack power distribution, high-density PDU, 32 A PDU.Feature: 3 m CEE input with 2 RJ45 + PoE Ethernet interface → Business Impact: Simplified installation and robust remote management; PoE can power the PDU’s web interface for continuous access. Application: Remote data-center management and edge deployments. Long-tail keywords: redundant Ethernet interface, PoE-enabled PDU, remote monitoring.Feature: Rotatable 180° display and web server protocols (HTTP/S, SSH, NTP) → Business Impact: Easy local configuration and secure remote control; supports standard IT management workflows. Application: IT admins configuring racks in confined spaces and enforcing synchronized time protocols. Long-tail keywords: rotatable display PDU, secure web interface, NTP synchronization.Feature: Safety and compliance with EN 62368-1 and EMC Directive 2014/30/EU → Business Impact: Regulatory compliance reduces audit risk and accelerates procurement cycles. Application: Data centers subject to EU directives and safety standards. Long-tail keywords: EN 62368-1 compliance, EMC directive compliance, CE marking.
Get a Quick Quote for a Rittal 7979416
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979416?
Enquire Now
FAQs
The DK 7979.416 is designed for VX IT frames and 19'' mounting rails, supporting zero-U vertical mounting. It provides 24x C13 and 4x C19 outputs, a 3 m CEE input, a rotatable display, and a network interface for remote management, making it suitable for both new builds and rack upgrades.
Each outlet supports energy measurement and monitoring, enabling visibility of per-slot power usage. The PDU includes a web server with HTTP/HTTPS access and a fully redundant Ethernet interface (2x RJ45, 1x PoE) for remote management. It can power its own web interface via PoE, simplifying installation and ongoing monitoring.
Yes. The DK 7979.416 complies with EN 62368-1 safety standard and the EMC Directive 2014/30/EU, providing CE marking for regulatory compliance in European data centers and ensuring safe operation in electrical installations.
Plan for a single 32 A infeed via a CEE connector, using the included 3 m input cable. Mounting compatibility includes VX IT frames with ≥1,800 mm enclosure width, plus 24x C13 and 4x C19 sockets. Ensure ventilation and space around the enclosure to accommodate up to 7.4 kW of load.
By delivering outlet-level energy data and remote management, the PDU enables targeted energy optimization, faster fault isolation, and simplified audits. The capacity of 7.4 kW with 32 A infeed supports dense IT workloads while reducing waste, improving uptime, and lowering operating costs over time.
