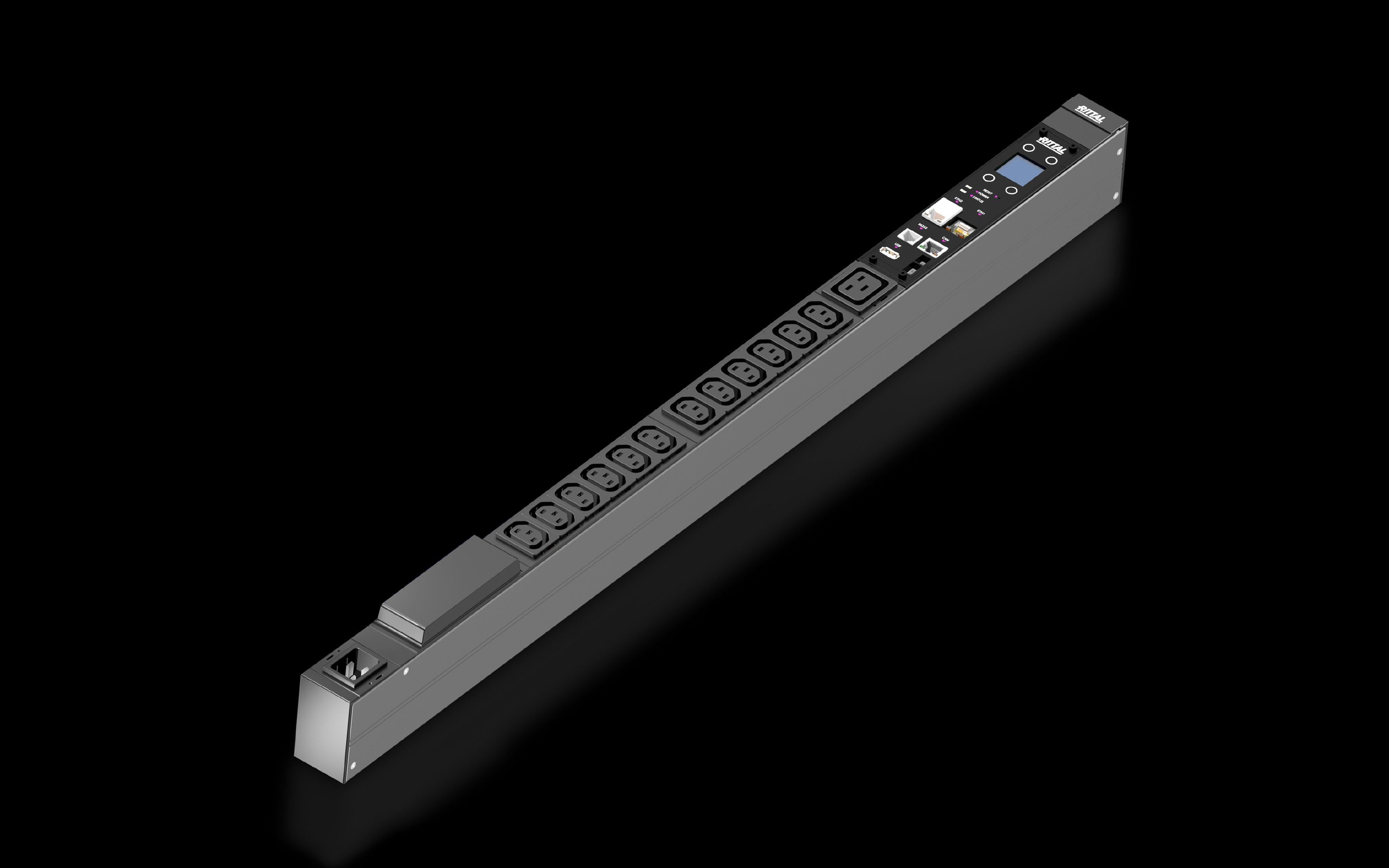

Rittal DK 7979.417 PDU - EN 62368-1 compliant
Part Number: 7979417
Manufacturer
Rittal
Part number
7979417
Category
Alt Part Number
DK 7979.417
Quick Summary
Rittal DK 7979.417 PDU delivers managed power distribution for IT racks and data centers, with per-output energy measurement and monitoring. Many operators struggle with unseen energy waste and siloed load data across dozens of outlets. This PDU provides real-time visibility, remote management, and robust CE/EMC EN 62368-1 compliance to simplify audits. The device boosts rack reliability and reduces operational cost through energy-aware decisions. With a networked display and PoE-ready management, you can scale control across your IT fleet. The device integrates energy measurement per slot, supports extensive management interfaces, and is compatible with VX IT enclosure frames for zero-U installation. In demanding data center environments, that combination delivers faster fault isolation, easier capacity planning, and measurable energy savings over device lifecycles.
Product Information
Extended Description
7979417 Rittal: DK PDU international, managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1095x70 mm, IEC 60 320: 12x C13 + 1x C19, IEC C20
Article number
DK 7979.417
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 845 mm
No. of sockets and type
12 x C13 / 1 x C19
Sockets
12 | 1
Rated operating voltage
230 V (AC)
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Type of electrical connection
IEC C20
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,200 mm
Packs of
1 pc(s).
Weight/pack
3 kg
Customs tariff number
85366990
EAN
4028177973497
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU international, managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1095x70 mm, IEC 60 320: 12x C13 + 1x C19, IEC C20
Feature → Business Impact → Application: Per-output energy measurement and monitoring delivers granular cost allocation and real-time load visibility, enabling proactive capacity planning and reduced energy waste in data centers and large IT racks. This supports informed procurement decisions and demonstrates compliance during audits. Application: IT room energy management and green data center initiatives. Feature → Business Impact → Application: Fully redundant Ethernet interface with 10/100/1000 Mbps and PoE support enables remote management without single points of failure, cutting on-site maintenance and enabling scalable rack-level administration. Application: Distributed IT infrastructure with centralized monitoring. Feature → Business Impact → Application: 12x C13 plus 1x C19 outlets and a 230 V, 16 A infeed provide ample headroom for dense server configurations, while a 3.7 kW power envelope helps prevent overloads in busy racks. Application: High-density compute environments. Feature → Business Impact → Application: Zero-U mounting compatibility in VX IT frames allows vertical installation in the zero-U space, maximizing rack real estate and simplifying retrofits. Application: Space-constrained rack installations. Feature → Business Impact → Application: PoE-powered PDU web server and emergency power sequencing for outputs reduce dependency on separate control power and enable rapid fault isolation. Application: Critical infrastructure with robust uptime requirements. Feature → Business Impact → Application: Ambient monitoring options with CMC III sensors provide scalable environmental insight, supporting proactive cooling and risk management. Application: Data centers with strict environmental controls.
Get a Quick Quote for a Rittal 7979417
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979417?
Enquire Now
FAQs
The DK 7979.417 PDU is designed for VX IT frames with enclosure widths of at least 1,200 mm and supports zero-U mounting options. Each pack weighs 3 kg and includes assembly parts for straightforward installation. Position the PDU to align with infeed IEC C20 and connect the 12x C13 / 1x C19 outlets to the IT loads, then configure network access via the redundant Ethernet ports for remote management.
Per-output energy measurement provides granular visibility into how electrical load is distributed across sockets, enabling precise cost allocation and targeted energy optimization. This supports capacity planning, reduces waste, and strengthens audit readiness for data centers by supplying verifiable usage data at the socket level.
Yes, the DK 7979.417 includes a PoE-capable management path and a fully redundant Ethernet interface set. It offers two RJ45 ports plus one PoE-enabled port, delivering remote monitoring and control without a dedicated management power cable. This design minimizes clutter and improves reliability in power-critical IT environments.
The DK 7979.417 complies with EMC Directive 2014/30/EU and conforms to EN 62368-1 safety standards, ensuring CE marking and regulatory readiness for regulated IT environments. These certifications matter for audit compliance, supplier risk reduction, and ensuring safe, dependable operation within modern data centers and racks.
The PDU operates at 230 V (AC) with a maximum current of 16 A and a total power up to 3.7 kW. It provides 12 x C13 sockets and 1 x C19, fed from a single IEC C20 infeed. This configuration supports dense IT deployments while maintaining safe operating margins and straightforward surge protection planning.
