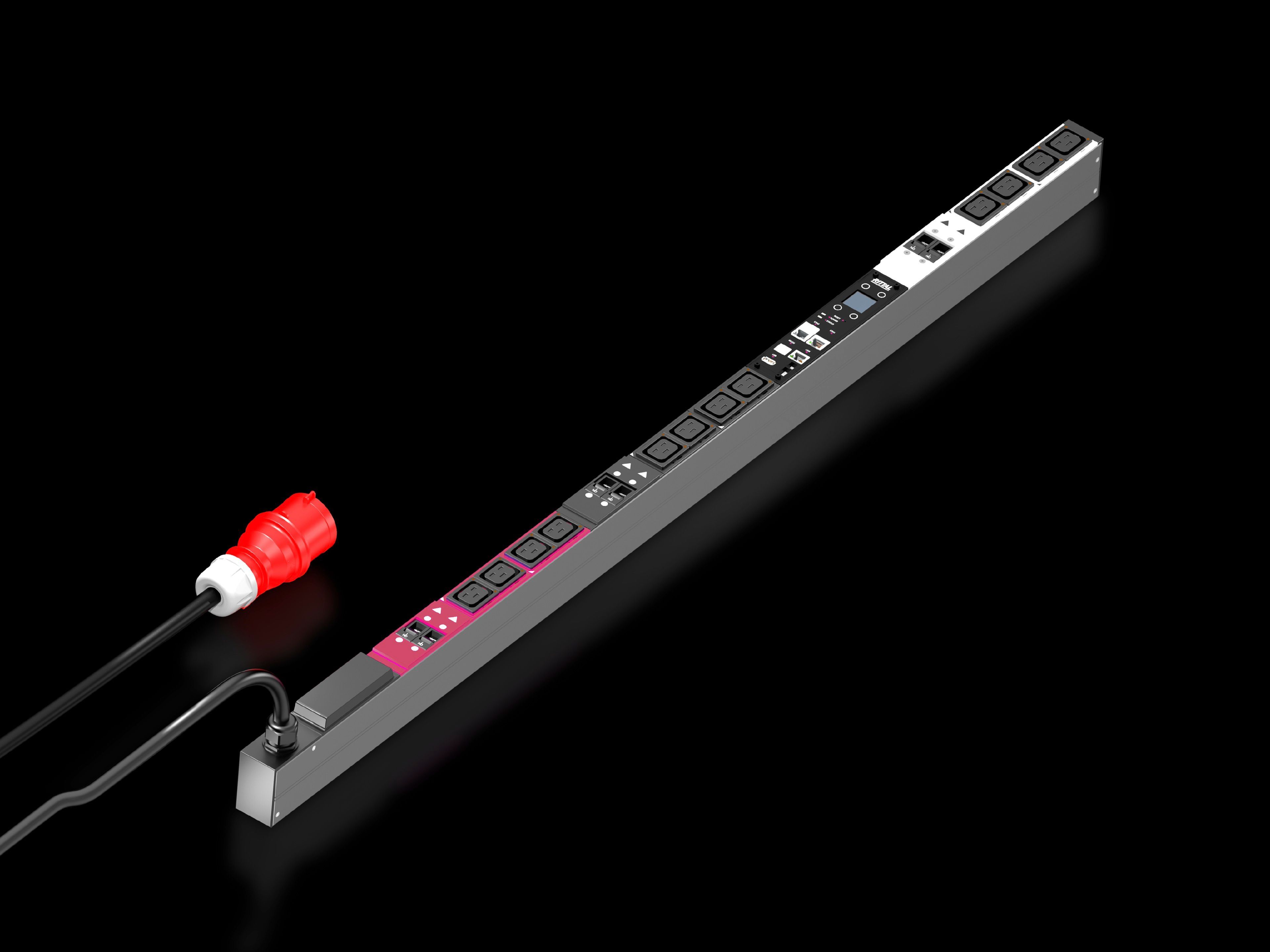

Rittal 7979431 PDU Managed Power Distribution - EN 62368-1
Part Number: 7979431
Manufacturer
Rittal
Part number
7979431
Category
Alt Part Number
DK 7979.431
Quick Summary
Rittal 7979431 PDU Managed Power Distribution delivers per-output energy measurement and real-time monitoring for IT rack deployments. IT teams face rising power density and opaque energy use, which complicates capacity planning and fault diagnosis. This unit addresses those challenges with an integrated display, a fully redundant Ethernet interface, and flexible management functions per output. It adheres to CE conformity, EMC Directive requirements, and EN 62368-1 safety standards, ensuring compliant operation in modern data centers. The device supports VX IT and 19 inch enclosure integration, enabling zero-U mounting options, PoE powered web server operation, and remote configuration. Real-world value comes from improved visibility, faster fault isolation, and measurable energy efficiency improvements across the rack.
Product Information
Extended Description
7979431 Rittal: DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1495x70 mm, IEC 60 320: 12x C19
Article number
DK 7979.431
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,495 mm
No. of sockets and type
12 x C19
Sockets
12 x C 19
Rated operating voltage
400 V (AC)
Rated current (max.)
32 A
Power consumption
22 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Number RJ45 ports for sensor units max
6
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Customs tariff number
85369095
EAN
4028177948150
ETIM 8
EC002762
ETIM 7.0
EC000330
ECLASS 8.0
27142604
Product description
DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1495x70 mm, IEC 60 320: 12x C19
Feature: Per-output energy measurement with monitoring translates to immediate business impact: precise cost allocation, capacity planning, and fault detection. Application: IT racks in data centers or colocation facilities benefit from granular energy data, enabling you to identify hot spots and optimize workload placement. The 12 C19 sockets and 400 V input deliver scalable power for multi-server configurations, while the 3-phase infeed and 22 kW rating accommodate dense IT deployments. Feature: Integrated display and rotatable controller enable on-site status checks without tools. Business impact: faster troubleshooting and reduced mean time to repair. Application: IT rooms with limited console access can rely on the built-in display and web interface for rapid status checks across outputs. Feature: Built-in network interface with two RJ45 ports, one PoE, enabling remote management and PDU web server power via PoE. Business impact: continuous monitoring and reduced downtime through remote configuration and alerting. Application: data centers seeking centralized rack power management across multiple frames. Feature: Compatibility with VX IT enclosure frames and zero-U mounting enables efficient use of rack space and tool-free installation in tight IT environments. Business impact: faster deployment and improved rear cabling management. Application: rack installations in telecom rooms, edge data centers, and enterprise IT closets. Feature: Optional Type 3 overvoltage protection with interchangeable arresters, residual current measurement per feed, and CAN bus sensor support for ambient monitoring. Business impact: enhanced protection and compliance with monitoring requirements. Application: critical IT deployments needing robust surge protection and environmental awareness. Feature: Protocols and security options include HTTP/HTTPS, SSL, SSH, Telnet, and NTP, plus 12 outputs monitored via a 2x RJ45 interface. Business impact: secure, auditable access and accurate time synchronization for logs. Application: data centers requiring compliant, traceable power management.
Get a Quick Quote for a Rittal 7979431
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979431?
Enquire Now
FAQs
The DK PDU Managed fits VX IT enclosure frames with a frame width of ≥ 1800 mm and VX IT 19 in mounting angles of ≥ 1800 mm. This enables zero-U mounting within the rack and preserves rear-access space for cabling. Compatibility ensures seamless integration in scalable IT infrastructures and simplifies retrofits in existing VX IT configurations.
Each output slot is monitored with energy measurement and switching controls, enabling per-outlet visibility of current, voltage, and power. This granular data supports precise cost allocation, load balancing, and proactive capacity planning, helping reduce energy waste and identify anomalous consumption on individual outlets.
Yes, the PDU features a fully redundant Ethernet interface with two RJ45 ports and one PoE port for remote management and powering a web server. It supports HTTP, HTTPS, SSL, SSH, Telnet, and NTP for secure, auditable access and accurate time synchronization across multiple devices in a data center.
The unit complies with CE conformity and EMC Directive 2014/30/EU and is built to EN 62368-1 safety standards. These certifications ensure electrical safety, electromagnetic compatibility, and regulatory compliance for modern IT environments and data center deployments.
By delivering per-output energy data and enabling centralized remote management, the PDU helps reduce idle power, optimize workload placement, and shorten mean time to repair. The result is improved energy efficiency, lower operational costs, and faster, data-driven uptime improvements across dense IT rack deployments.
