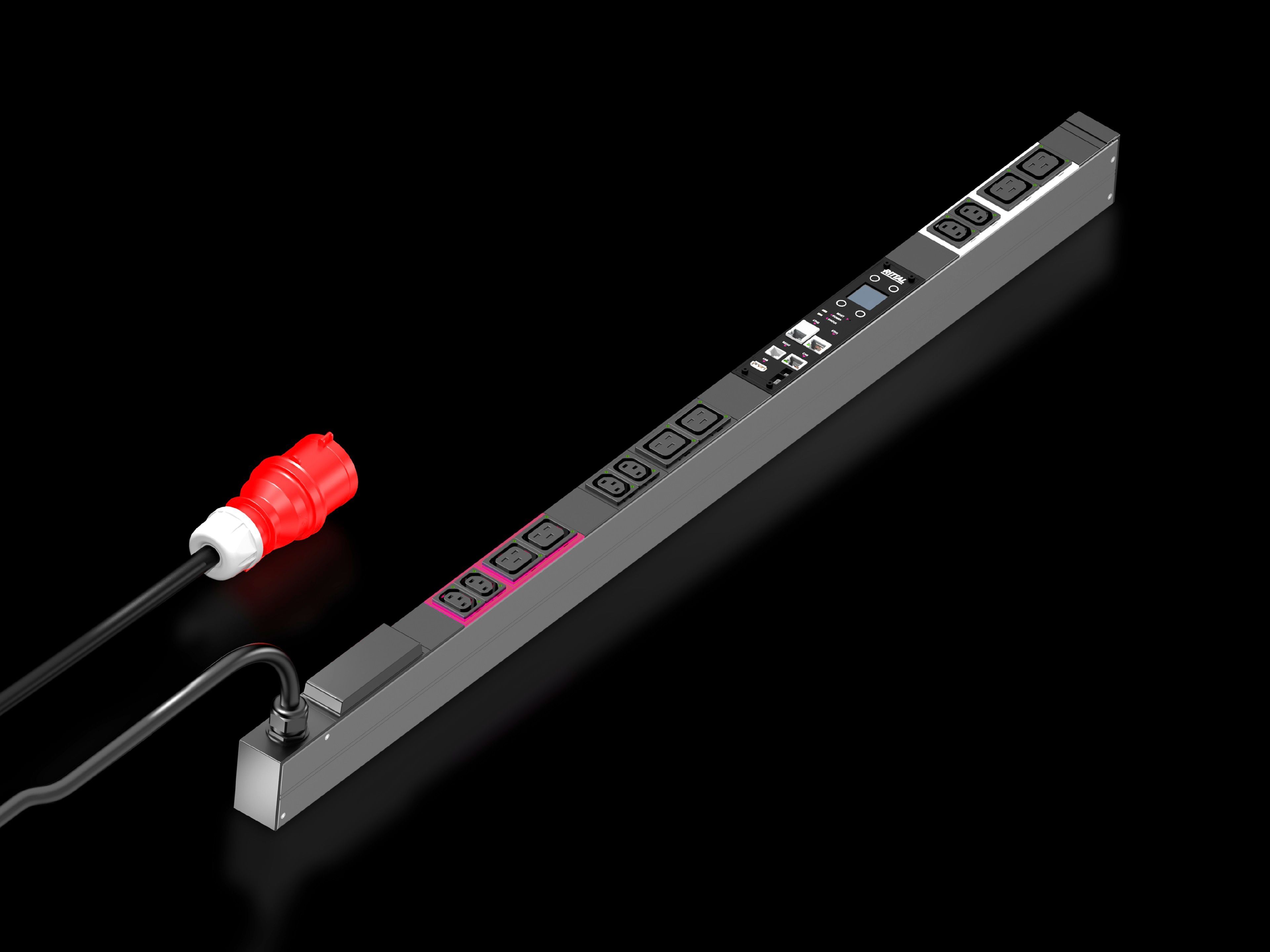

Rittal DK 7979.432 PDU – EN 62368-1
Part Number: 7979432
Manufacturer
Rittal
Part number
7979432
Category
Alt Part Number
DK 7979.432
Quick Summary
Rittal DK 7979.432 PDU is a high-end rack power distribution unit with energy measurement for IT racks. It addresses the pain of limited visibility into per-outlet energy use and slow fault isolation in data centers. It meets EMC Directive 2014/30/EU and EN 62368-1 safety requirements with CE marking, ensuring safe deployment across diverse IT environments. Beyond power distribution, its integrated energy management and dual Ethernet interfaces enable proactive governance of power usage and rapid fault detection. For procurement and engineering teams, this translates to lower operating costs, higher uptime, and scalable, standards-compliant rack infrastructures. Its modular design and robust certification make it a dependable foundation for future IT deployments.
Product Information
Extended Description
7979432 Rittal: DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1095x70 mm, IEC 60 320: 6x C13 + 6x C19
Article number
DK 7979.432
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,095 mm
No. of sockets and type
6 x C13 / 6 x C19
Sockets
6 x C 13 | 6 x C 19
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,200 mm
Packs of
1 pc(s).
Weight/pack
4 kg
Customs tariff number
85369095
EAN
4028177948167
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1095x70 mm, IEC 60 320: 6x C13 + 6x C19
Energy measurement per output slot enables precise consumption visibility and outlet-level fault isolation, driving targeted energy-saving initiatives and capacity planning. Business impact: reduced energy waste and improved budgeting accuracy; application: IT rack deployments in data centers where per-outlet control is required. The PDU provides 6x C13 and 6x C19 sockets powered from a 400 V AC, 16 A, 11 kW supply, supporting high-density IT loads with compact 44x1095x70 mm footprint. Business impact: maximize rack density while maintaining thermal and electrical safety; application: VX IT enclosure-based racks. The rotatable 180° display/controller, replaceable unit, and six-outlet monitoring deliver installation flexibility and straightforward maintenance. Business impact: faster commissioning and reduced downtime; application: challenging space configurations. Fully redundant Ethernet interfaces (2x RJ45, 1x PoE) plus web server, SSH, Telnet, and NTP enable resilient remote management and secure access. Business impact: continuous monitoring and quicker issue resolution; application: centralized IT power governance across campuses. Optional Type 3 overvoltage protection, inter-changeable arresters, residual current measurement (type B), CAN bus ambient sensors, and color options tailor protection and monitoring. Business impact: enhanced safety, regulatory compliance, and system visibility; application: mission-critical data centers and compliant rack farms.
Get a Quick Quote for a Rittal 7979432
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979432?
Enquire Now
FAQs
The DK 7979.432 PDU is designed for VX IT enclosures with zero-U mounting options and straightforward insertion into compatible frames. The unit features a rotatable 180° display/controller and replaceable components, enabling tool-free maintenance in tight rack spaces. Use the 3 m CEE input cable to connect to a 400 V supply and connect the six C13 and six C19 outputs to IT equipment. Ensure proper clearance for cooling and verify network interface connections (2x RJ45, 1x with PoE) for remote management.
DK 7979.432 offers energy measurement and monitoring for each output slot, enabling outlet-level visibility and control. The PDU supports per-outlet switching, a PDU web server via PoE, and comprehensive monitoring via its network interface. This allows you to track power usage, set thresholds, and rapidly identify overloaded outlets, reducing energy waste and improving capacity planning for IT racks.
Yes. With 400 V AC, 16 A per inlet, 11 kW total capacity, and 6x C13 plus 6x C19 outlets, the PDU is built for high-density server environments. Its energy management functions, dual Ethernet interfaces, and optional overvoltage protection/RCM options support robust, scalable deployments in data centers and server rooms, while compatibility with VX IT enclosures simplifies integration into existing rack ecosystems.
The DK 7979.432 complies with EMC Directive 2014/30/EU and EN 62368-1 safety standards, and carries CE marking. These certifications support safe operation in heterogeneous IT spaces and ensure compliance during audits. The product also offers optional protective features and monitoring options to help meet additional regional requirements and industry standards.
Maintenance is streamlined by a replaceable display/controller unit and routine checks of its energy measurements, network interfaces, and outlet health. Optional Type 3 overvoltage protection, arresters, and residual current measurement improve safety and compliance, while CAN bus ambient sensors enable environmental monitoring. ROI is driven by improved energy visibility, reduced downtime, and scalable, standards-based rack deployments that lower operating costs over the life of the IT infrastructure.
