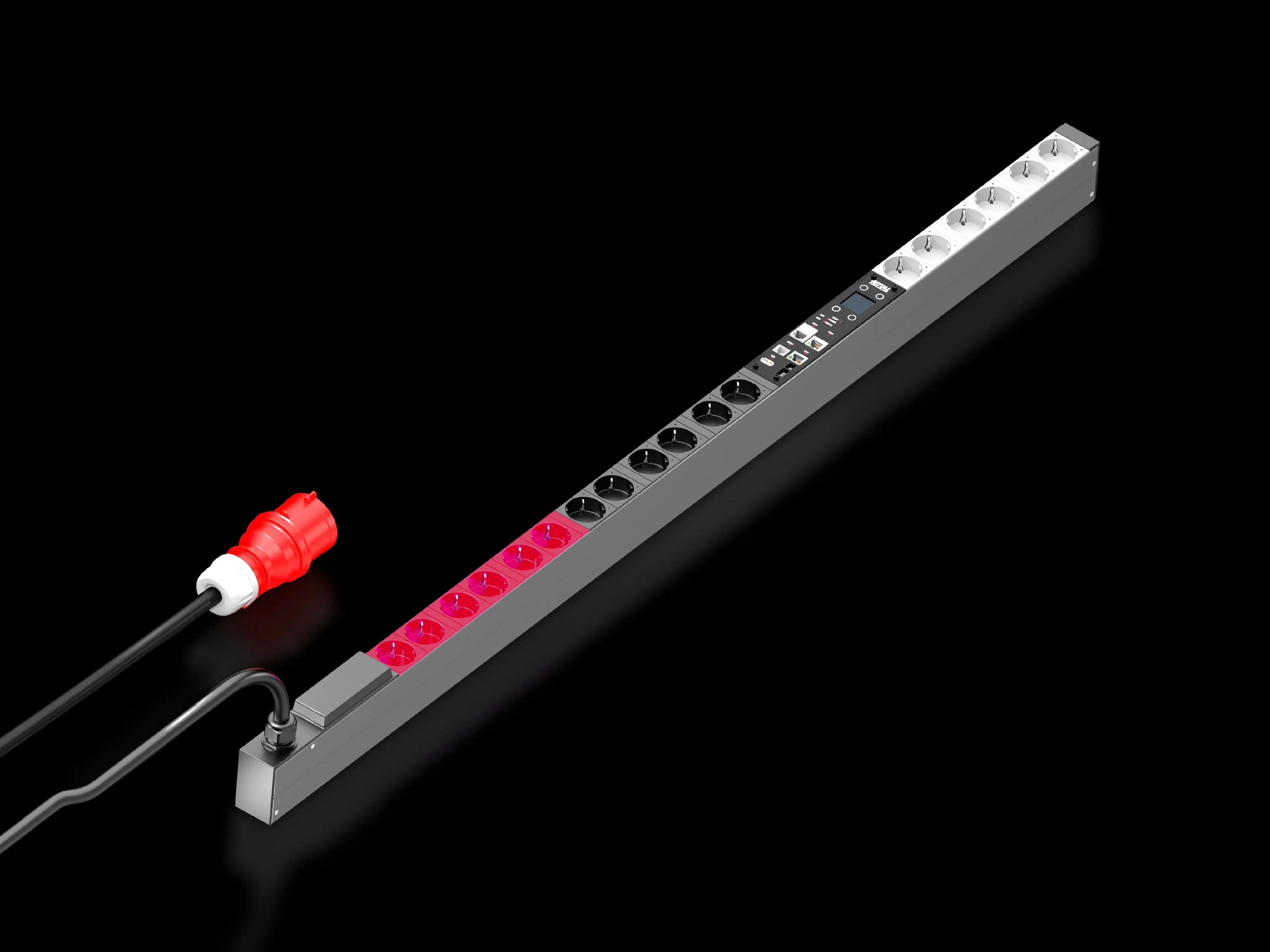

Rittal DK 7979.433 PDU - Energy Monitoring
Part Number: 7979433
Manufacturer
Rittal
Part number
7979433
Category
Alt Part Number
DK 7979.433
Quick Summary
Rittal DK 7979.433 PDU delivers high-end power distribution for IT racks, with integrated energy measurement and per-output monitoring. Engineers often struggle to see which outlets consume the most power, risking inefficiency and downtime. The solution complies with EMC Directive 2014/30/EU and EN 62368-1 with CE marking, offering robust safety and regulatory assurance. The built-in web server, PoE-enabled Ethernet interface, and rotatable display enable remote management, real-time energy visibility, and reliable IT operations across data centers and server rooms. In practice, per-slot data supports chargeback, capacity planning, and fault isolation, making maintenance teams more productive and procurement more informed about energy-efficient hardware.
Product Information
Extended Description
7979433 Rittal: DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1495x70 mm, CEE 7/3: 18x earthing pin
Article number
DK 7979.433
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,495 mm
No. of sockets and type
18 x earthing-pin (type F, CEE 7/3)
Sockets
18 x earthing-pin
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Customs tariff number
85366990
EAN
4028177948174
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1495x70 mm, CEE 7/3: 18x earthing pin
Feature: Energy measurement and monitoring per output slot. Business Impact: Improves energy visibility and enables outlet-level control to reduce peak loads and energy waste. Application: IT racks in data centers and server rooms needing granular power data. Feature: 18 sockets at 400 V for 16 A max per infeed with 11 kW capacity. Business Impact: Supports high-density IT deployments while maintaining safe, balanced power distribution. Application: Enterprise IT rooms and laboratory racks that require reliable multi-outlet energization. Feature: Fully redundant Ethernet interface with 2x RJ45 and PoE. Business Impact: Enables secure remote management, high-availability monitoring, and powered devices without extra switches. Application: Remote IT operations centers and distributed networking closets. Feature: Rotatable 180° display/controller and replaceable unit. Business Impact: Simplifies on-site servicing and orientation-based labeling for maintenance crews. Application: VX IT and TS IT rack environments where tool-free access reduces downtime. Feature: Options for Type 3 overvoltage protection, residual current measurement, and CAN bus ambient sensors. Business Impact: Elevates protection, compliance, and environmental monitoring without replacing the PDU. Application: Data centers requiring enhanced fault protection and ambient visibility. Feature: Zero-U mounting capability and compatibility with VX IT frames. Business Impact: Maximizes rack space, accelerates installation, and minimizes downtime. Application: IT rack deployments where space efficiency and quick integration matter.
Get a Quick Quote for a Rittal 7979433
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979433?
Enquire Now
FAQs
The PDU is designed for IT data-center racks and fits VX IT enclosure frames of at least 1,800 mm, with a footprint aligned to 44 mm width, 1,495 mm length, and 70 mm height. It supports zero-U mounting in the VX IT and TS IT racks, enabling tool-free, space-efficient installation and straightforward retrofit in existing infrastructures.
The unit delivers energy measurement, switching, and monitoring functions per output slot, with a web server interface for real-time data access. Per-outlet monitoring supports energy accounting, fault tracing, and proactive capacity planning, while the PoE-enabled network path ensures secure, remote visibility from standard IT management tools.
Yes. It adheres to EMC Directive 2014/30/EU and is certified to EN 62368-1 with CE marking, delivering verified electrical safety and electromagnetic compatibility for IT environments, data centers, and commercial network rooms.
Key features include 18 CEE sockets at 400 V and 16 A, a total power capacity of 11 kW, a 3-phase infeed, a 3 m connection cable, and a fully redundant Ethernet interface with PoE. Its advanced monitoring, display, and configurable protection options support high-availability IT operations and precise energy management.
The DK 7979.433 PDU offers tool-free zero-U mounting in VX IT frames, a rotatable display/controller that simplifies on-site setup, and a replaceable controller unit. Optional features such as Type 3 overvoltage protection and CAN bus ambient sensors streamline ongoing maintenance and future-proof expansion without replacing the unit.
