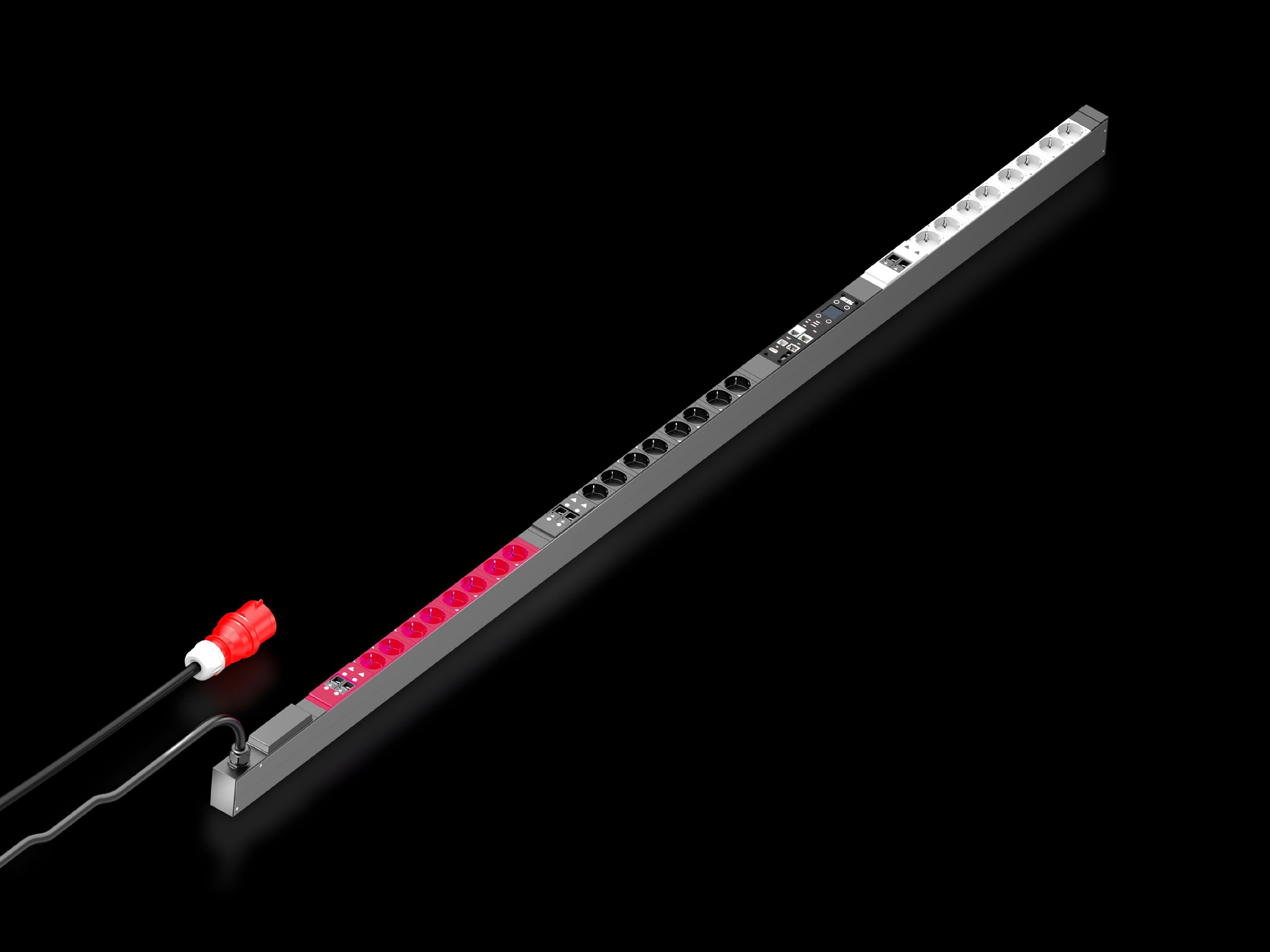

Rittal DK 7979.434 PDU - EN 62368-1
Part Number: 7979434
Manufacturer
Rittal
Part number
7979434
Category
Alt Part Number
DK 7979.434
Quick Summary
Rittal DK 7979.434 PDU is a managed high-end power distribution unit designed for IT racks and data centers. It provides energy measurement and monitoring on every output slot, enabling precise visibility and control over critical loads. This solution is CE marked and adheres to the EMC Directive 2014/30/EU and EN 62368-1 safety standards, ensuring robust compliance in demanding environments. By combining a compact, modular footprint with a web interface and PoE-enabled management, it supports proactive capacity planning, reduces energy waste, and simplifies rack power governance for IT teams and procurement.
Product Information
Extended Description
7979434 Rittal: DK PDU international, managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x2065x70 mm, CEE 7/3: 24x earthing-pin
Article number
DK 7979.434
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 2,095 mm
No. of sockets and type
24 x earthing-pin (type F, CEE 7/3)
Sockets
24 x earthing-pin
Rated operating voltage
400 V (AC)
Rated current (max.)
32 A
Power consumption
22 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Number RJ45 ports for sensor units max
6
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 2,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 2,200 mm
Packs of
1 pc(s).
Customs tariff number
85369095
EAN
4028177948181
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU international, managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x2065x70 mm, CEE 7/3: 24x earthing-pin
Feature → Business Impact → Application: Energy measurement per output slot delivers granular visibility into power usage, enabling data-driven load management and cost allocation across servers and storage. This reduces overprovisioning and supports capacity planning in dense IT environments. Application: data centers and VX IT/Rack installations. Feature → Business Impact → Application: 400 V AC, 32 A, 22 kW capacity with a 3-phase infeed supports high-density server chassis and GPU/AI racks, improving reliability and allowing scalable growth. Application: enterprise and hyperscale racks. Feature → Business Impact → Application: Fully redundant Ethernet interface with PoE-enabled web server allows remote monitoring, alerting, and control from centralized DCIM tools, cutting on-site service time. Application: multi-rack environments and distributed IT. Feature → Business Impact → Application: 24 x earthing-pin (type F, CEE 7/3) sockets and 3 m CEE supply cable simplify installation and reduce cabling complexity, delivering faster deployment. Application: data center floor upgrades and new rack builds. Feature → Business Impact → Application: Rotatable 180° display/controller and replaceable unit controller minimize maintenance downtime and extend lifecycle in field conditions. Application: serviceable PDU in evolving IT cabinets. Feature → Business Impact → Application: Optional Type 3 overvoltage protection, residual current monitoring, and CAN bus ambient sensors enable proactive protection, compliance auditing, and environmental awareness. Application: regulated facilities and traceable safety programs.
Get a Quick Quote for a Rittal 7979434
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979434?
Enquire Now
FAQs
When deploying the DK 7979.434 in VX IT frames, use the zero-U mounting option to maximize space efficiency. The enclosure supports a 2,200 mm or greater footprint and the PDU’s 2,095 mm length aligns with VX IT system rails, enabling tool-free mounting in many configurations. Ensure cable routing maintains 3 m supply length and proper earthing to meet EMC requirements.
The PDU provides energy measurement, switching and monitoring on each individual output slot, with a network interface for centralized visibility. Monitoring includes status indicators and the ability to integrate with CAN bus sensors for ambient data. This allows precise load profiling, fault detection, and energy accounting per circuit in data centers and server rooms.
Yes. The DK 7979.434 PDU complies with CE marking and EN 62368-1 safety standards, reflecting adherence to rigorous European safety and EMC requirements for IT equipment. The EMC Directive 2014/30/EU guidance is also applicable, ensuring reliable operation in networked, high-density IT environments.
The PDU includes a PoE-enabled web server and a fully redundant Ethernet interface, allowing secure HTTP/HTTPS access, NTP time synchronization, and SSH/Telnet for management. This enables remote configuration, event logging, and energy data collection across multiple racks without direct on-site visits, improving incident response and operational uptime.
ROI benefits come from improved energy visibility, reduced outages due to advanced protection features, and streamlined maintenance via replaceable controllers and easy access to per-outlet data. Maintenance considerations include periodic firmware/MCU checks, assessing the optional overvoltage protection and CAN sensors for ambient monitoring, and ensuring compatibility with VX IT enclosure frames for future scalability.
