Rittal DK 7979.436 PDU - EN 62368-1 Certified High-End Rack Power Distribution
Part Number: 7979436
Manufacturer
Rittal
Part number
7979436
Category
Alt Part Number
DK 7979.436
Quick Summary
The DK 7979.436 PDU by Rittal delivers advanced power distribution for IT racks with energy measurement built in. Engineers often struggle to monitor per-output energy use while maintaining uptime in compact data-center spaces. This product complies with EMC Directive 2014/30/EU and EN 62368-1, ensuring regulatory alignment and safer operation in modern networks. By integrating a networked interface and display, it enables precise energy visibility and remote control, delivering business value through reduced energy waste and simplified rack-management workflows.
Product Information
Extended Description

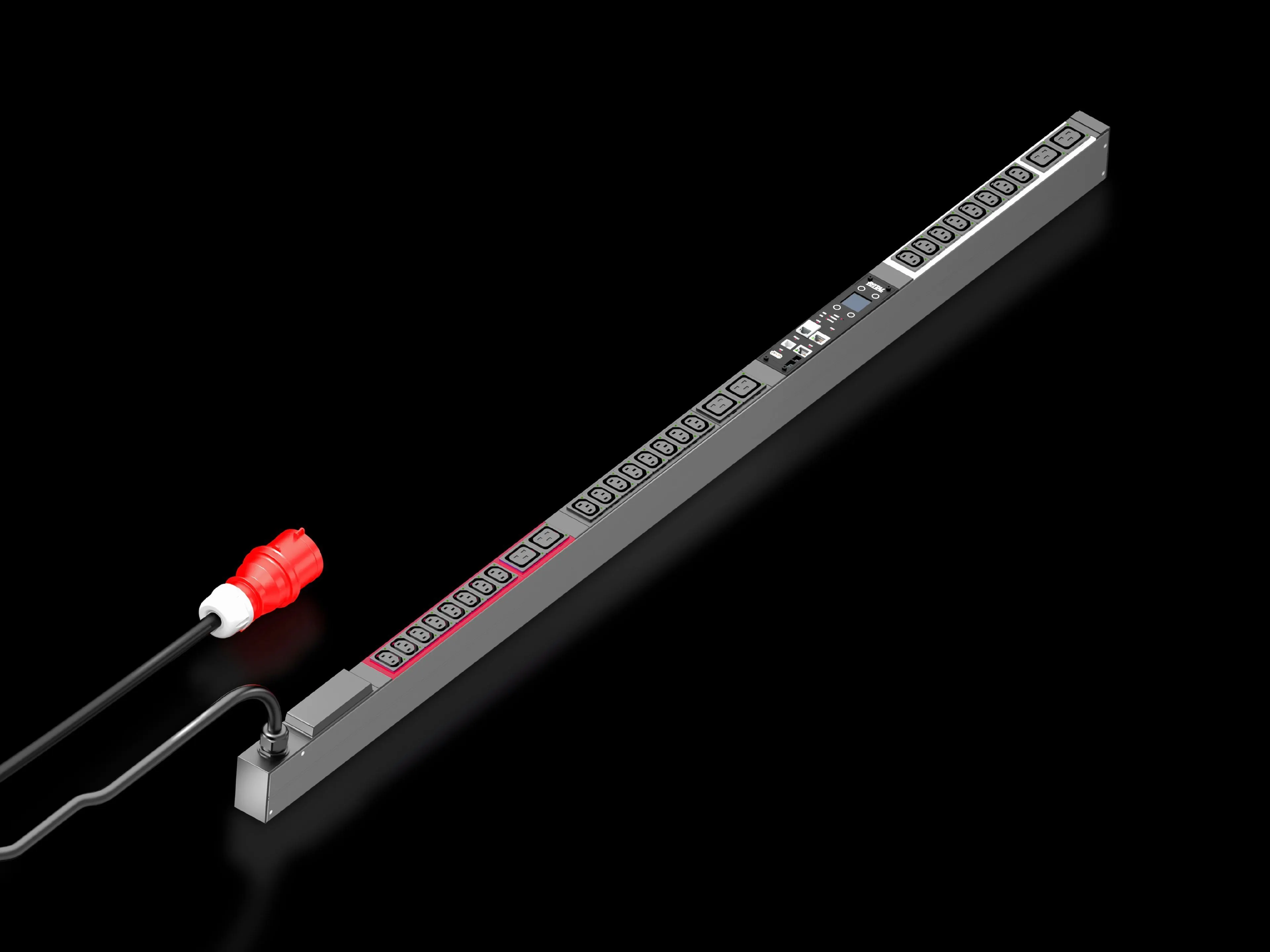

7979436 Rittal: DK PDU international, managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1495x70 mm, IEC 60 320: 24x C13 + 6x C19
Article number
DK 7979.436
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,495 mm
No. of sockets and type
24 x C13 / 6 x C19
Sockets
24 x C 13 | 6 x C 19
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
6.02 kg
Customs tariff number
85366990
EAN
4028177948204
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU international, managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1495x70 mm, IEC 60 320: 24x C13 + 6x C19
Energy measurement per output slot enables precise cost allocation and runtime optimization, translating to measurable energy savings and improved capacity planning for IT facilities. The business impact is clear: you can pinpoint high-demand outlets, enforce usage policies, and reduce cooling loads by streaming outlet-level data to your monitoring platform. In application, this is ideal for data centers and enterprise IT rooms where per-socket visibility drives efficiency and budget adherence. The DK 7979.436 PDU ships with a rotatable display/controller and a robust 3 m CEE input cable, improving on-site installation speed and reducing commissioning time in VX IT enclosure deployments. Network interface with 10/100/1000 Mbit/s (2x RJ45, 1x PoE) supports seamless remote management and firmware updates, while its 24x C13 and 6x C19 outlets deliver flexible power distribution for mixed IT loads. Optional overvoltage protection, residual current monitoring, and CAN bus sensors enable scalable, compliant safety and environmental monitoring for larger architectures. These capabilities address common objections by delivering a future-ready, serviceable platform that reduces maintenance overhead and enhances uptime.
Get a Quick Quote for a Rittal 7979436
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979436?
Enquire Now
FAQs
The DK 7979.436 PDU is designed for IT rack environments and zero-U mounting within Rittal VX IT enclosures. It supports VX IT enclosure frames ≥ 1,800 mm and VX IT 19" mounting angles ≥ 1,800 mm, simplifying integration into existing rack systems and reducing required space for power distribution.
Key specs include 24× C13 and 6× C19 outlets, rated operating voltage 400 V AC, maximum current 16 A, and a 3 m CEE input lead. Interfaces are fully redundant Ethernet with 10/100/1000 Mbit/s (2x RJ45, 1x PoE) for robust remote management and monitoring.
Ideal for data centers, server rooms, and enterprise IT facilities requiring per-output energy measurement, detailed load visibility, and scalable monitoring. Its compact WLD dimensions (44x1495x70 mm) and modular options support rack-dense deployments with enhanced energy management and maintenance planning.
The PDU complies with EMC Directive 2014/30/EU and EN 62368-1, ensuring electrical safety and electromagnetic compatibility for enterprise networks while aligning with industry safety expectations for IT hardware and enclosure systems.
Per-output energy data, web/SSH/Telnet access, and optional CAN bus ambient sensors enable proactive maintenance, energy optimization, and faster fault isolation. This reduces unplanned downtime, improves asset utilization, and lowers total cost of ownership over the product lifecycle.
