Rittal DK 7979.438 PDU for IT racks – EN 62368-1
Part Number: 7979438
Manufacturer
Rittal
Part number
7979438
Category
Alt Part Number
DK 7979.438
Quick Summary

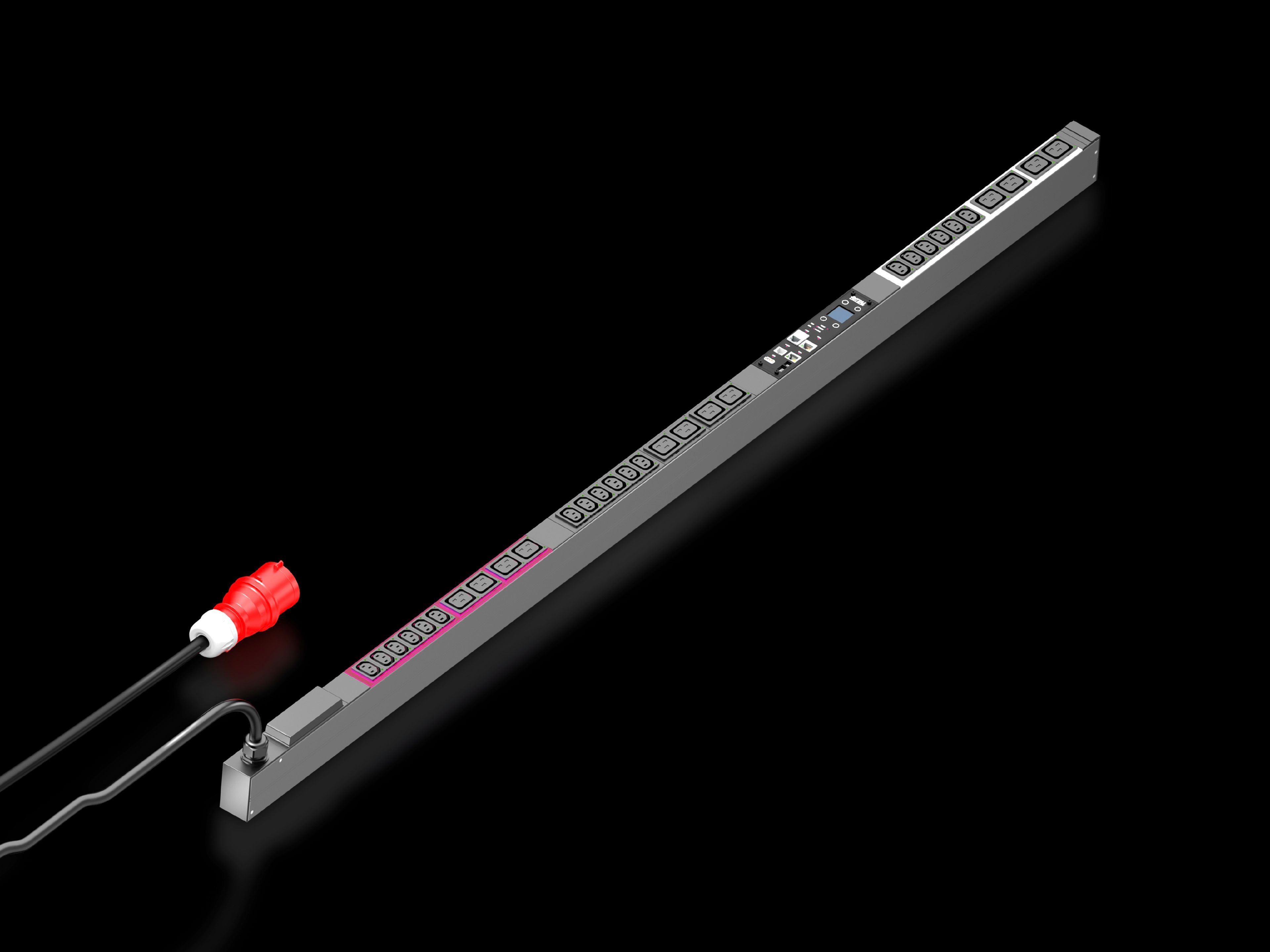

Rittal DK 7979.438 PDU provides advanced energy monitoring for IT racks and data center environments. Engineers often struggle with invisible power usage and capacity planning due to fragmented visibility across outlets. It is CE marked and conforms to EMC Directive 2014/30/EU and EN 62368-1 safety standards, ensuring regulatory compliance. By delivering per-output energy measurement, remote monitoring, and robust network access, this PDU enables precise energy management, improved reliability, and tangible cost savings across enterprise IT workloads.
Product Information
Extended Description
7979438 Rittal: DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1695x70 mm, IEC 60 320: 18x C13 + 12x C19
Article number
DK 7979.438
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Emergency power supply to PDU web server via PoE, sequential disconnection of the outputs
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,695 mm
No. of sockets and type
18 x C13 / 12 x C19
Sockets
18 x C 13 | 12 x C 19
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 2,000 mm
Packs of
1 pc(s).
Customs tariff number
85369095
EAN
4028177948228
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU managed, high-end power distribution incl. energy measurement, switching and monitoring functions per output slot, with network interface and display, WLD: 44x1695x70 mm, IEC 60 320: 18x C13 + 12x C19
Feature energy measurement per output → Business Impact precise chargeback, optimized cooling, and reduced energy waste → Application IT racks in data centers demanding granular energy analytics. Feature per-output switching and monitoring with a PoE-powered web server → Business Impact centralized, secure control and real-time health checks → Application Remote IT infrastructure management with minimal on-site maintenance. Feature compact WLD 44x1695x70 mm and 18x C13 / 12x C19 sockets → Business Impact high-density, space-efficient power distribution → Application Dense IT racks and VX IT enclosure deployments. Feature fully redundant Ethernet interface 10/100/1000 Mbit/s → Business Impact resilient connectivity and faster incident response → Application Remote monitoring, SSH/TELNET access, and NTP synchronization. Feature options for overvoltage protection, residual current measurement (type B), and ambient CAN bus sensors → Business Impact enhanced safety, compliance, and environmental awareness → Application Critical infrastructure monitoring with scalable protection. Feature compatibility with VX IT frames and mounting angles → Business Impact straightforward installation with zero-U space optimization → Application Rack mounting in modern data centers and telecom rooms.
Get a Quick Quote for a Rittal 7979438
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979438?
Enquire Now
FAQs
The DK 7979.438 PDU is designed for VX IT enclosure systems and can be mounted in zero-U space. It supports vertical installation in VX IT frames and TS IT racks, enabling space optimization without tools. This makes deployment faster and reduces disruption in busy data centers while preserving cabinet integrity and airflow management.
Each output slot provides energy measurement and monitoring, enabling precise chargeback and load balancing. This visibility helps identify inefficiencies, prevents overheating from uneven loads, and supports compliance reporting. Combined with per-outlet alerts, it reduces risk of outages and improves capacity planning for IT networks.
Yes. The PDU is CE marked and conforms to EMC Directive 2014/30/EU, with EN 62368-1 safety standard compliance. These certifications assure regulatory alignment for IT equipment, reduce procurement risk, and support audit-readiness in regulated environments such as financial data centers and healthcare facilities.
The unit supports type 3 overvoltage protection with interchangeable arresters, residual current measurement (type B) per inlet/phase/fuse, and optional ambient CAN bus sensors for environmental monitoring. These features improve fault detection, enhance safety, and help maintain optimal operating conditions across the data center footprint.
With per-outlet energy data, remote monitoring, and robust protections, operators can optimize energy use, reduce waste, and minimize unplanned downtime. The web/server access via PoE streamlines maintenance, while compatibility with VX IT frames simplifies future upgrades and capacity expansion, delivering measurable ROI over the equipment lifecycle.
