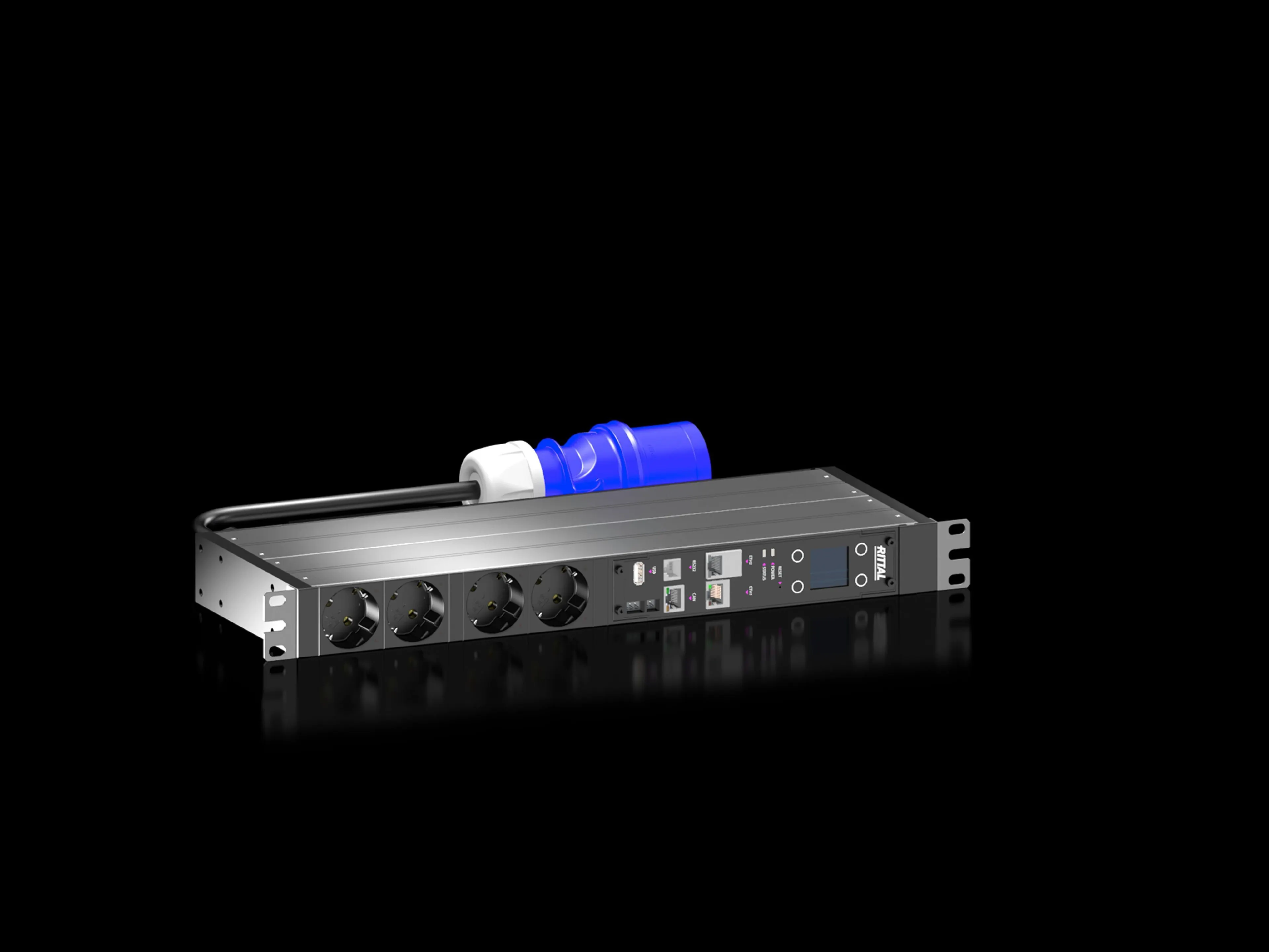

Rittal DK 7979.503 PDU - energy measurement per output slot
Part Number: 7979503
Manufacturer
Rittal
Part number
7979503
Category
Alt Part Number
DK 7979.503
Quick Summary
Rittal DK 7979.503 PDU metered+ is a compact IT rack power distribution unit with energy measurement per output slot. It provides precise visibility into energy use for each connected device, enabling better workload placement and cost control in data centers. IT environments often struggle with per-outlet accountability, leading to inefficiencies; this PDU delivers clear, per-slot data via its display and network interface. The device complies with CE standards under EMC Directive 2014/30/EU and EN 62368-1, ensuring reliable operation in 5–50 °C and 10–95% humidity. Additional value comes from USB mass configuration, tool-free vertical mounting in VX IT frames, and the option to connect CMC III CAN bus sensors for ambient monitoring, enhancing operational insight and ROI.
Product Information
Extended Description
7979503 Rittal: DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WHD: 450x44x144 mm, CEE 7/3: 4 x earthing-pin
Article number
DK 7979.503
Design
482.6 mm (19") version
Product description
High-end power distribution in a compact design for IT network and server racks. With power measurement per individual outgoing slot.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors
Measurement functions, description
Measurement per phase or infeed
Dimensions
Height: 44 mm | Depth: 144 mm | Length: 450 mm
No. of sockets and type
4 x earthing-pin, type F, CEE 7/3
Sockets
4 x earthing-pin
Rated operating voltage
230 V (AC)
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 800 mm
Packs of
1 pc(s).
Customs tariff number
85369095
EAN
4028177948273
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WHD: 450x44x144 mm, CEE 7/3: 4 x earthing-pin
Energy measurement per output slot drives accurate chargeback and targeted optimization, reducing waste and cooling loads in dense IT racks. The business impact is tangible: deeper visibility translates to lower operating costs and smarter capacity planning in IT environments. Applications include data centers, server rooms, and network closets where precise per-outlet data supports service level alignment and cost allocation. The 482.6 mm (19") design enables seamless VX IT rack integration, with zero-U mounting in VX IT or TS IT frames for a compact footprint and faster deployment. A rotatable 180° display and replaceable controller unit simplify installation and servicing, while USB 2.0 supports mass configuration and firmware updates, minimizing maintenance windows. Optional CMC III CAN bus sensors allow ambient monitoring for proactive environmental control and compliance readiness.
Get a Quick Quote for a Rittal 7979503
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979503?
Enquire Now
FAQs
The DK 7979.503 PDU can be mounted vertically in the VX IT enclosure frame with zero-U space, enabling tool-free installation. It uses a 3 m CEE cable connection and provides four CEE 7/3 sockets. For deployment, attach the PDU to the rack rail, connect the supply, and configure via USB or the web interface. This minimizes downtime and preserves valuable rack space.
This PDU operates at 230 V AC with a maximum current of 16 A and a power rating of 3.7 kW. It provides 4 x earthing-pin sockets (CEE 7/3) and an infeed of 1 phase. The unit supports a 3 m connection cable, a 450 mm length, and a 44 mm height for compact integration in IT racks.
Yes. The DK 7979.503 PDU supports optional CMC III CAN bus sensors for ambient monitoring, with support for up to 16 sensors. This enables proactive environmental tracking (temperature, humidity, etc.) alongside per-outlet energy data, helping protect equipment and maintain compliance in data center environments.
The PDU complies with EMC Directive 2014/30/EU and EN 62368-1. It carries CE marking and uses standard IT rack design practices. Documentation notes ETIM EC002762 and ECLASS 8.0 27142604 classifications, ensuring compatibility with procurement and engineering systems.
Per-outlet energy measurement enables precise chargeback and energy budgeting, reducing wasted power. USB mass configuration accelerates mass deployment across multiple racks, lowering commissioning time. Web server access and firmware updates streamline maintenance, while optional ambient sensors support preventive actions, contributing to lower downtime and longer equipment life.
