Rittal 7979504 PDU metered+ - Energy per slot
Part Number: 7979504
Manufacturer
Rittal
Part number
7979504
Category
Alt Part Number
DK 7979.504
Quick Summary
Rittal PDU metered+ provides IT rack power distribution with energy measurement per output slot for data centers and server rooms. Engineers frequently lack visibility into per-outlet loads, hindering capacity planning and proactive risk management. CE marking under EMC Directive 2014/30/EU and EN 62368-1 safety compliance support reliable operation in demanding IT environments. This PDU integrates with VX IT rack ecosystems, enabling zero-U mounting and scalable, per-slot energy visibility across the data center. Network connectivity and USB mass-configuration simplify deployment, firmware updates, and ongoing cost control through centralized monitoring.
Product Information
Extended Description

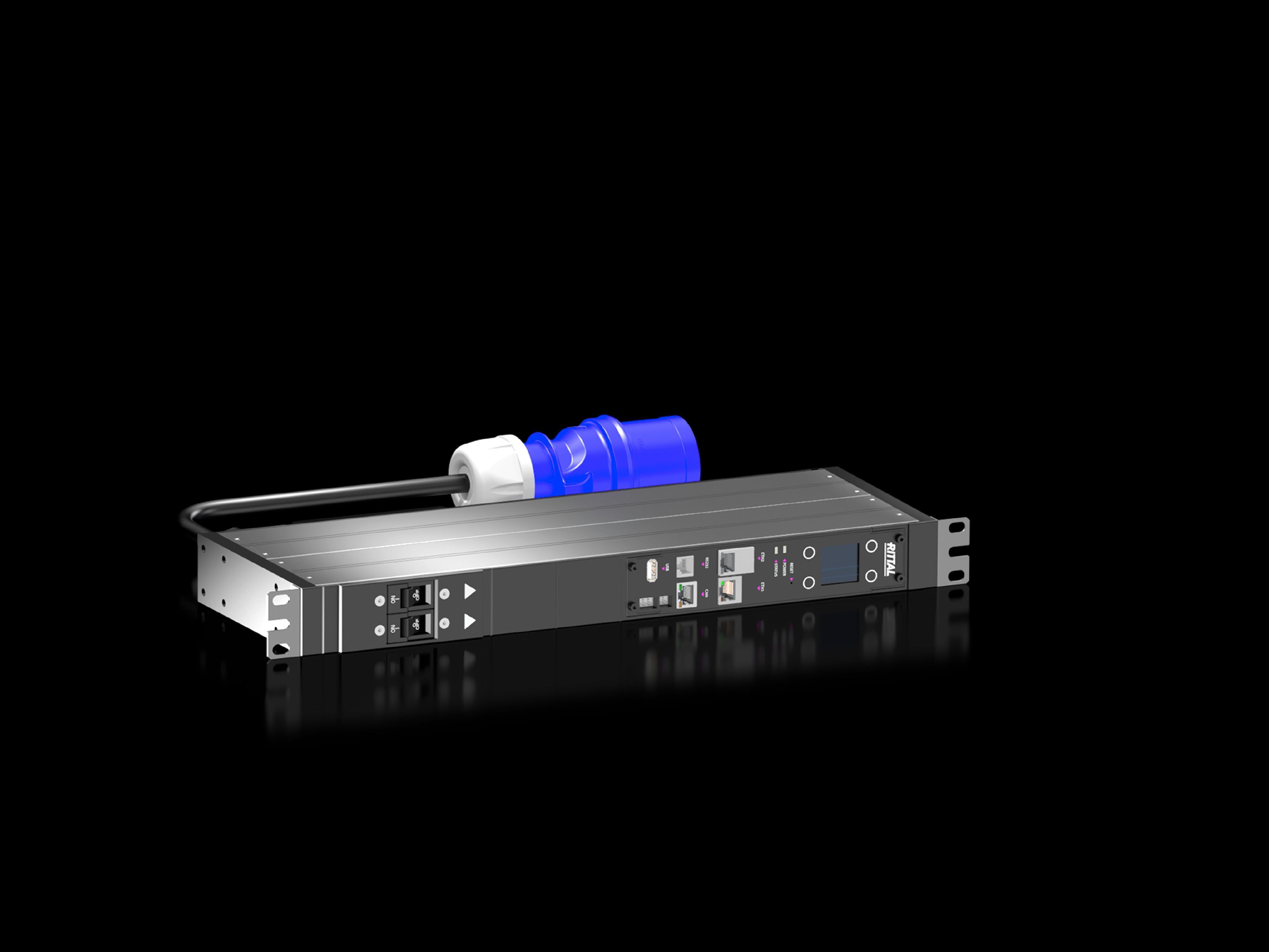

7979504 Rittal: DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 450x44x144 mm, IEC 60 320: 4x C13, 2x C19
Article number
DK 7979.504
Design
482.6 mm (19") version
Product description
High-end power distribution in a compact design for IT network and server racks. With power measurement per individual outgoing slot.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors
Measurement functions, description
Measurement per phase or infeed
Dimensions
Height: 44 mm | Depth: 144 mm | Length: 450 mm
No. of sockets and type
4 x C13 / 2 x C19
Sockets
4 x C 13 | 2 x C 19
Rated operating voltage
230 V (AC)
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Number RJ45 ports for sensor units max
2
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 800 mm
Packs of
1 pc(s).
Customs tariff number
85369095
EAN
4028177948280
ETIM 8
EC002762
ETIM 7.0
EC000330
ECLASS 8.0
27142604
Product description
DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 450x44x144 mm, IEC 60 320: 4x C13, 2x C19
Feature energy measurement per output slot → Business Impact precise load visibility enables accurate energy budgeting and capacity planning → Application data center load balancing and proactive maintenance across server racks. Feature compact WLD 450x44x144 mm design → Business Impact fits 19" IT racks without footprint creep → Application efficient space utilization in VX IT enclosures. Feature network interface plus USB 2.0 mass configuration → Business Impact faster deployment and easier firmware updates → Application scalable rollout in multi-rack environments. Feature ambient monitoring option with CMC III CAN bus sensors (max 16) → Business Impact enhanced environmental awareness and risk mitigation → Application supports proactive cooling and compliance in dense data centers. Feature 4 x C13 / 2 x C19 outlets at 230 V, 32 A, 7.4 kW total → Business Impact predictable power provisioning and overload protection → Application reliable server and network equipment operation. Feature rotatable 180° display and replaceable controller unit → Business Impact simplified maintenance and serviceability → Application reduces downtime during diagnostics. Feature VX IT enclosure compatibility (≥800 mm frames) → Business Impact seamless integration with existing rack systems → Application streamlined installation and upgrade pathways.
Get a Quick Quote for a Rittal 7979504
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979504?
Enquire Now
FAQs
For DK 7979.504 installation, mount the unit in the VX IT enclosure frame (≥800 mm) using zero-U mounting where applicable. Connect the 3 m CEE input power cable to a suitable 230 V supply and attach the 4 x C13 and 2 x C19 outlets to protected loads. Use the USB port for mass configuration and ensure network access for monitoring.
Per-outlet energy measurement provides real-time load data for every connected device, enabling precise energy budgeting, peak-load management, and capacity planning. This granular visibility reduces the risk of overloading single outlets, supports accurate billing, and helps justify upgrade cycles or reconfiguration to optimize uptime and efficiency.
Yes. The PDU offers an option to connect CMC III CAN bus sensors for ambient monitoring, with support for up to 16 sensors. This expands environmental visibility alongside electrical metrics, aiding cooling optimization and environmental compliance in data center environments.
The DK 7979.504 PDU metered+ complies with EMC Directive 2014/30/EU and safety standard EN 62368-1, with CE marking. These certifications help ensure reliable operation in commercial IT settings and align with industry best practices for electrical and information technology equipment.
The per-slot energy data enables accurate consumption tracking and load balancing, reducing waste and cooling costs. USB mass-configuration and remote monitoring support faster deployments, streamlined firmware updates, and lower maintenance costs, while robust construction and removable components minimize downtime during servicing.
