Rittal 7979510 DK PDU metered+ - EN 62368-1 compliant
Part Number: 7979510
Manufacturer
Rittal
Part number
7979510
Category
Alt Part Number
DK 7979.510
Quick Summary
DK PDU metered+ is a high-end IT rack power distribution unit with per-slot energy measurement. This enables data centers and enterprise IT rooms to see exactly how power is distributed across outlets. It is designed to meet EN 62368-1 and EMC Directive 2014/30/EU, with a rotatable display and secure network access for remote monitoring. Used with VX IT enclosures, it supports scalable energy monitoring, zero-U mounting, and rapid provisioning, delivering improved uptime and lower operating costs for modern rack ecosystems.
Product Information
Extended Description
7979510 Rittal: DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x845x70 mm, IEC 60 320: 12x C13, 1x C19
Article number
DK 7979.510
Product description

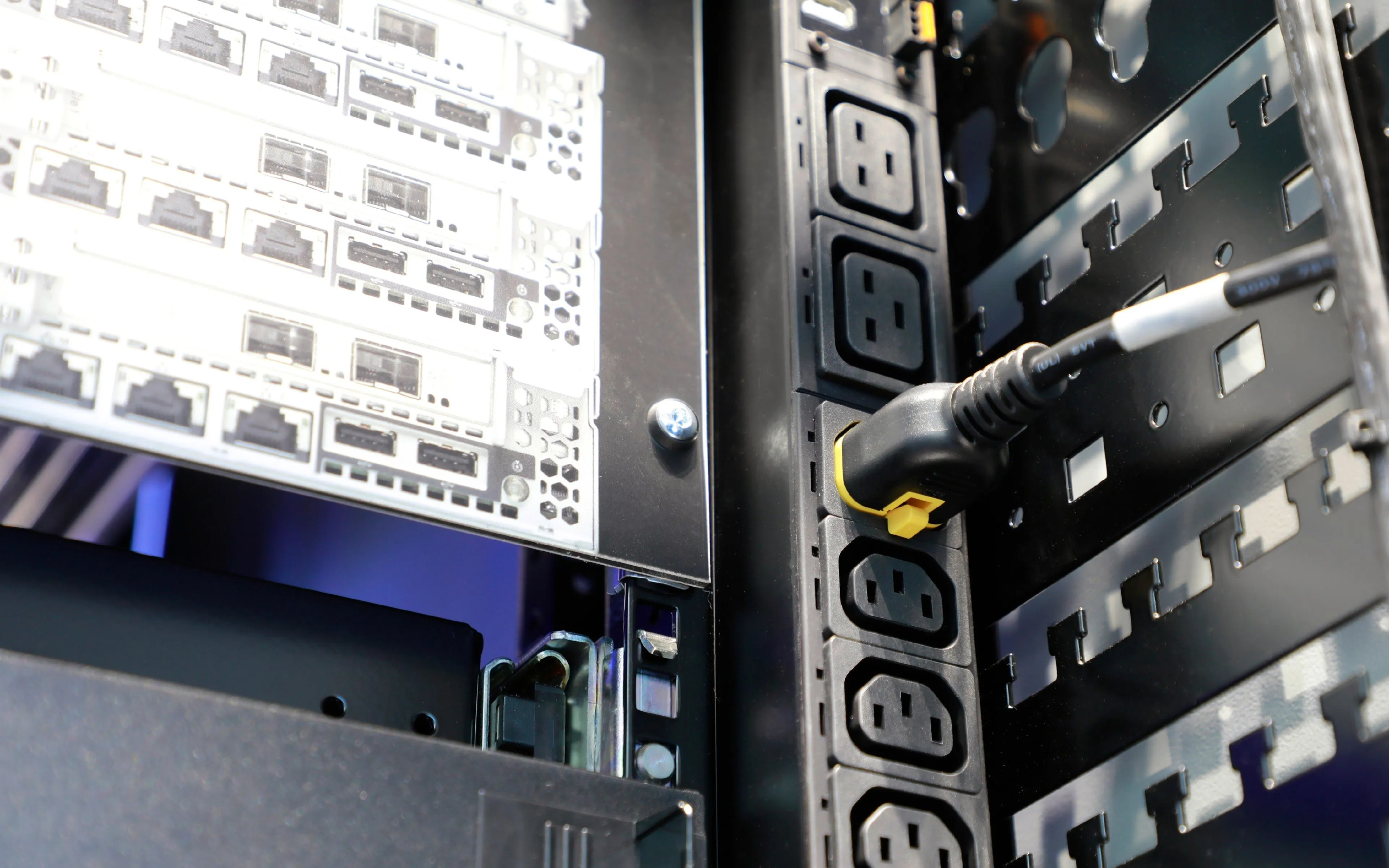

High-end power distribution in a compact design for IT network and server racks. With power measurement per individual outgoing slot.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 845 mm
No. of sockets and type
12 x C13 / 1 x C19
Sockets
12 x C 13 | 1 x C 19
Rated operating voltage
230 V (AC)
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,200 mm
Packs of
1 pc(s).
Customs tariff number
85366990
EAN
4028177948297
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x845x70 mm, IEC 60 320: 12x C13, 1x C19
Feature → Business Impact → Application: Per-slot energy measurement provides granular visibility into outlet-level load, enabling accurate capacity planning and reduction of idle power in dense server racks. This directly supports energy management programs and helps avoid over-provisioning in data centers; ideal for IT rooms seeking data-driven workload balancing. Feature → Business Impact → Application: The compact 44x845x70 mm form factor with 12x C13 and 1x C19 sockets fits VX IT enclosure frames, enabling zero-U mounting and seamless rack integration for vertical deployments in space-constrained environments. Feature → Business Impact → Application: Network interface plus a rotatable 180° display delivers local and remote management, firmware updates, and data logging via USB, improving provisioning speed and ongoing visibility across large-scale installations. Feature → Business Impact → Application: USB mass-configuration accelerates rollout across multiple PDUs, reducing onsite labor and enabling consistent configuration in multi-rack environments. Feature → Business Impact → Application: Optional Type 3 overvoltage protection with interchangeable arresters plus CAN bus ambient sensors offer enhanced safety and monitoring, minimizing risk of downtime and supporting compliance in mission-critical IT facilities. Feature → Business Impact → Application: 230 V, 16 A rating and 3 m connection cable with CEE inlet support standard IT power delivery, aligning with typical data center power distribution and simplifying integration with existing rack infrastructure.
Get a Quick Quote for a Rittal 7979510
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979510?
Enquire Now
FAQs
The DK PDU metered+ is designed for VX IT enclosure integration with zero-U mounting. It ships with assembly parts and fits frames ≥ 1,200 mm. Mounting is tool-free in the zero-U space, and the 3 m CEE input cable provides flexible routing. For a smooth rollout, align with VX IT mounting angles and verify infeed connections per enclosure plan.
The PDU operates at 230 V AC with a maximum current of 16 A and a measured power draw up to 3.7 kW. It provides energy measurement per output slot (12 x C13 and 1 x C19) and supports a single infeed. The unit includes a USB 2.0 interface for data logging and supports web server, SSH, HTTPS, and NTP for remote management.
Yes. With per-slot energy measurement, scalable VX IT compatibility, and a compact footprint, it suits high-density deployments. The PDU’s remote management, secure access, and ambient monitoring options make it ideal for data centers aiming to optimize energy use, balance loads, and maintain uptime across multiple racks.
The unit complies with EN 62368-1 and the EMC Directive 2014/30/EU. It also supports standard IT power interfaces and network protocols, ensuring conformity for secure operation in modern data centers and IT rooms.
The per-slot energy measurement enables precise energy accounting and load balancing, reducing wasted power and enabling data-driven capacity planning. USB mass-configuration accelerates deployment across racks, lowering labor costs. Optional overvoltage protection and ambient CAN sensors further reduce downtime risk, contributing to faster ROI through improved uptime and safer power distribution.
