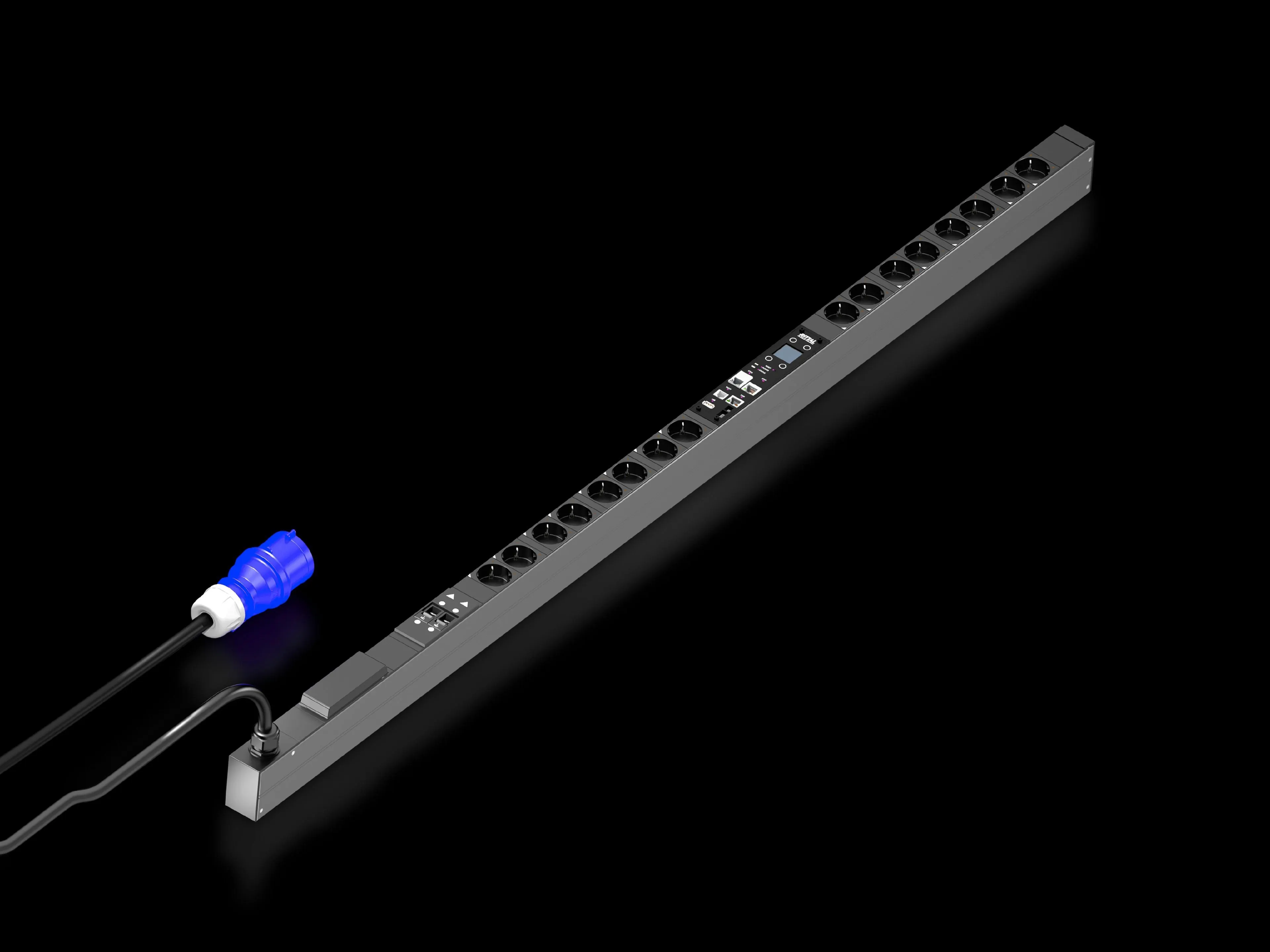

Rittal DK 7979.514 PDU metered+ - Energy per slot, 32 A
Part Number: 7979514
Manufacturer
Rittal
Part number
7979514
Category
Alt Part Number
DK 7979.514
Quick Summary
Rittal DK 7979.514 PDU metered+ is an IT rack power distribution unit with per-slot energy measurement. In data centers and IT rooms, uneven loads often cause hotspots and inefficient cooling; this PDU makes load distribution visible and actionable. It complies with EMC Directive 2014/30/EU and EN 62368-1 safety standards, with optional Type 3 overvoltage protection and modular CAN-bus sensors for ambient monitoring. Compact VX IT enclosure compatibility and a robust web/server interface enable remote monitoring and simplified deployment. With precise energy data and flexible installation, it supports measurable improvements in energy efficiency, asset utilization, and total cost of ownership.
Product Information
Extended Description
7979514 Rittal: DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x1495x70 mm, CEE 7/3: 16x earthing-pin
Article number
DK 7979.514
Product description
High-end power distribution in a compact design for IT network and server racks. With power measurement per individual outgoing slot.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,495 mm
No. of sockets and type
16 x earthing-pin (type F, CEE 7/3)
Sockets
16 x earthing-pin
Rated operating voltage
230 V (AC)
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Number RJ45 ports for sensor units max
2
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Customs tariff number
85369095
EAN
4028177948334
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x1495x70 mm, CEE 7/3: 16x earthing-pin
Energy measurement per output → Business impact: granular load visibility reduces peak demand, optimizes cooling, and lowers energy costs. Application: IT racks and server rooms needing per-slot power insight. Compact zero-U mounting in VX IT frames → Business impact: saves rack space and simplifies installation in dense data centers. Application: vertical mounting in VX IT enclosures where space is at a premium. Network interface and display with web server support → Business impact: remote monitoring and faster triage without site visits. Application: centralized power management across multiple racks. Rotatable 180° display/controller unit and replaceable components → Business impact: easier maintenance and configurable deployment. Application: field service and long-term reliability. USB 2.0 for mass configuration, firmware updates, and data logging → Business impact: faster rollout, audit-friendly firmware, and traceable history. Application: IT operations and compliance teams. Options for Type 3 overvoltage protection with interchangeable arresters and residual current monitoring (RCM) → Business impact: enhanced protection and compliance. Application: critical IT infrastructure needing robust safety features and continuous monitoring. CAN bus sensors (max 16) and CMC III ambient monitoring → Business impact: scalable environmental awareness and proactive maintenance. Application: data centers with expanded sensor networks and HVAC coordination.
Get a Quick Quote for a Rittal 7979514
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979514?
Enquire Now
FAQs
The PDU fits in zero-U space of VX IT frames and ships with assembly parts for straightforward mounting. It occupies the 1,800 mm+ range of VX IT enclosures and uses the 3 m CEE cable for connection. The 16 outlets are wired to a single infeed, and the rotatable display can be oriented for optimal viewing during deployment and maintenance.
The PDU delivers energy measurement per output slot and per infeed, enabling precise load balancing across 16 outlets. Access is through a built-in web server (HTTP/HTTPS) and an USB 2.0 port for mass configuration and data logging. This supports remote monitoring, firmware updates, and audit-ready reporting without intrusive on-site visits.
The product adheres to EMC Directive 2014/30/EU and EN 62368-1 safety standards. Optional Type 3 overvoltage protection with interchangeable arresters and residual current monitoring can be added, along with CAN bus sensors for ambient monitoring. These features enable safer operation in regulated data centers and enable proactive maintenance.
Per-slot energy data enables precise load shedding and better cooling planning, reducing peak power consumption and cooling costs. The streamlined deployment, remote management, and firmware updates minimize site visits and extend lifespan. Over time, this translates to lower operating expenses, improved asset utilization, and a clearer path to regulatory compliance.
The PDU supports up to two RJ45 ports for sensor units and can connect AMBIENT CAN sensors via CAN bus. Optional CMC III ambient monitoring sensors can be integrated for a broader environmental picture. Additional enclosure colors and overvoltage protection configurations provide flexibility for varying IT environments and aesthetics.
