Rittal DK 7979.530 PDU metered+ - Energy per slot
Part Number: 7979530
Manufacturer
Rittal
Part number
7979530
Category
Alt Part Number
DK 7979.530
Quick Summary
Rittal PDU metered+ delivers compact, intelligent power distribution for IT racks, enabling per-slot energy measurement and monitoring in data centers. Engineers often struggle with blind power monitoring and the risk of overload in dense IT racks. Key certifications include EMC Directive 2014/30/EU and EN 62368-1, ensuring CE conformity and safe operation in rack environments. These capabilities translate to improved IT rack power management and data center efficiency, while enabling remote configuration and monitoring via network interfaces for better asset utilization and uptime.
Product Information
Extended Description

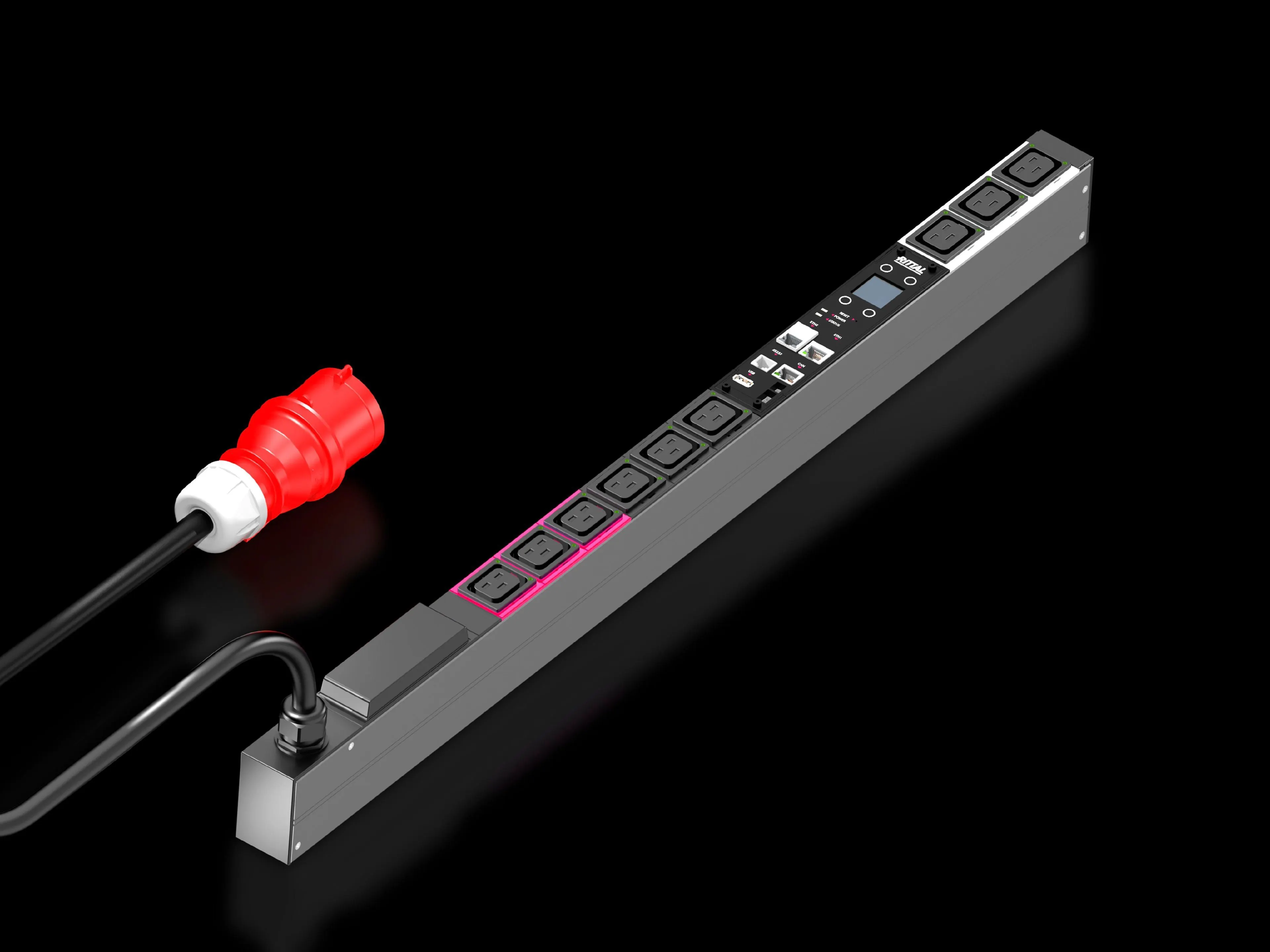

7979530 Rittal: DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x845x70 mm, IEC 60 320: 9x C19
Article number
DK 7979.530
Product description
High-end power distribution in a compact design for IT network and server racks. With power measurement per individual outgoing slot.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 845 mm
No. of sockets and type
9 x C19
Sockets
9 x C 19
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,200 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,200 mm
Packs of
1 pc(s).
Weight/pack
3.94 kg
Customs tariff number
85369095
EAN
4028177948365
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x845x70 mm, IEC 60 320: 9x C19
Feature energy measurement per output → Business Impact precise load profiling and energy transparency across IT racks → Application IT data centers and server rooms requiring per-outlet monitoring. Feature rotatable display and integrated network interface → Business Impact effortless remote management and faster provisioning → Application VX IT enclosures and 19" rack environments with zero-U mounting options. Feature 400 V AC, 16 A rating with 9 x C19 sockets → Business Impact supports high-density equipment and scalable power distribution → Application dense IT racks and server deployments seeking reliable power budgets. Feature USB 2.0 port for mass configuration, firmware updates & data logging → Business Impact streamlined deployment, reproducible configurations, and audit trails → Application IT rooms needing centralized management and compliance. Feature optional overvoltage protection, residual current monitoring (type B), and ambient CAN sensor support → Business Impact enhanced safety, proactive fault detection, and environmental monitoring → Application data centers requiring robust protection and energy analytics. Feature compact WLD 44x845x70 mm enclosure and VX IT compatibility → Business Impact space-efficient integration with minimal rack footprint → Application modular IT rack builds and scalable cabinet systems.
Get a Quick Quote for a Rittal 7979530
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979530?
Enquire Now
FAQs
The DK 7979.530 is designed for vertical mounting in VX IT frames and supports zero-U installation without tools. It ships with assembly parts and fits the VX IT enclosure frame specifications, enabling a compact, tool-free integration into existing IT racks while maintaining serviceability and cable management. This minimizes downtime during deployment and simplifies incremental upgrades in growing data centers.
Each output slot provides energy measurement, allowing per-phase or per-infeed monitoring. The unit supports 3–phase infeeds, with a total rating of 400 V AC and up to 16 A, enabling detailed load profiling, capacity planning, and fault isolation. This data can be logged via the USB interface for compliance reporting and capacity audits in IT environments.
Yes. The product adheres to EMC Directive 2014/30/EU and EN 62368-1 standards, ensuring electromagnetic compatibility and safety in rack installations. It is CE marked and designed for use in professional IT infrastructure, providing assurance for regulated data centers and enterprise IT deployments.
The PDU operates at 400 V AC with a maximum current of 16 A and provides 9x C19 sockets. It uses a 3 m CEE connection cable and offers a rotatable display for flexible access. Optional features include Type B residual current monitoring, overvoltage protection, and CAN bus ambient sensors for environmental monitoring, all contributing to safer, more reliable operation.
The PDU metered+ delivers energy transparency per outlet, enabling precise consumption tracking and informed capacity planning. It reduces energy waste, improves uptime through proactive monitoring, and simplifies remote management via network access. Combined with its compact form factor and VX IT compatibility, it supports scalable, cost-effective IT rack power management across growing data centers.
