Rittal DK 7979.533 PDU metered+ - EN 62368-1
Part Number: 7979533
Manufacturer
Rittal
Part number
7979533
Category
Alt Part Number
DK 7979.533
Quick Summary

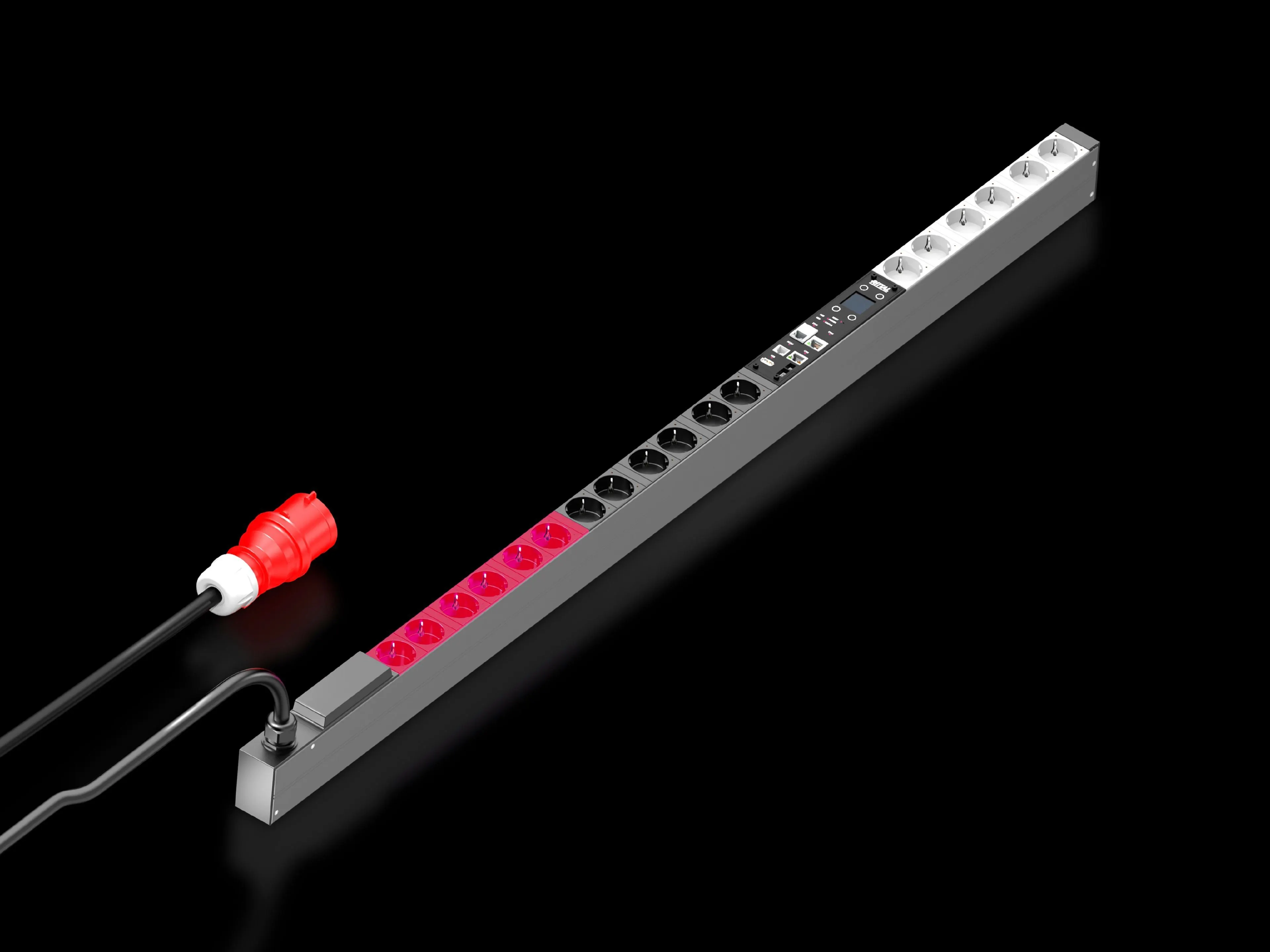

Rittal DK 7979.533 PDU metered+ is a smart PDU for IT racks that measures energy per outlet. Many data centers struggle with opaque energy data and uneven power distribution, which leads to inefficiency and higher operating costs. CE and EMC Directive compliance ensure regulatory alignment, EN 62368-1 safety certification adds risk mitigation, and connectivity options enable secure remote management. Its compact, zero-U mounting in VX IT or TS IT racks saves space and simplifies installation, while per-slot energy measurement drives precise capacity planning. Built for 400 V three-phase systems, it delivers up to 16 A and 11 kW, with a rotatable display, USB configuration, and web interfaces for centralized IT power monitoring.
Product Information
Extended Description
7979533 Rittal: DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x1495x70 mm, CEE 7/3: 18x earthing-pin
Article number
DK 7979.533
Product description
High-end power distribution in a compact design for IT network and server racks. With power measurement per individual outgoing slot.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,495 mm
No. of sockets and type
16 x earthing-pin (type F, CEE 7/3)
Sockets
18 x earthing-pin
Rated operating voltage
400 V (AC)
Rated current (max.)
16 A
Power consumption
11 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
Packs of
1 pc(s).
Customs tariff number
85369095
EAN
4028177948396
ETIM 8
EC002762
ETIM 7.0
EC000330
ECLASS 8.0
27142604
Product description
DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x1495x70 mm, CEE 7/3: 18x earthing-pin
Energy metering per output slot is the core feature that translates into tangible savings. With metered+, you gain visibility into where and how power is consumed within the rack, enabling chargeback granularity and smarter load balancing. In IT deployments, this means you can identify phantom loads, prevent overprovisioning, and plan capacity during expansion without guesswork. Compact, rugged design supports zero-U mounting in VX IT or TS IT racks. The enclosure’s aluminium section is black anodised for durability, and the unit ships with necessary assembly parts for quick integration. The 1,495 mm length matches standard VX IT frames, making it easy to position without tools or rework. Flexible management features reduce administration time. A rotatable 180° display/controller can be replaced on-site, and the USB 2.0 port supports mass configuration and firmware updates, while the web server and supported protocols (HTTP, HTTPS, SSH, Telnet, NTP) provide secure remote access from centralized systems. Power and safety specifications pair with practical monitoring options. Infeeds single 3-phase input, 400 V, 16 A and 11 kW capacity ensure responsive distribution. Optional accessories, such as Type 3 overvoltage protection with interchangeable arresters and residual current measurement, help maintain uptime and regulatory compliance without sacrificing flexibility. Compatibility and integration considerations matter in mixed environments. The PDU supports CEE 7/3 sockets (Type F), 16 outlets, and is designed to fit VX IT enclosures with a frame width of at least 1,800 mm. USB, CAN bus sensors, and CAN-based ambient monitoring options expand the monitoring surface without introducing complexity.
Get a Quick Quote for a Rittal 7979533
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979533?
Enquire Now
FAQs
The DK 7979.533 PDU metered+ is designed for vertical mounting in VX IT or TS IT racks with zero-U space. It requires a VX IT enclosure frame of at least 1,800 mm and a single 3‑phase 400 V infeed. Includes assembly parts and a 3 m connection cable. Its 1,495 mm length matches standard VX IT frames, enabling tool-free positioning and straightforward integration into existing IT rack layouts.
Each output slot is metered, delivering energy measurements per outlet for precise usage visibility. The unit supports measurement per phase or infeed, with a total power capacity of 11 kW at 400 V and 16 A. In addition, a rotatable display and USB-A mass configuration streamline deployment, firmware updates, and data logging for audit-ready energy reporting.
Yes. It is purpose-built for IT racks in data centers and server rooms, offering per-slot energy data, centralized monitoring, and remote management via HTTP/HTTPS, SSH, Telnet, and NTP. Its compact, zero-U installation fits VX IT frames, preserving space while delivering scalable power distribution and energy visibility across growing IT environments.
The DK 7979.533 PDU metered+ aligns with CE marking and the EMC Directive 2014/30/EU. It adheres to EN 62368-1 for safety, and its electrical and network capabilities are designed to meet regulatory requirements for IT power distribution devices, enabling compliant deployment in professional data centers and server rooms.
Remote management via web interfaces plus SSH and NTP reduces on-site visits, while USB mass configuration and firmware updates streamline maintenance. Per-slot energy data supports accurate chargeback, capacity planning, and energy cost reductions, delivering a favorable total cost of ownership and improved uptime for IT infrastructure.
