Rittal DK 7979.537 PDU metered+ - Slot energy metering
Part Number: 7979537
Manufacturer
Rittal
Part number
7979537
Category
Alt Part Number
DK 7979.537
Quick Summary
PDU metered+ by Rittal delivers compact, high-end power distribution for IT racks with per-slot energy measurement. For IT engineers and data-center managers, the challenge of tracking real-time power use per outlet can obscure capacity planning and drive overprovisioning. The unit complies with CE marking, EN 62368-1 safety standards, and EMC Directive 2014/30/EU, ensuring regulatory readiness. In practice, it enables energy transparency, remote configuration via USB and web interfaces, and scalable expansion within VX IT enclosure frames, supporting efficient IT infrastructure management. Beyond compliance, the rugged aluminum enclosure and modular design optimize space and installation in critical networks.
Product Information
Extended Description

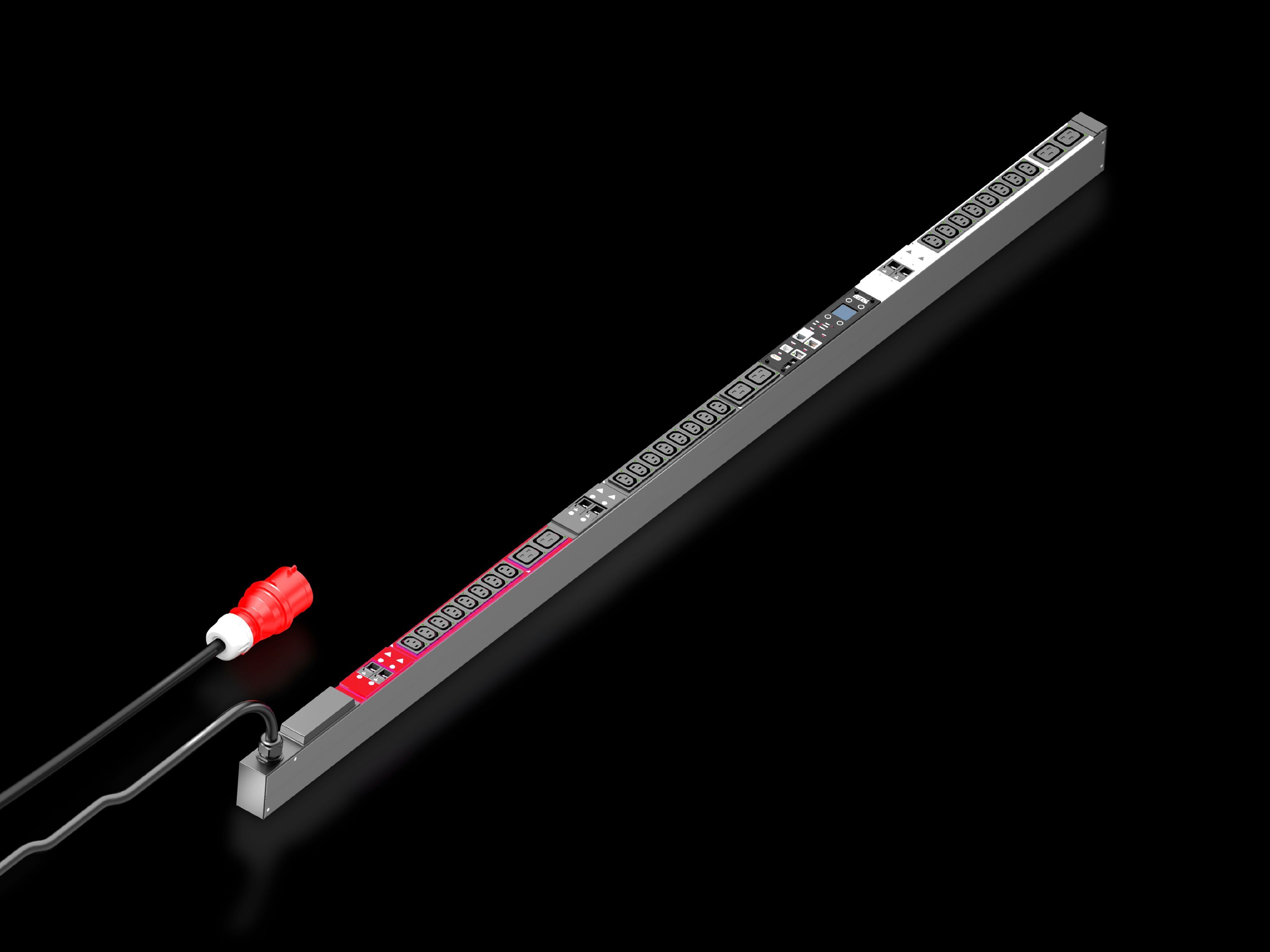

7979537 Rittal: DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x1740x70 mm, IEC 60 320: 24x C13, 6x C19
Article number
DK 7979.537
Product description
High-end power distribution in a compact design for IT network and server racks. With power measurement per individual outgoing slot.
Benefits
For vertical mounting, it may be attached in the zero-U space of the Rittal VX IT or TS IT rack with no need for tools
Technical specifications
Display/controller unit in the PDU enclosure rotatable through 180° and replaceable
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Residual current measurement (type B) per infeed/phase/fuse | Monitoring of the optionally available overvoltage protection | CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors | Other enclosure colours are available
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,740 mm
No. of sockets and type
24 x C13 / 6 x C19
Sockets
24 x C 13 | 6 x C 19
Rated operating voltage
400 V (AC)
Rated current (max.)
32 A
Power consumption
22 kW
Infeeds
Qty.: 1 | Phases per infeed: 3~
Length of connection cable
3 m
Type of electrical connection
CEE
Interfaces
USB 2.0 port (USB-A) for mass configuration, firmware updates & data logging
Number RJ45 ports for sensor units max
6
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Protocols
Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-20 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 2,000 mm | Enclosure type: VX IT 19" mounting angles: ≥ 2,000 mm
Packs of
1 pc(s).
Weight/pack
6.78 kg
Customs tariff number
85369095
EAN
4028177948433
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x1740x70 mm, IEC 60 320: 24x C13, 6x C19
Feature energy measurement per output slot → Business Impact: granular power data enables precise capacity planning and targeted cooling strategies, reducing energy waste and avoiding overloads. Application: ideal for IT racks and data centers where outlet-level usage matters and finance teams require verifiable energy metrics. Feature 24 x C13 / 6 x C19 sockets → Business Impact: broad outlet compatibility supports mixed server, storage, and network loads, improving rack density without external adapters. Application: streamer data center deployments and mixed-load cabinet configurations. Feature 400 V AC, 32 A rated current → Business Impact: supports up to 22 kW total load with robust headroom, delivering reliable distribution for high-density IT deployments. Application: enterprise data centers and hyperconverged infrastructures. Feature rotatable display/controller (180°) and USB 2.0 interface → Business Impact: easy local readouts and fast mass configuration plus firmware updates, reducing maintenance time. Application: remote IT cabinets and field deployments requiring quick commissioning. Feature compatibility with VX IT/TS IT frames (zero-U mounting) → Business Impact: tool-free installation in constrained spaces improves rack space utilization. Application: vertical mounting in racks with minimal footprint. Feature options: overvoltage protection (Type 3 with interchangeable arresters), residual current measurement (Type B), CAN bus sensors for ambient monitoring → Business Impact: comprehensive protection and monitoring for compliance and reliability. Application: critical data centers needing proactive risk management and environmental sensing. Feature protocols and security: Web server (HTTP/HTTPS/SSL), SSH, Telnet, NTP; USB mass configuration → Business Impact: secure remote management and reliable time synchronization; reduces operational risk. Application: distributed IT infrastructure with centralized management needs. Feature Operating conditions: 5 °C to 50 °C, 10–95% humidity, 1740 mm length, 44 mm width, 70 mm height → Business Impact: rugged, all-weather operation suitable for harsh environments. Application: data-center closets, telecom rooms, and industrial IT installations.
Get a Quick Quote for a Rittal 7979537
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979537?
Enquire Now
FAQs
Yes. The DK PDU metered+ is designed for vertical mounting in VX IT enclosure frames and can be installed in zero-U spaces. It supports VX IT frames and TS IT frames with appropriate mounting angles and is supplied as a complete assembly, including the necessary assembly parts for a quick, tool-free installation. This makes it ideal for high-density IT racks where space is at a premium.
The PDU provides energy measurement per output slot, with measurement options per phase or infeed. Data is accessible via the USB 2.0 interface for mass configuration and firmware updates, and through the built-in web server (HTTP/HTTPS) for remote monitoring. This enables granular visibility into outlet-level consumption and supports efficient capacity planning.
The DK 7979.537 operates at 400 V AC with a rated current of 32 A and accommodates 24 C13 sockets plus 6 C19 sockets, totaling a 22 kW maximum load. Infeed is 1 with three phases, and a 3 m connection cable uses a CEE connector. Optional protections include Type 3 overvoltage with interchangeable arresters and residual current measurement (Type B).
This PDU meets CE marking requirements and EN 62368-1 safety standards, with compliance to the EMC Directive 2014/30/EU. These certifications ensure regulatory readiness for IT environments and help assure safety, reliability, and interoperability in professional data centers and industrial IT applications.
Zero-U mounting in VX IT frames reduces installation time and frees up valuable rack space, while the rotatable display and USB/web interfaces simplify commissioning and ongoing maintenance. Regular firmware updates, remote monitoring, and energy transparency contribute to faster troubleshooting, lower energy waste, and a measurable return on investment through improved capacity planning and operational efficiency.
