Rittal DK 7979.615 PDU with Local Measurement - EMC
Part Number: 7979615
Manufacturer
Rittal
Part number
7979615
Category
Alt Part Number
DK 7979.615
Quick Summary
PDU with local measurement powers data-center monitoring in modern server racks. Too little visibility into per-phase load can trigger unexpected downtime and inefficiencies. CE conformity backed by the EMC directive 2014/30/EU ensures compliance across markets; ETIM 9 EC002762 supports standardized product data. This configuration provides reliable power monitoring with per-phase visibility, helping data centers, colocation facilities, and enterprise server rooms optimize energy usage, improve capacity planning, and reduce operational risk.
Product Information
Extended Description

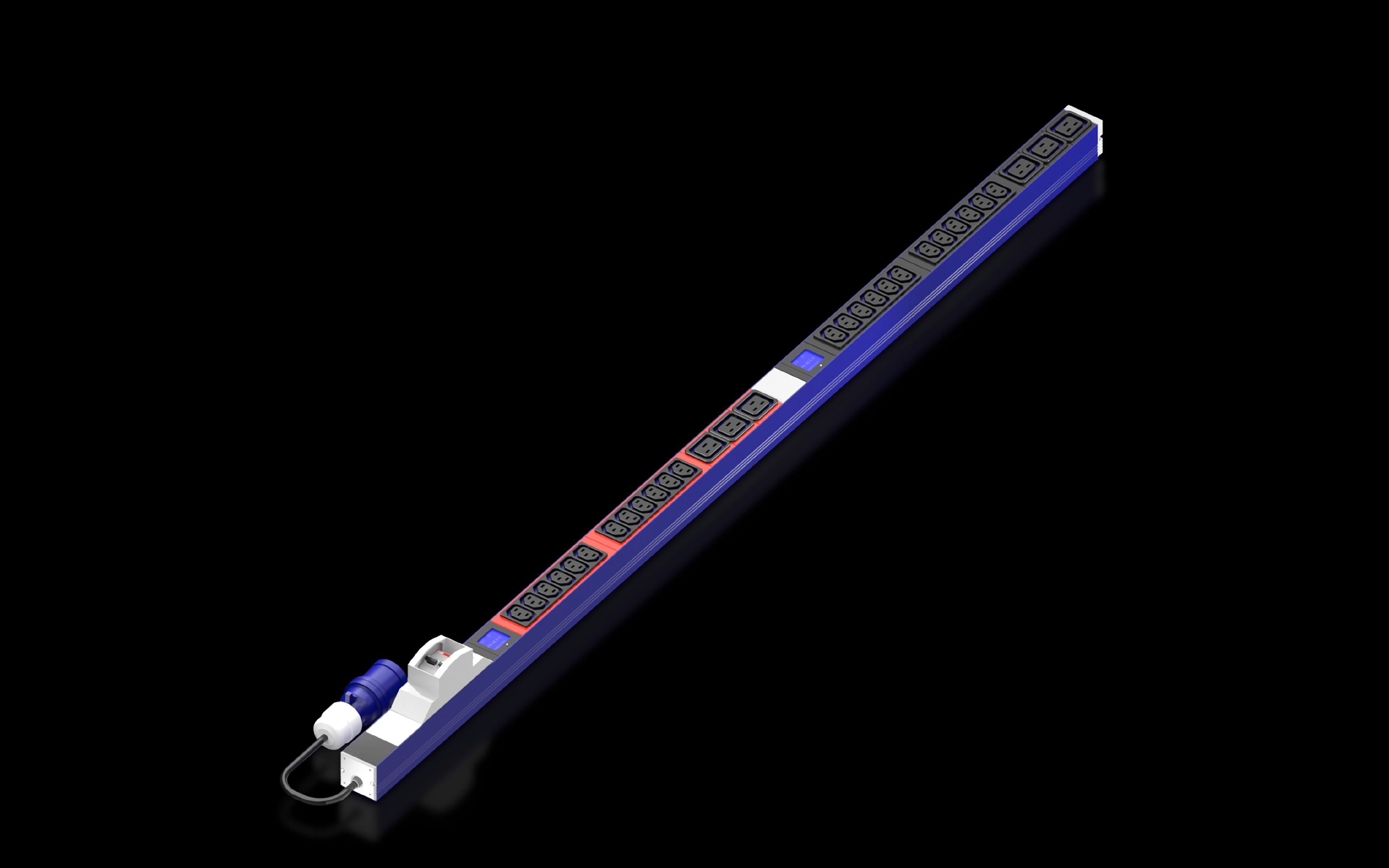

7979615 Rittal: PDU with local power measurement, blue version, 24x C13, 6x C19, 2-pole with earthing contact, black, WxHxD: 44x1308x47 mm
Article number
DK 7979.615
Design
Blue
Product description
The PDU with local power measurement is equipped with one display per phase (two displays in total) and supports superior phase loads in the colocation data centre.
Benefits
Integral measurement of current (A); active power (kW); voltage (V); frequency (Hz); power (kWh) and phase angle (°)
Technical specifications
Error-tolerant PDU power supply redundant across all phases
Function principle
Measurement per phase or infeed
Material
Aluminium, spray-finished, blue, similar to RAL 5010 | Cover: Plastic PA 6 GF30, black, similar to RAL 9005
Supply includes
PDU with local measurement, 32 A, 1-phase, blue | 2 angle brackets
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width: 44 mm | Depth: 47 mm | Length: 1,308 mm
No. of sockets and type
24 x C13 / 6 x C19
Sockets
24 x C 13 | 6 x C 19 | 2-pole with protective contact, black
Rated operating voltage
230 V, 50 Hz/60 Hz
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC directive 2014/30/EU
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Storage temperature range
-5 °C...60 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: TX Colocation Rack: ≥ 1,800 mm
Packs of
1 pc(s).
Customs tariff number
85366990
EAN
4028177976269
ETIM 9
EC002762
Product description
PDU with local power measurement, blue version, 24x C13, 6x C19, 2-pole with earthing contact, black, WxHxD: 44x1308x47 mm
Feature: Per-phase or infeed measurement provides granular current, voltage, power, energy, and phase angle data. Business Impact: Enables precise load balancing, reduced peak demand charges, and faster issue detection. Application: Colocation and enterprise data centers seeking tighter energy management. Feature: Two displays (one per phase) deliver real-time visibility without external meters. Business Impact: Improves operator workflows, lowers data-entry errors, and supports proactive capacity planning. Application: VX IT enclosure frames and TX Colocation Rack deployments.Feature: 32 A, 230 V supply with 24 x C13 and 6 x C19 sockets. Business Impact: Supports high-density IT equipment while maintaining reliable power distribution and simplicity of cabling. Application: Modern server racks in data centers and colocation facilities.Feature: Redundant, error-tolerant PDU power supply across all phases. Business Impact: Increases uptime and resilience for critical workloads and reduces maintenance interventions. Application: Uptime-sensitive IT environments and distributed workloads.Feature: Durable blue aluminium body with a black PA6 GF30 cover and a 3 m connection cable (CEE). Business Impact: Ensures robust field service installation, easy routing, and long service life. Application: Rack-mounted deployments in demanding IT environments with stringent mounting space constraints.
Get a Quick Quote for a Rittal 7979615
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979615?
Enquire Now
FAQs
The unit provides per-phase or infeed measurements of current (A), active power (kW), voltage (V), frequency (Hz), energy (kWh), and phase angle (°) via two displays, enabling granular visibility at the rack level and simplifying energy accounting for IT workloads.
Yes. The PDU is designed to fit enclosure frames ≥ 1,800 mm (VX IT) and TX Colocation Racks ≥ 1,800 mm, ensuring straightforward integration into standard data-center rack configurations.
The unit provides 24 x C13 and 6 x C19 outlets, plus 2-pole with protective contact, and uses a 3 m CEE connection, delivering a total rated current of 32 A at 230 V.
The product complies with CE conformity enabled by the EMC directive 2014/30/EU, supporting market access across regions; ETIM 9 EC002762 classification further standardizes product data for procurement and integration.
Take advantage of the 3 m connection cable, per-phase monitoring, and redundant power supply to reinforce reliability, optimize load distribution, and reduce maintenance overhead in IT racks and colocation deployments.
