Rittal DK 7979.615 PDU with Local Measurement - EMC
Part Number: 7979616
Manufacturer
Rittal
Part number
7979616
Category
Alt Part Number
DK 7979.616
Quick Summary
PDU with local measurement powers data-center monitoring in modern server racks. Too little visibility into per-phase load can trigger unexpected downtime and inefficiencies. CE conformity backed by the EMC directive 2014/30/EU ensures compliance across markets; ETIM 9 EC002762 supports standardized product data. This configuration provides reliable power monitoring with per-phase visibility, helping data centers, colocation facilities, and enterprise server rooms optimize energy usage, improve capacity planning, and reduce operational risk.
Product Information
Extended Description

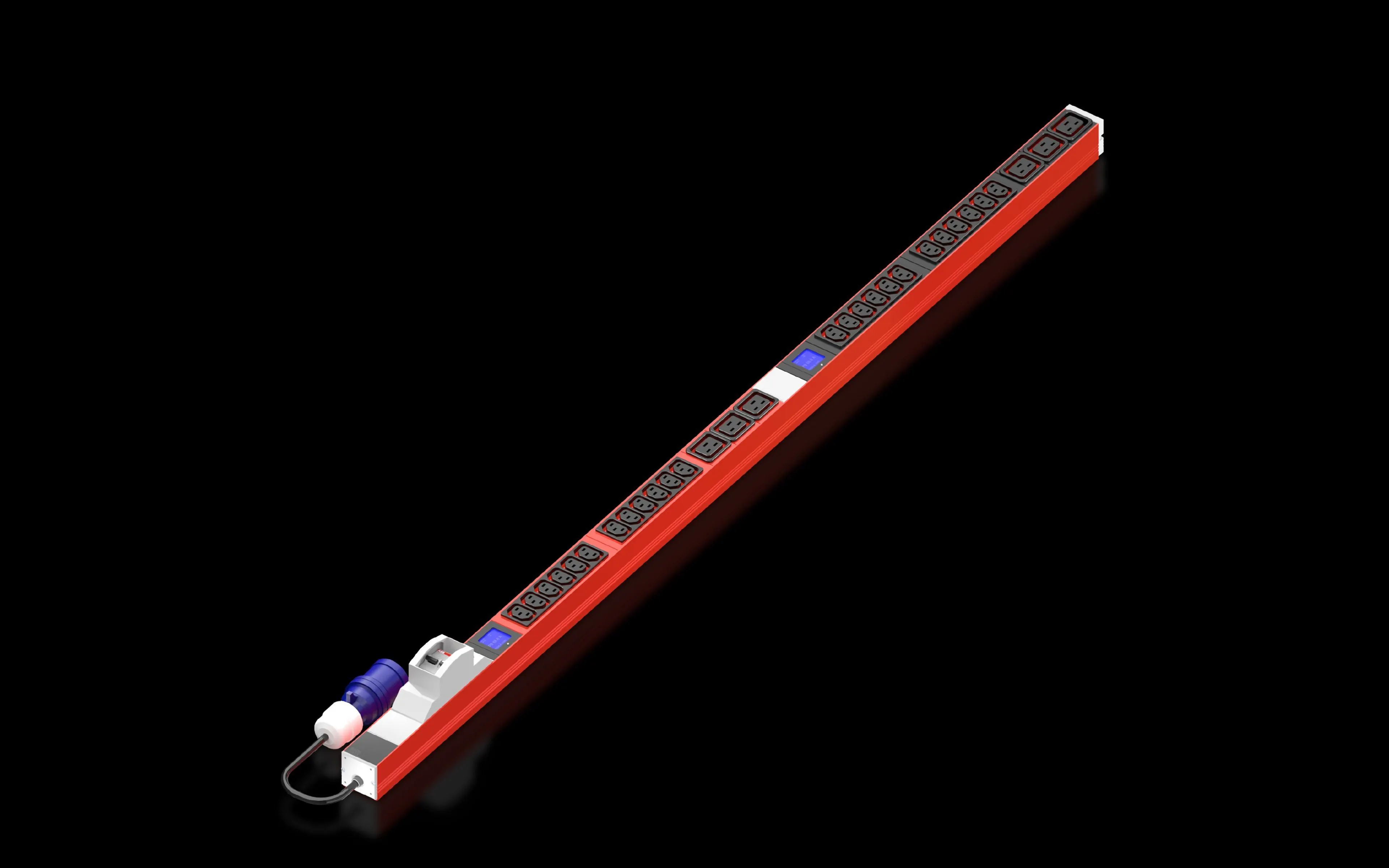

7979616 Rittal: PDU with local power measurement, red version, 24x C13, 6x C19, 2-pole with earthing contact, black, WxHxD: 44x1308x47 mm
Article number
DK 7979.616
Design
Red
Product description
null
Benefits
Integral measurement of current (A); active power (kW); voltage (V); frequency (Hz); power (kWh) and phase angle (°)
Technical specifications
Error-tolerant PDU power supply redundant across all phases
Function principle
Power measurement per phase or infeed
Material
Aluminium, spray-finished, red, similar to RAL 3020 | Cover: Plastic PA 6 GF30, black, similar to RAL 9005
Supply includes
PDU with local measurement, 32 A, 1-phase, red | 2 angle brackets
Measurement functions, description
Measurement per phase or infeed
Dimensions
Width: 44 mm | Depth: 47 mm | Length: 1,308 mm
No. of sockets and type
24 x C13 / 6 x C19
Sockets
24 x C 13 | 6 x C 19 | 2-pole with protective contact, black
Rated operating voltage
230 V, 50 Hz/60 Hz
Rated current (max.)
32 A
Power consumption
7.4 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC directive 2014/30/EU
Operating temperature range
5 °C...45 °C
Ambient humidity (non-condensing)
5...95 %
Storage temperature range
-5 °C...60 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: TX Colocation Rack: ≥ 1,800 mm
Packs of
1 pc(s).
Customs tariff number
85366990
EAN
4028177976252
ETIM 9
EC002762
Product description
PDU with local power measurement, red version, 24x C13, 6x C19, 2-pole with earthing contact, black, WxHxD: 44x1308x47 mm
Feature: Per-phase or infeed measurement provides granular current, voltage, power, energy, and phase angle data. Business Impact: Enables precise load balancing, reduced peak demand charges, and faster issue detection. Application: Colocation and enterprise data centers seeking tighter energy management. Feature: Two displays (one per phase) deliver real-time visibility without external meters. Business Impact: Improves operator workflows, lowers data-entry errors, and supports proactive capacity planning. Application: VX IT enclosure frames and TX Colocation Rack deployments.Feature: 32 A, 230 V supply with 24 x C13 and 6 x C19 sockets. Business Impact: Supports high-density IT equipment while maintaining reliable power distribution and simplicity of cabling. Application: Modern server racks in data centers and colocation facilities.Feature: Redundant, error-tolerant PDU power supply across all phases. Business Impact: Increases uptime and resilience for critical workloads and reduces maintenance interventions. Application: Uptime-sensitive IT environments and distributed workloads.Feature: Durable blue aluminium body with a black PA6 GF30 cover and a 3 m connection cable (CEE). Business Impact: Ensures robust field service installation, easy routing, and long service life. Application: Rack-mounted deployments in demanding IT environments with stringent mounting space constraints.
Get a Quick Quote for a Rittal 7979616
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979616?
Enquire Now
FAQs
The unit provides per-phase or infeed measurements of current (A), active power (kW), voltage (V), frequency (Hz), energy (kWh), and phase angle (°) via two displays, enabling granular visibility at the rack level and simplifying energy accounting for IT workloads.
Yes. The PDU is designed to fit enclosure frames ≥ 1,800 mm (VX IT) and TX Colocation Racks ≥ 1,800 mm, ensuring straightforward integration into standard data-center rack configurations.
The unit provides 24 x C13 and 6 x C19 outlets, plus 2-pole with protective contact, and uses a 3 m CEE connection, delivering a total rated current of 32 A at 230 V.
The product complies with CE conformity enabled by the EMC directive 2014/30/EU, supporting market access across regions; ETIM 9 EC002762 classification further standardizes product data for procurement and integration.
Take advantage of the 3 m connection cable, per-phase monitoring, and redundant power supply to reinforce reliability, optimize load distribution, and reduce maintenance overhead in IT racks and colocation deployments.
