Rittal DK 7979.615 PDU with Local Measurement - EMC
Part Number: 7979711
Manufacturer
Rittal
Part number
7979711
Category
Alt Part Number
DK 7979.711
Quick Summary
PDU with local measurement powers data-center monitoring in modern server racks. Too little visibility into per-phase load can trigger unexpected downtime and inefficiencies. CE conformity backed by the EMC directive 2014/30/EU ensures compliance across markets; ETIM 9 EC002762 supports standardized product data. This configuration provides reliable power monitoring with per-phase visibility, helping data centers, colocation facilities, and enterprise server rooms optimize energy usage, improve capacity planning, and reduce operational risk.
Product Information
Extended Description

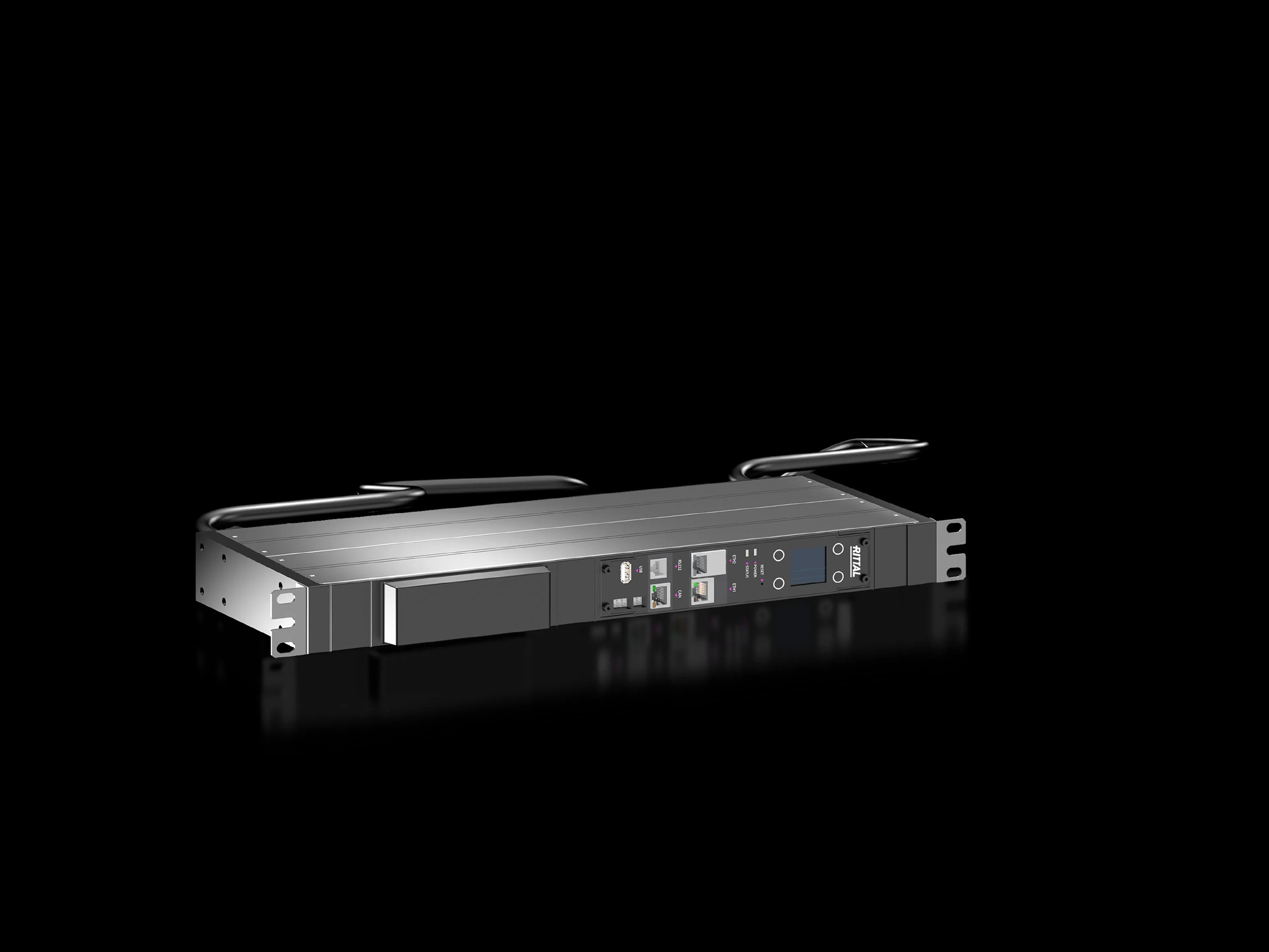

7979711 Rittal: DK RCM measuring module – inline meter, autonomous energy acquisition unit, for PDU basic or modular PDU without measuring functions, 1 U, 482.6 mm (19"), incl. sensor interface, rated power: 3.7 kW, rated current: 16 A, 1~, connection type: CEE connector/coupling, connection cable / length: H05VV F3G2.5 / 1 m, extruded aluminium section, anodised, RAL 9005
Article number
DK 7979.711
Design
16 A / single-phase
Product description
Autonomous energy metering unit (including differential current monitoring) in a 1 U/19" form factor. The unit is incorporated into the supply lead to the equipment, a PDU basic or a modular PDU without measurement function. All key electrical characteristics are logged in the same way as with a PDU metered. Additionally, the measurement module features an integral differential current measurement (type B) for fault current monitoring of the connected equipment. Consumption data is conveniently retrieved via a network interface or locally via a TFT display. Additionally, all the PDU metered interfaces, e.g. for connecting external sensors and smart handle systems, are available.
Benefits
The ideal solution for upgrading existing installations which lack modern measurement functions
Material
Extruded aluminium section, anodised
General colour
RAL 9005
Colour
RAL 9005
Options
CMC III CAN bus sensors may be connected for ambient monitoring, max. 16 sensors
Power consumption
3.7 kW
Type of electrical connection
CEE connector/coupling
Phases per infeed
1~
Rated current (max.)
16 A
Directives
Low Voltage Directive 2014/35/EU
Standards
EN 62368-1
Dimensions
Width: 450 mm | Height: 144 mm | Depth: 44 mm
Interfaces
Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE)
Input cable connection (type/length)
H05VV-F3G2.5, 2 m
Output cable connection (type/length)
H05VV-F3G2.5, 1,2 m
Packs of
1 pc(s).
Customs tariff number
85369095
EAN
4028177948488
ETIM 9
EC002762
ECLASS 8.0
27060402
Product description
DK RCM measuring module – inline meter, autonomous energy acquisition unit, for PDU basic or modular PDU without measuring functions, 1 U, 482.6 mm (19"), incl. sensor interface, rated power: 3.7 kW, rated current: 16 A, 1~, connection type: CEE connector/coupling, connection cable / length: H05VV F3G2.5 / 1 m, extruded aluminium section, anodised, RAL 9005
Feature: Per-phase or infeed measurement provides granular current, voltage, power, energy, and phase angle data. Business Impact: Enables precise load balancing, reduced peak demand charges, and faster issue detection. Application: Colocation and enterprise data centers seeking tighter energy management. Feature: Two displays (one per phase) deliver real-time visibility without external meters. Business Impact: Improves operator workflows, lowers data-entry errors, and supports proactive capacity planning. Application: VX IT enclosure frames and TX Colocation Rack deployments.Feature: 32 A, 230 V supply with 24 x C13 and 6 x C19 sockets. Business Impact: Supports high-density IT equipment while maintaining reliable power distribution and simplicity of cabling. Application: Modern server racks in data centers and colocation facilities.Feature: Redundant, error-tolerant PDU power supply across all phases. Business Impact: Increases uptime and resilience for critical workloads and reduces maintenance interventions. Application: Uptime-sensitive IT environments and distributed workloads.Feature: Durable blue aluminium body with a black PA6 GF30 cover and a 3 m connection cable (CEE). Business Impact: Ensures robust field service installation, easy routing, and long service life. Application: Rack-mounted deployments in demanding IT environments with stringent mounting space constraints.
Get a Quick Quote for a Rittal 7979711
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979711?
Enquire Now
FAQs
The unit provides per-phase or infeed measurements of current (A), active power (kW), voltage (V), frequency (Hz), energy (kWh), and phase angle (°) via two displays, enabling granular visibility at the rack level and simplifying energy accounting for IT workloads.
Yes. The PDU is designed to fit enclosure frames ≥ 1,800 mm (VX IT) and TX Colocation Racks ≥ 1,800 mm, ensuring straightforward integration into standard data-center rack configurations.
The unit provides 24 x C13 and 6 x C19 outlets, plus 2-pole with protective contact, and uses a 3 m CEE connection, delivering a total rated current of 32 A at 230 V.
The product complies with CE conformity enabled by the EMC directive 2014/30/EU, supporting market access across regions; ETIM 9 EC002762 classification further standardizes product data for procurement and integration.
Take advantage of the 3 m connection cable, per-phase monitoring, and redundant power supply to reinforce reliability, optimize load distribution, and reduce maintenance overhead in IT racks and colocation deployments.
