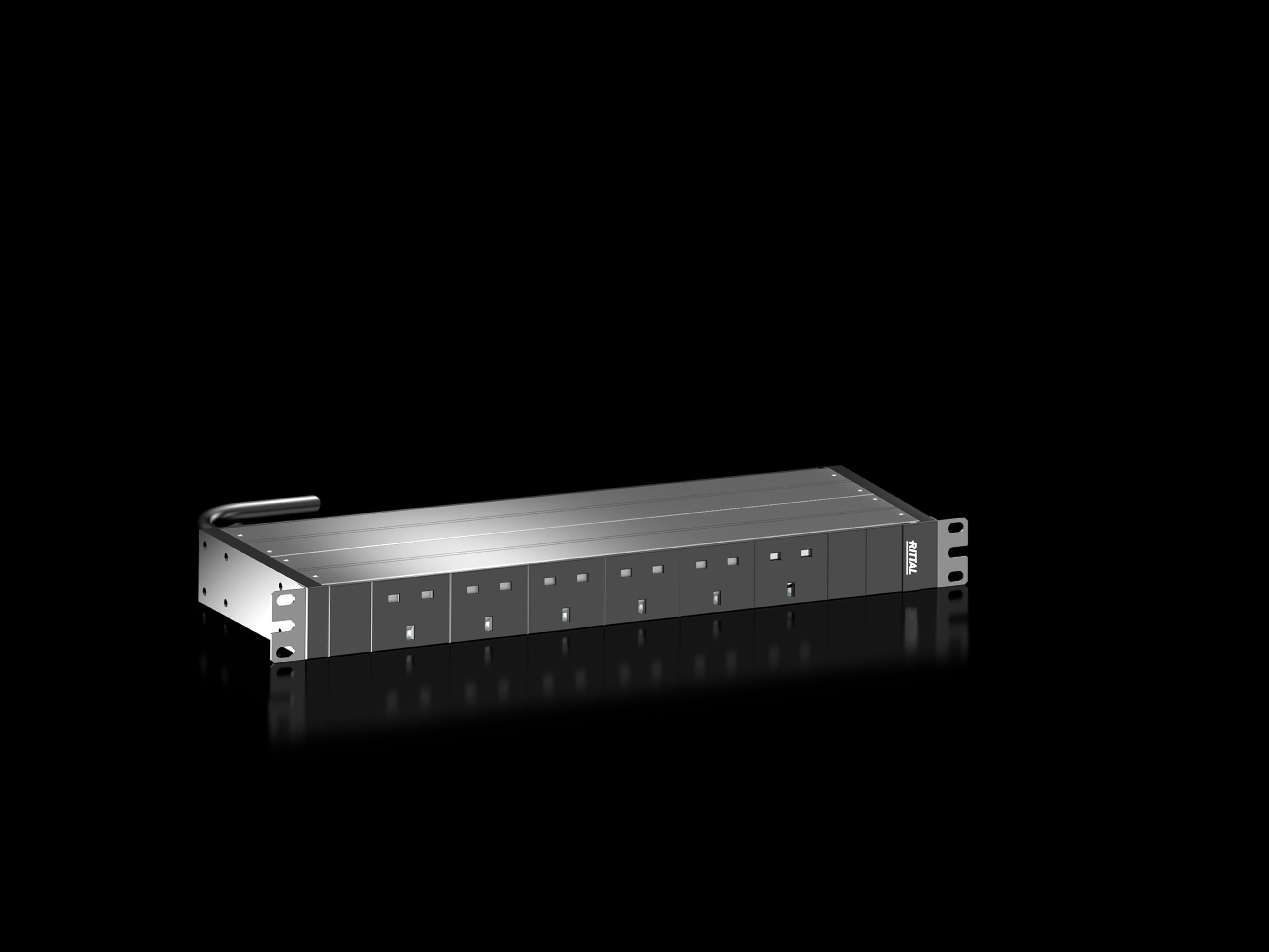

Rittal 7979801 PDU UK basic - EN 62368-1, EMC
Part Number: 7979801
Manufacturer
Rittal
Part number
7979801
Category
Alt Part Number
DK 7979.801
Quick Summary
Rittal 7979801 PDU UK basic is a compact power distribution unit for data centers and IT racks. It solves space constraints, cable clutter, and limited visibility into power usage. The design supports EN 62368-1 and the EMC Directive 2014/30/EU with CE marking for reliable operation in modern IT environments. Energy measurement and monitoring options help IT teams verify load, contain energy costs, and optimize cooling efficiency. Compatible with VX IT enclosure frames and 800 mm wide configurations, it streamlines installation and future capacity planning while maintaining robust safety and compliance. This compact PDU also complements UK electrical standards with a 3 m connection lead and six BS 1363 outlets to fit typical rack ecosystems.
Product Information
Extended Description
7979801 Rittal: DK PDU UK basic, compact basic power distribution, WHD 450x44x144 mm, 6xBS 1363, 230 V, 1~, 13 A
Article number
DK 7979.801
Design
482.6 mm (19") version
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
Tool-free divider kit for VX IT
Technical specifications
Colour coding of phases and fuse circuits (L1=pink, L2=black, L3=white)
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Other enclosure colours are available
Dimensions
Height: 44 mm | Depth: 144 mm | Length: 450 mm
No. of sockets and type
6 x BS 1363
Sockets
6 x BS 1363
Rated current (max.)
13 A
Power consumption
3 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
UK
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-25 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 800 mm | Enclosure type: TX CableNet: ≥ 800 mm
Packs of
1 pc(s).
Weight/pack
2.8 kg
Customs tariff number
85366990
EAN
4028177948563
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU UK basic, compact basic power distribution, WHD 450x44x144 mm, 6xBS 1363, 230 V, 1~, 13 A
Feature: Compact WHD 450x44x144 mm design with 6x BS 1363 sockets and a 3 m UK lead. Business Impact: Maximizes rack space while delivering predictable, safe power to critical IT equipment. Application: Ideal for data centers and server rooms seeking efficient cable management and reliable access to outlets. Feature: Phase color coding (L1 pink, L2 black, L3 white) and 230 V, 1~, 13 A rating. Business Impact: Improves electrical safety and reduces mis-wiring risk during installation and maintenance. Application: IT racks with strict colour-coded power distribution practices. Feature: Material and construction (aluminium section, black anodised; plastic slots). Business Impact: Lightweight yet durable housing that resists wear in busy data-center environments. Application: VX IT enclosure integration and modular rack systems. Feature: Options for Type 3 overvoltage protection with interchangeable arresters and status monitoring. Business Impact: Enhanced surge protection with operational visibility, reducing the chance of equipment damage and downtime. Application: Critical edge and core IT deployments requiring proactive protection. Feature: Tool-free divider kit for VX IT. Business Impact: Speeds internal customization and improves maintenance efficiency without tools. Application: Rapid reconfiguration in growing IT deployments. Feature: Dimensions and compatibility with VX IT and TX enclosures (800 mm+). Business Impact: Simplifies integration with common AXIT rack footprints, enabling scalable deployments. Application: Standard data-center rack ecosystems and VX IT frame configurations.
Get a Quick Quote for a Rittal 7979801
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979801?
Enquire Now
FAQs
The 7979801 PDU UK basic is designed to fit VX IT enclosure frames (≥800 mm) and VX IT 19" mounting angles (≥800 mm), as well as TX CableNet configurations. It integrates with standard 19" racks and IT frames, simplifying deployment in data centers and server rooms.
It features 230 V, 1~, 13 A rating with a 3 kW maximum load. The unit provides 6x BS 1363 outlets on a 3 m UK connection lead, and uses a 482.6 mm (19") design footprint for easy rack mounting.
Yes. The DK PDU UK basic supports energy measurement and monitoring options, enabling load verification and power-cost control. It is engineered for IT network and server racks, delivering reliable power distribution with visibility for optimization.
The unit complies with EN 62368-1 and the EMC Directive 2014/30/EU, with CE marking. These certifications ensure electrical safety and EMI performance appropriate for IT environments, reducing compliance risk in data centers and enterprise installations.
A tool-free divider kit for VX IT and a 3 m connection lead simplify installation and future reconfigurations. With robust materials and protective design, the PDU minimizes downtime during upgrades and expansions while maintaining safe, organized power distribution.
