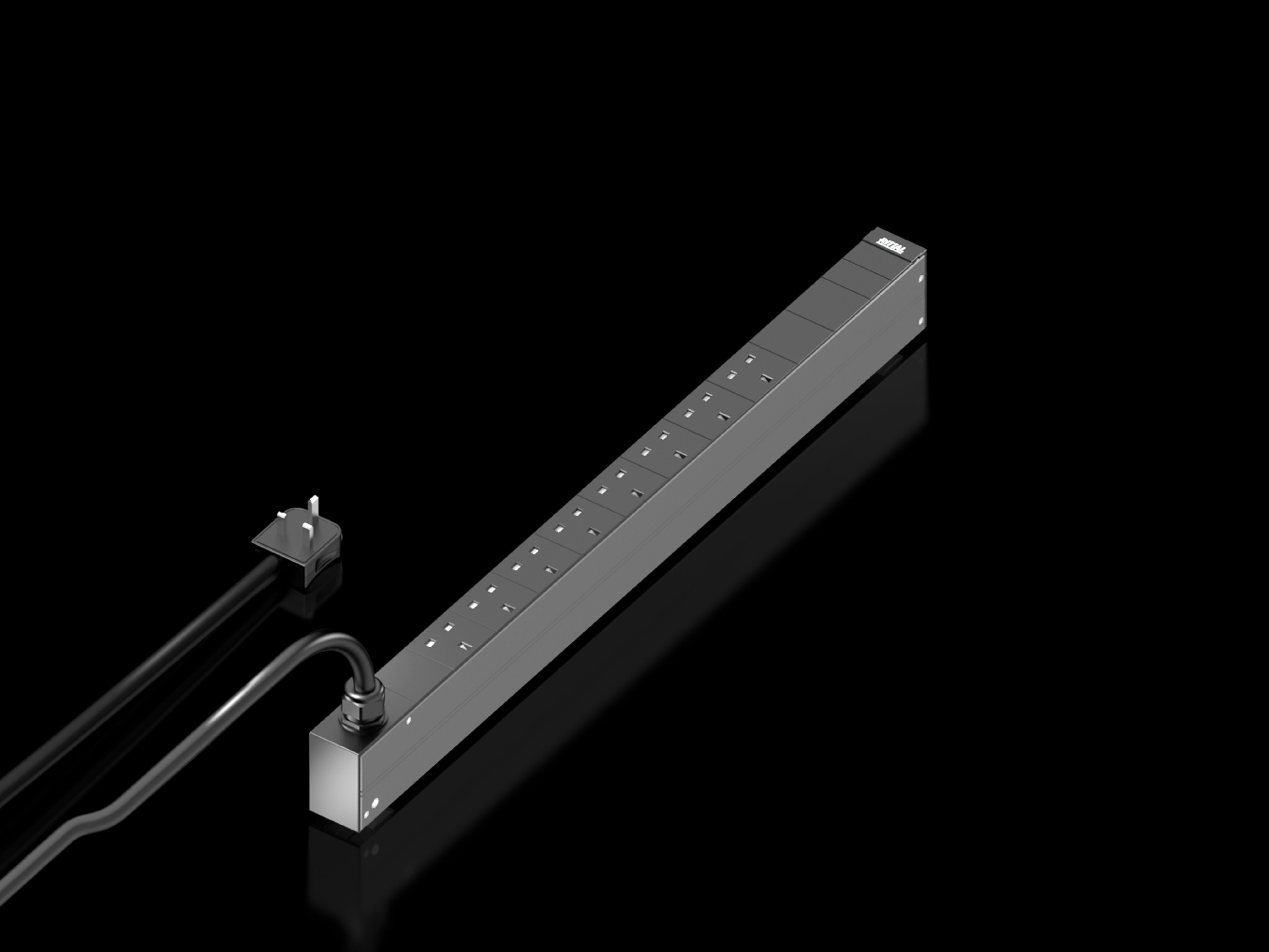

Rittal DK 7979.811 PDU UK basic - 8x BS 1363 EN 62368-1
Part Number: 7979811
Manufacturer
Rittal
Part number
7979811
Category
Alt Part Number
DK 7979.811
Quick Summary
DK PDU UK basic is a compact UK power distributor designed for IT racks and data centers. For engineers juggling dense cable layouts, this unit reduces clutter while protecting equipment from overload and accidental unplugging. It complies with EN 62368-1 safety standards and the EMC Directive 2014/30/EU, with performance certified for UK installations. Designed for scalable rack power management, it integrates energy monitoring and offers straightforward installation for VX IT and 19" mounting. With a 3 m connection cable, eight BS 1363 outlets, and a 13 A rating, it delivers reliable capacity in compact footprints. The included tool-free divider kit for VX IT supports fast, maintenance-friendly reconfiguration.
Product Information
Extended Description
7979811 Rittal: DK PDU UK basic, compact basic power distribution, WLD: 44x695x70 mm, 8xBS 1363, 230 V, 1~, 13 A
Article number
DK 7979.811
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
Tool-free divider kit for VX IT
Technical specifications
Colour coding of phases and fuse circuits (L1=pink, L2=black, L3=white)
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure |
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 695 mm
No. of sockets and type
8 x BS 1363
Sockets
8 x BS 1363
Rated current (max.)
13 A
Power consumption
3 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
UK
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-25 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 800 mm | Enclosure type: TX CableNet: ≥ 800 mm
Packs of
1 pc(s).
Weight/pack
2.78 kg
Customs tariff number
85366990
EAN
4028177948570
ETIM 9
EC002762
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU UK basic, compact basic power distribution, WLD: 44x695x70 mm, 8xBS 1363, 230 V, 1~, 13 A
Feature: compact footprint and integrated UK socket layout supports tight IT cabinet spacing. Business impact: saves valuable rack space and reduces cabling complexity, enabling cleaner deployments in data centers and server rooms. Application: IT networks, VX IT enclosures. Feature: rugged aluminium section with black anodising and plastic slots provides durable, lightweight construction. Business impact: improves rack sustainment and long-term reliability in IT environments. Application: VX IT frames and 800 mm enclosure variants. Feature: energy measurement and monitoring capabilities deliver real-time visibility into power usage. Business impact: supports chargeback, efficiency projects, and proactive capacity planning. Application: data centers, enterprise IT rooms. Feature: optional Type 3 overvoltage protection with interchangeable arresters and status monitoring. Business impact: enhances device protection and operational assurance in rack deployments. Application: mission-critical IT infrastructure. Feature: tool-free divider kit for VX IT simplifies field reconfiguration and expansion. Business impact: reduces maintenance time and downtime. Application: scalable rack power management. Feature: 3 m supply lead, 8x BS 1363 sockets, 13 A rating, and 230 V input meet common UK data center requirements. Business impact: minimizes rewiring, ensures compliant power distribution, and supports quick deployment in standard 19" racks. Application: UK-based server rooms and edge deployments.
Get a Quick Quote for a Rittal 7979811
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979811?
Enquire Now
FAQs
This PDU is designed to fit VX IT enclosure frames and 19" mounting systems with a width of 44 mm and depth of 70 mm. It uses a single UK infeed, 3 m connection cable, and 8x BS 1363 sockets rated at 13 A, making it suitable for standard UK data center layouts. The tool-free VX IT divider kit further simplifies in-field reconfiguration and expansion.
The DK 7979.811 offers an extensive range of management functions for energy measurement and monitoring. This enables visibility into real-time power usage, supports energy accounting and efficiency initiatives, and aids capacity planning. Optional integration with status monitoring helps keep critical IT loads within safe operating margins.
Yes. The unit adheres to EN 62368-1 safety standards and EMC Directive 2014/30/EU, ensuring compliance for UK installations. It is designed for operating temperatures from 5 °C to 50 °C and ambient humidity from 10% to 95% non-condensing, making it suitable for typical data center environments.
It is ideal for data centers, IT network racks, and free-standing server racks requiring reliable UK power distribution. With 8x BS 1363 sockets and a 13 A rating, it supports standard IT loads in VX IT enclosures and 19" rack configurations, delivering space-efficient power management in dense deployments.
The PDU ships with assembly parts and includes a tool-free divider kit for VX IT, facilitating quick rack reconfiguration. There is also the option to add Type 3 overvoltage protection with interchangeable arresters and status monitoring, providing enhanced surge protection and operational visibility in critical IT environments.
