Rittal 7979814 PDU UK basic - EN 62368-1
Part Number: 7979814
Manufacturer
Rittal
Part number
7979814
Category
Alt Part Number
DK 7979.814
Quick Summary

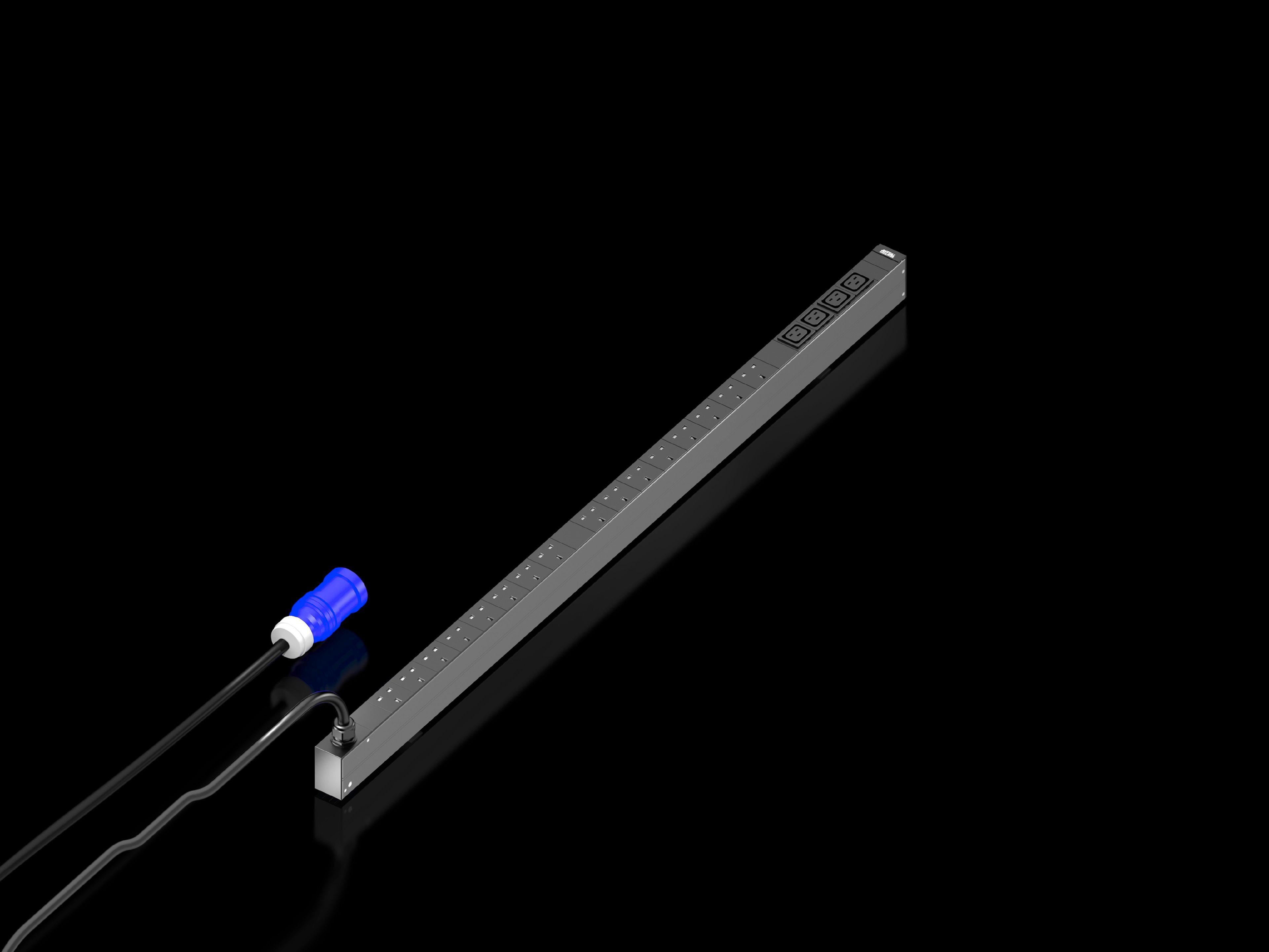

PDU UK basic power distributor from Rittal is a compact, reliable solution for data centres and free-standing IT racks. It eliminates common pain points like tangled cabling, uneven phase distribution, and limited visibility by delivering orderly wiring, clear phase color coding, and options for energy measurement. The unit carries CE marking, complies with the EMC Directive 2014/30/EU, and conforms to EN 62368-1 safety and performance standards, offering predictable behavior in busy IT environments. With VX IT enclosure compatibility and a focus on quick installation, the PDU supports scalable power distribution, improves uptime, and provides actionable data for cost control and capacity planning.
Product Information
Extended Description
7979814 Rittal: DK PDU UK basic, compact basic power distribution, WLD: 44x1295x70 mm, IEC 60 320: 4x C19, 16x BS 1363, 230 V, 1~, 16 A
Article number
DK 7979.814
Product description
High-end power distribution in a compact design for IT network and server racks. Depending on the design, they come with an extensive range of management functions for energy measurement and monitoring.
Benefits
Tool-free divider kit for VX IT
Technical specifications
Colour coding of phases and fuse circuits (L1=pink, L2=black, L3=white)
Material
Aluminium section, black anodised | Slots: Plastic
Supply includes
Assembly parts
Options
Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure | Type 3 overvoltage protection with interchangeable arresters while operational, with status monitoring, suitable for integration into PDU enclosure |
Dimensions
Width: 44 mm | Depth: 70 mm | Length: 1,295 mm
No. of sockets and type
16 x BS 1363 / 4 x C19
Sockets
16 x BS 1363 | 4 x C 19
Rated current (max.)
16 A
Power consumption
3.7 kW
Infeeds
Qty.: 1 | Phases per infeed: 1~
Length of connection cable
3 m
Type of electrical connection
CEE
Directives
EMC Directive 2014/30/EU
Standards
EN 62368-1
Operating temperature range
5 °C...50 °C
Ambient humidity (non-condensing)
10...95 %
Storage temperature range
-25 °C...70 °C
To fit
Enclosure type: VX IT enclosure frame: ≥ 1,800 mm | Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm | Enclosure type: TX CableNet: ≥ 1,800 mm
Packs of
1 pc(s).
Weight/pack
4.42 kg
Customs tariff number
85366990
EAN
4028177948600
ETIM 9
EC000330
ETIM 8
EC002762
ECLASS 8.0
27142604
Product description
DK PDU UK basic, compact basic power distribution, WLD: 44x1295x70 mm, IEC 60 320: 4x C19, 16x BS 1363, 230 V, 1~, 16 A
Feature: 16 A, 230 V single-phase supply with 4x C19 and 16x BS 1363 sockets. Business Impact: Supports IT and network gear with diverse connector types while maintaining safe, balanced power distribution. Application: Data centres and server racks needing mixed UK and IEC outlets. Feature: Compact WLD of 44x1295x70 mm. Business Impact: Maximizes rack footprint, enabling more equipment per enclosure. Application: VX IT and TX CableNet deployments in compact IT frames. Feature: 3 m connection cable and CEE plug. Business Impact: Flexible installation distances reduce cabling runs and installation time. Application: New builds and retrofits in dense IT environments. Feature: Phase color coding L1 pink, L2 black, L3 white. Business Impact: Minimizes wiring errors and improves safety. Application: High-density racks with multi-phase loads. Feature: Tool-free divider kit for VX IT. Business Impact: Speeds reconfiguration during maintenance without downtime. Application: Agile IT rack management. Feature: Energy measurement and monitoring options. Business Impact: Enables real-time power visibility, cost control, and capacity planning. Application: IT network operations and data centre energy management. Feature: Type 3 overvoltage protection with interchangeable arresters (optional). Business Impact: Enhanced protection for critical IT gear with status monitoring. Application: Enclosures requiring robust surge protection. Feature: EMC Directive compliance and EN 62368-1. Business Impact: Regulatory assurance and safer integration with agency-approved standards. Application: Compliance-focused deployments in enterprise IT. Feature: Weight 4.42 kg, 1-pack. Business Impact: Manageable mass for installation and cabinet handling. Application: Logistics and on-site deployment in VX IT frames.
Get a Quick Quote for a Rittal 7979814
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 7979814?
Enquire Now
FAQs
Install begins with confirming enclosure compatibility (VX IT frames ≥ 1,800 mm). The PDU ships with assembly parts and a tool-free divider kit for VX IT, enabling quick segmentation and reconfiguration without downtime. Mount the unit along the enclosure rail, connect the 3 m CEE power lead, and verify socket alignment (4x C19, 16x BS 1363) before energizing.
The PDU operates at 230 V single-phase with a rated current of 16 A. It provides 4x C19 and 16x BS 1363 sockets, powered by a 3 m CEE lead. The overall power capacity is up to 3.7 kW, suitable for IT servers, network gear, and related equipment in data centres.
This PDU complies with the EMC Directive 2014/30/EU and EN 62368-1 safety standards, delivering CE marking for regulated equipment. These certifications ensure predictable electromagnetic compatibility and safety performance in enterprise IT environments.
Yes. The PDU offers Type 3 overvoltage protection with interchangeable arresters while operational, including status monitoring. This option enhances protection for critical IT loads and allows integration into PDU enclosures while maintaining visibility of protection status.
The DK 7979.814 ships with assembly parts and a tool-free divider kit for VX IT, enabling fast, flexible configuration for multi-rack deployments. This simplifies installation, reduces downtime during reconfigurations, and supports scalable power distribution as rack layouts evolve.
